Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying No. 3 Solenoid Lock Plate Components & Bolts
    GM2011837Courtesy of GENERAL MOTORS CORP.
  1. Install the shift solenoid valve SLT to the valve body.
  2. Install the No. 1 solenoid lock plate to the shift solenoid valve SLT.
  3. Install the shift solenoid valve ST to the valve body.
  4. Install the No. 3 solenoid lock plate to the valve body with the 2 bolts (4, 6) and tighten to 11 N.m (8 lb ft).
  5. Fig 2: Locating Solenoid Lock Plate Bolt
    GM2011835Courtesy of GENERAL MOTORS CORP.
  6. Install the shift solenoid valve SLU onto the valve body.
  7. Install the solenoid lock plate with the bolt (1) and tighten to 11 N.m (8 lb ft).
  8. Fig 3: Locating Shift Solenoid Valve S2 Bolt
    GM2011833Courtesy of GENERAL MOTORS CORP.
  9. Install the shift solenoid valve S2 to the valve body with the bolt (1) and tighten to 11 N.m (8 lb ft).
  10. Fig 4: Locating Shift Solenoid Valve S1 Bolt
    GM2011831Courtesy of GENERAL MOTORS CORP.
  11. Install the shift solenoid valve S1 to the valve body with the bolt (1) and tighten to 11 N.m (8 lb ft).
  12. Fig 5: View Of Manual Valve & Valve Body
    GM2011830Courtesy of GENERAL MOTORS CORP.
  13. Coat the manual valve with ATF WS, and install it to the valve body.
  14. Fig 6: Identifying Transaxle Case 2ND Brake Gaskets
    GM2011829Courtesy of GENERAL MOTORS CORP.
  15. Coat 2 new transaxle case 2nd brake gaskets (1, 2) with ATF WS, and install them to the transaxle case.
  16. Fig 7: Identifying Check Ball Body & Check Ball Body Spring
    GM2011828Courtesy of GENERAL MOTORS CORP.
  17. Install the check ball body spring (1) and check ball body (2).
  18. Fig 8: Aligning Groove Of Manual Valve With Pin Of Manual Valve Lever
    GM2011844Courtesy of GENERAL MOTORS CORP.
  19. Align the groove of the manual valve with the pin of the manual valve lever.
  20. Install the valve body with the 13 bolts (1). Refer to Transmission General Specifications  for Bolt Length - 1.

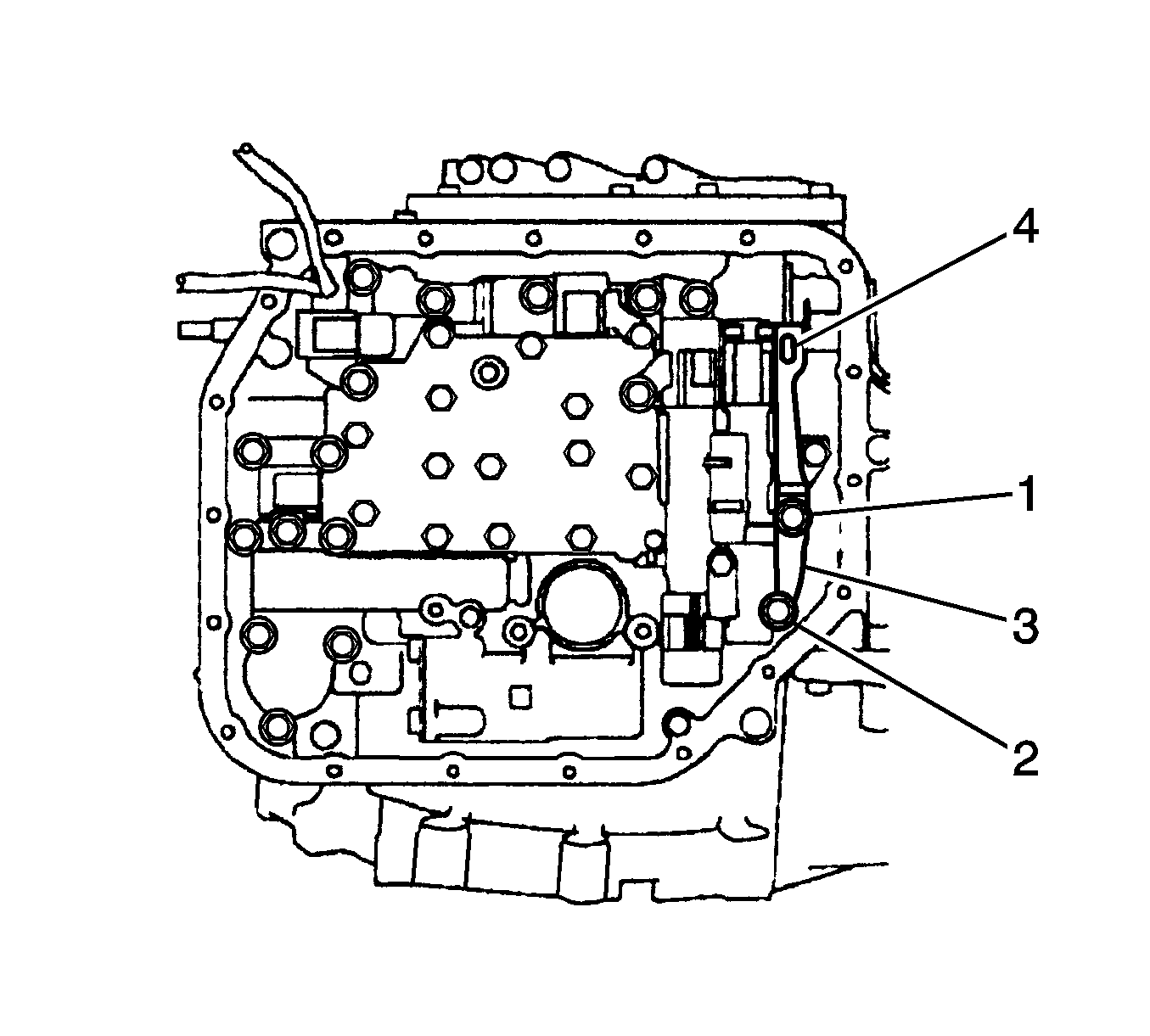

  21. Fig 9: Identifying Manual Detent Spring, Manual Detent Spring Cover & Bolts
    GM2011845Courtesy of GENERAL MOTORS CORP.
  22. Install the manual detent spring (4) and manual detent spring cover with the 2 bolts. Refer to Transmission General Specifications  for Bolt Length - 2.
  23. Check that the manual valve lever comes in contact with the center of the roller at the tip of the manual detent spring.
  24. Install the 15 bolts and tighten to 11 N.m (8 lb ft).
  25. Fig 10: Identifying Bolt, Lock Plate And ATF Temperature Sensor Connectors
    GM2011825Courtesy of GENERAL MOTORS CORP.
  26. Install the ATF temperature sensor with the lock plate and bolt (3). Tighten the bolt to 11 N.m (8 lb ft).
  27. Connect the 5 shift solenoid valve connectors.
  28. Fig 11: View Of Oil Strainer Gasket & Oil Strainer
    GM2011824Courtesy of GENERAL MOTORS CORP.
  29. Coat a new oil strainer gasket (1) with ATF WS and install it to the oil strainer.
  30. Fig 12: Locating Oil Strainer Bolts
    GM2011822Courtesy of GENERAL MOTORS CORP.
  31. Install the oil strainer with the 3 bolts (1) and tighten to 11 N.m (8 lb ft).
  32. Fig 13: Locating Oil Pan Magnets
    GM2011820Courtesy of GENERAL MOTORS CORP.
  33. Install the automatic transaxle oil pan sub-assembly.
  34. Install the 2 magnets (1) to the oil pan.
  35. Fig 14: View Of Oil Pan, Gasket & Bolts
    GM2011819Courtesy of GENERAL MOTORS CORP.
  36. Install the oil pan and a new gasket with the 19 bolts and tighten to 7.8 N.m (69 lb in).
  37. Connect the negative cable to the battery.
  38. Add the automatic transaxle fluid.
  39. Inspect for an automatic transaxle fluid leak.
  40. Install the left hand side engine under cover.
