Transmission Fluid Pump Disassemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Front Oil Pump Body O-Ring & Oil Pump
    GM2012739Courtesy of GENERAL MOTORS CORP.
  1. Remove the front oil pump body O-ring from the oil pump.
    2. Fig 2: View Of Stator Shaft Assembly
    GM2012740Courtesy of GENERAL MOTORS CORP.
  2. Remove the stator shaft assembly.
  3. Using a TORX socket wrench T30, remove the 10 TORX screws.

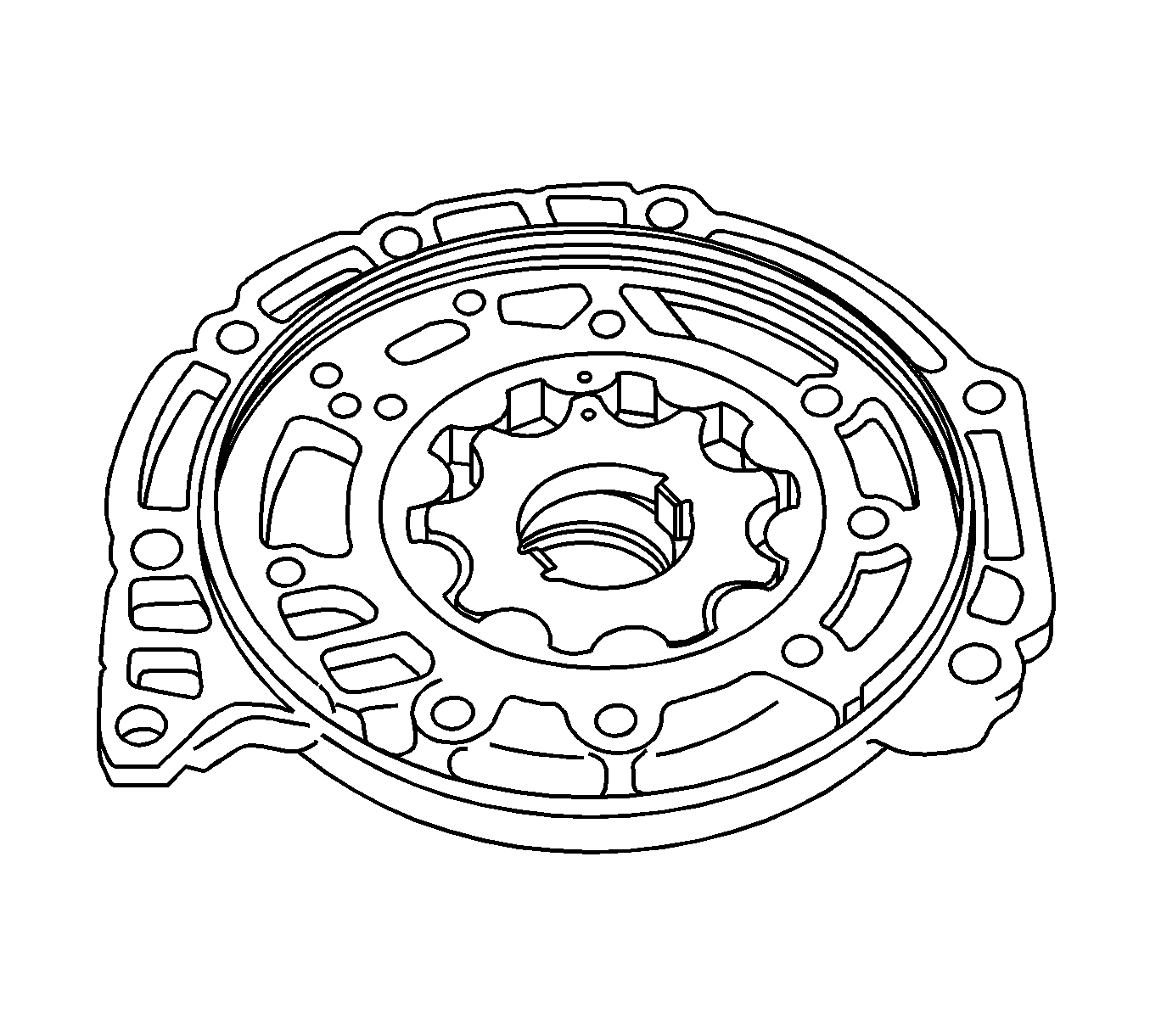

    4. Fig 3: View Of Front Oil Pump Drive Gear & Oil Pump Body
    GM2012742Courtesy of GENERAL MOTORS CORP.
  4. Remove the front oil pump drive gear from the oil pump body.

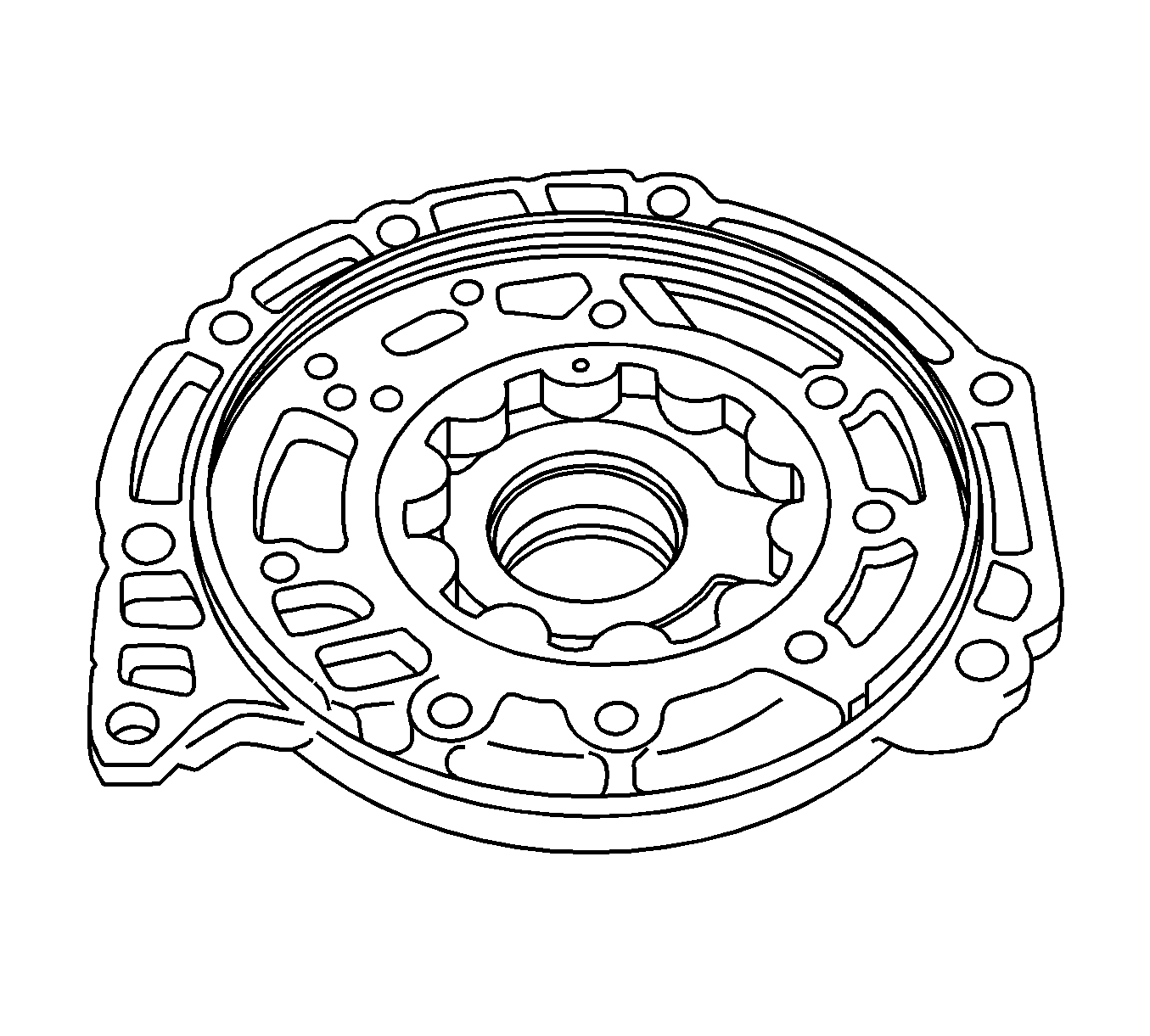

    5. Fig 4: View Of Front Oil Pump Driven Gear & Oil Pump Body
    GM2012743Courtesy of GENERAL MOTORS CORP.
  5. Remove the front oil pump driven gear from the oil pump body.

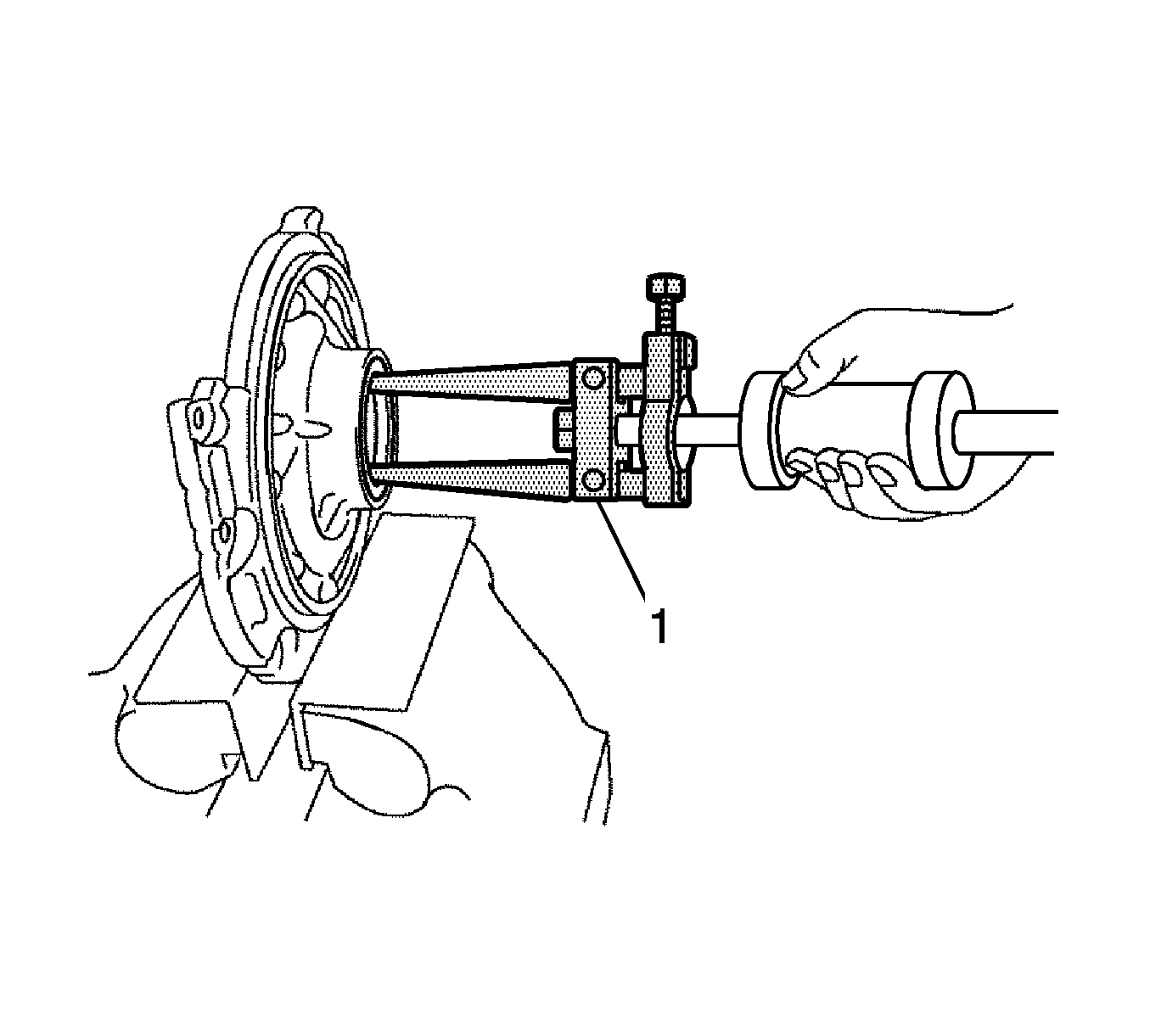

    6. Fig 5: Removing Front Oil Pump Oil Seal From Oil Pump Body Using A Slide Hammer
    GM2012744Courtesy of GENERAL MOTORS CORP.
  6. Using a slide hammer, remove the front oil pump oil seal from the oil pump body.
    7. Fig 6: Locating Clutch Drum Oil Seal Rings & Stator Shaft Assembly
    GM2012747Courtesy of GENERAL MOTORS CORP.
  7. Using a screwdriver, remove the 2 clutch drum oil seal rings (1) from the stator shaft assembly.
