Transmission Fluid Pump Assemble

WARNING: This page is about a different variant/trim than selected.

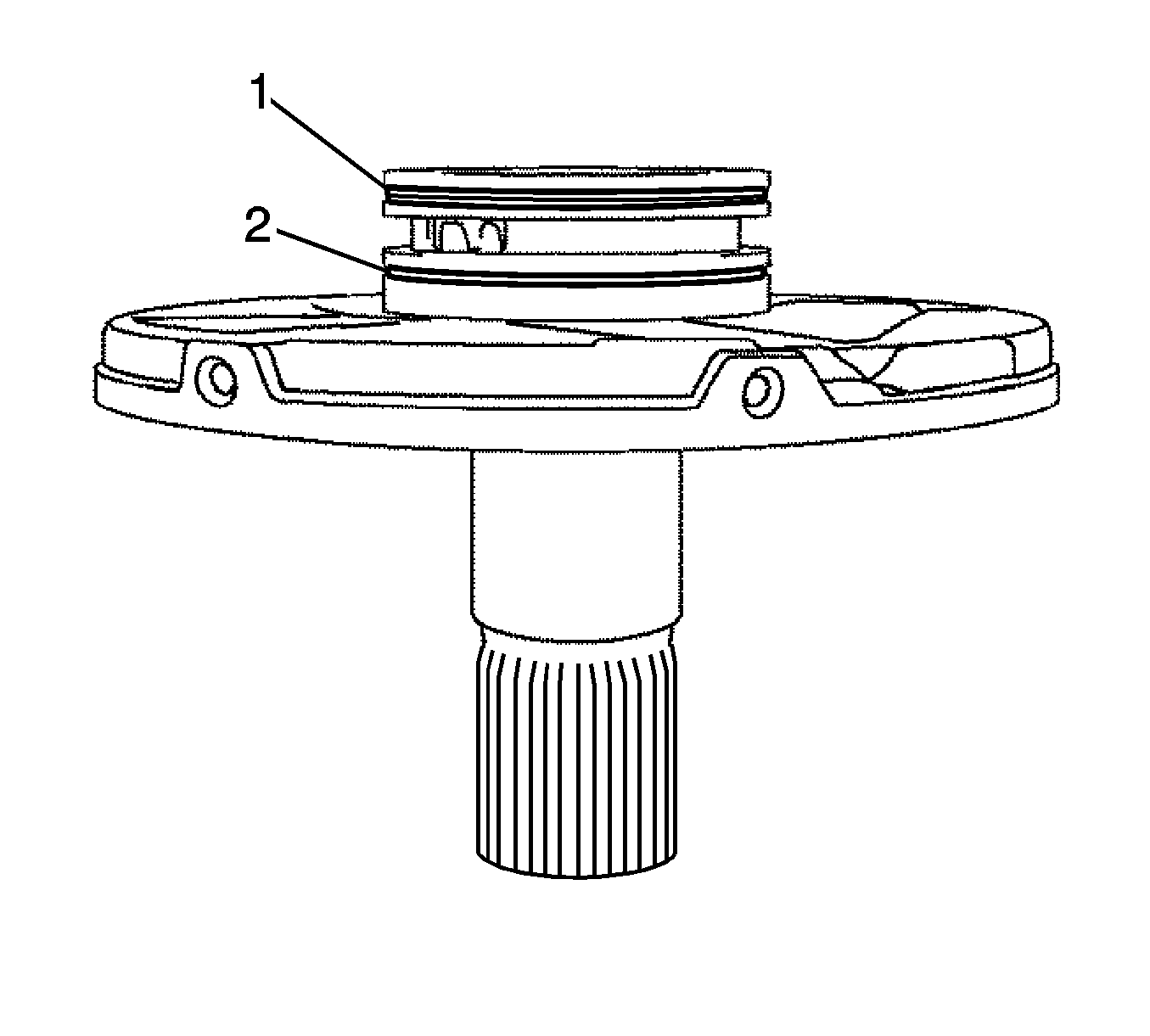

    Fig 1: Locating Clutch Drum Oil Seal Rings & Stator Shaft Assembly
    GM2012747Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch drum oil seal ring.
  2. Coat 2 new clutch drum oil seal rings (1) with ATF, and install them to the stator shaft.

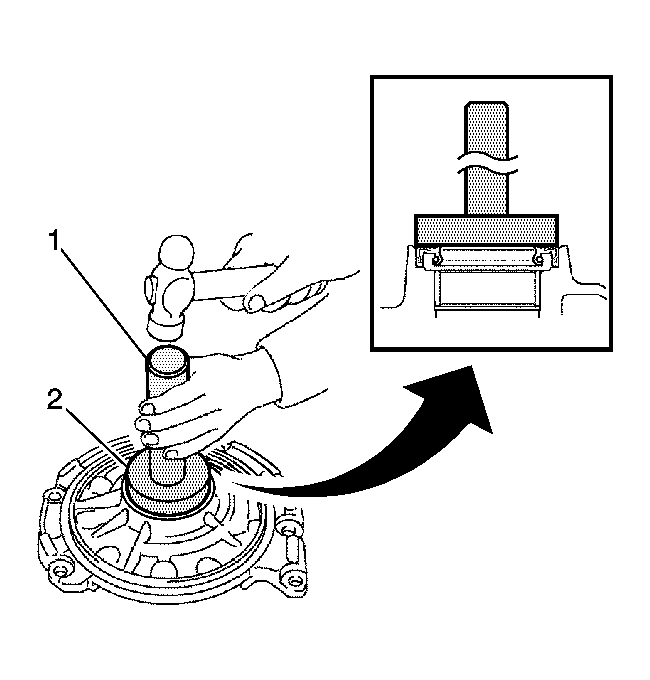

    3. Fig 2: Driving Front Oil Pump Oil Seal Into Oil Pump Body
    GM2012762Courtesy of GENERAL MOTORS CORP.
  3. Install the front oil pump oil seal to the oil pump body.

    Specifications:  Oil seal driven in depth: -0.15 to 0.15 mm (-0.00590 to 0.00590 in)

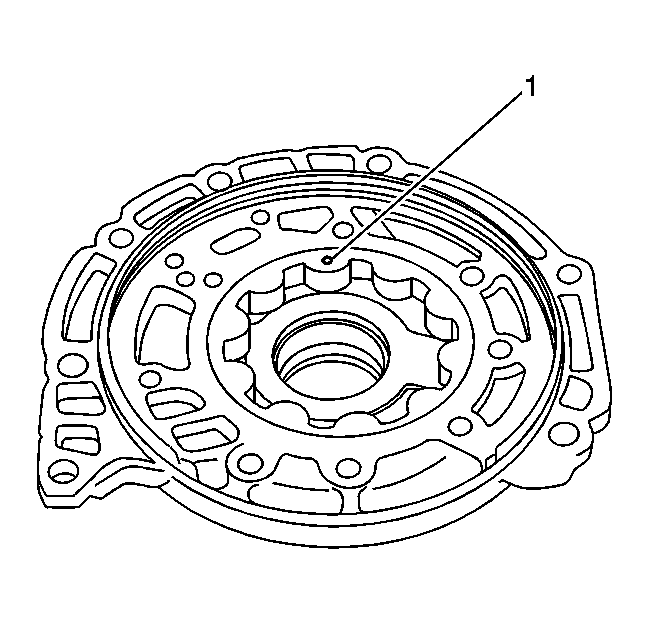

    4. Fig 3: Identifying Oil Pump Body With The Marked Side Facing Upward
    GM2012764Courtesy of GENERAL MOTORS CORP.
  4. Install the front oil pump driven gear.
  5. Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side (1) facing upward.

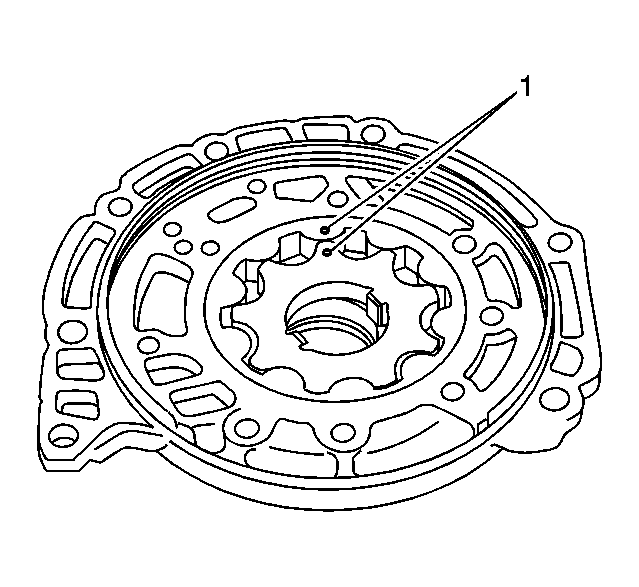

    6. Fig 4: Identifying Marked Front Oil Pump Drive Gear
    GM2012766Courtesy of GENERAL MOTORS CORP.
  6. Install the front oil pump drive gear.
  7. Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing upward (1).

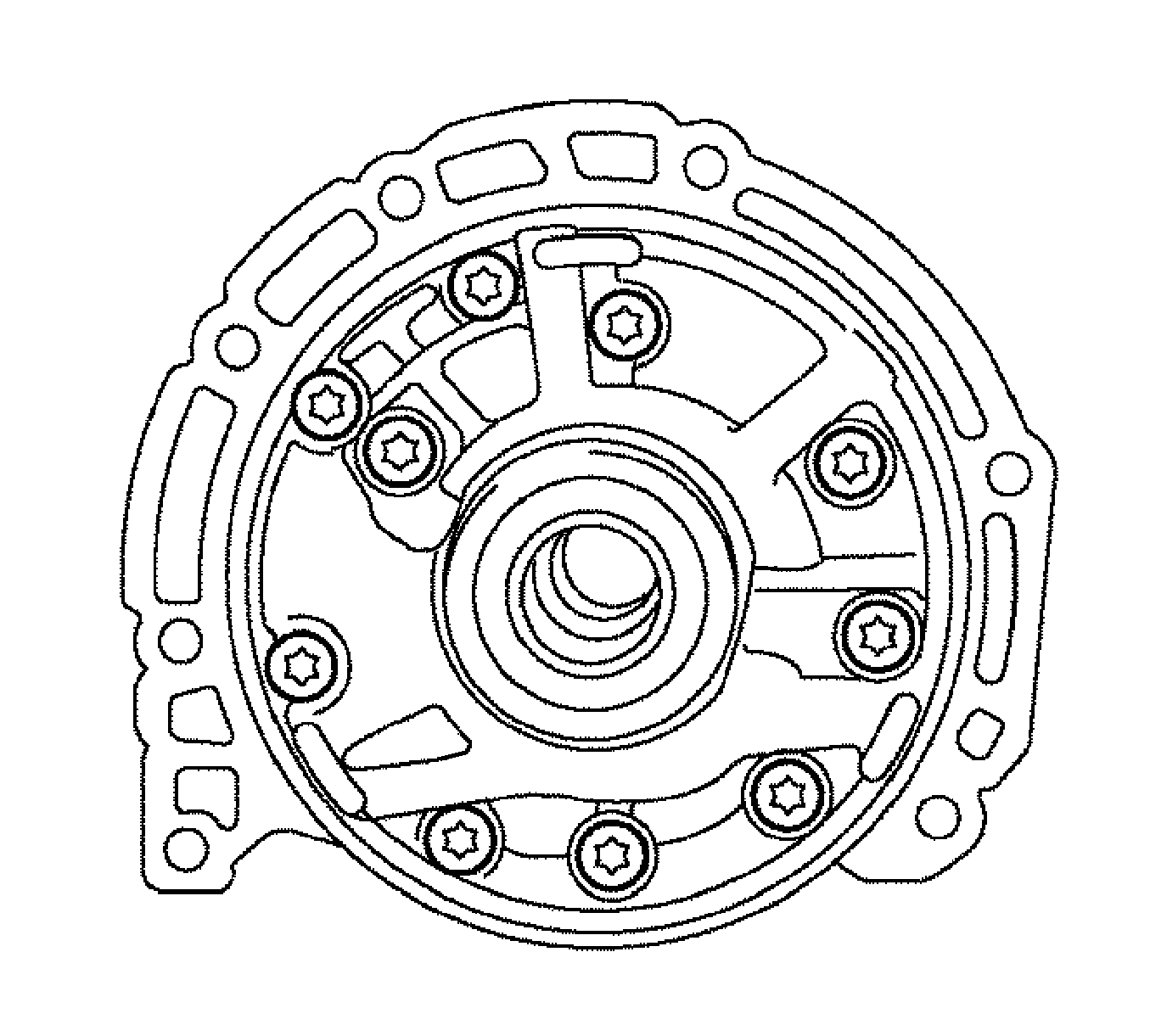

    8. Fig 5: View Of Stator Shaft Assembly
    GM2012740Courtesy of GENERAL MOTORS CORP.
  8. Install the stator shaft assembly.
    9. CAUTION: Refer to Fastener Caution .
  9. Using a TORX socket wrench T30, install the stator shaft assembly with the 10 TORX screws. Tighten the screws to 9.8 N.m (87 lb in).

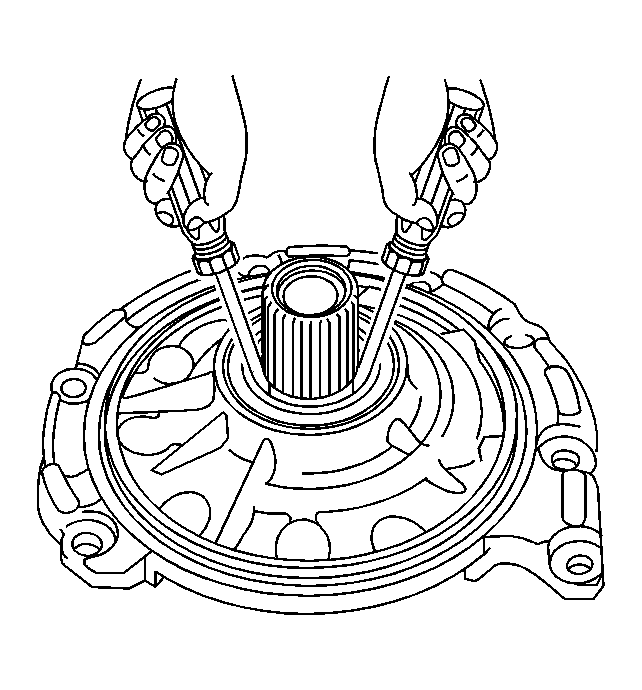

    10. Fig 6: Making Sure Drive Gear Rotates Smoothly Using Screwdrivers
    GM2012768Courtesy of GENERAL MOTORS CORP.
  10. Inspect the oil pump assembly.
  11. Turn the drive gear with 2 screwdrivers and make sure that it rotates smoothly.

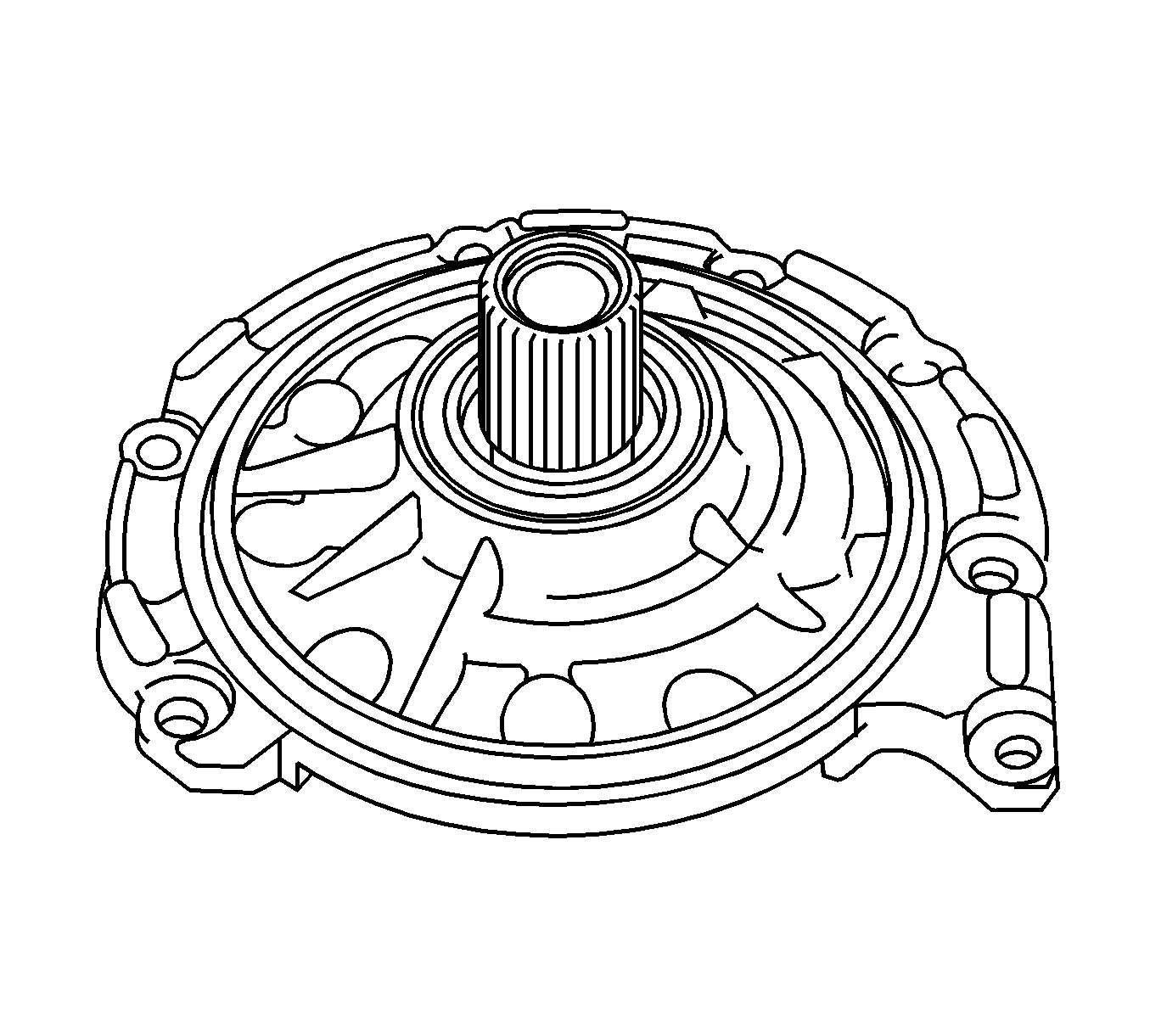

    12. Fig 7: View Of Front Oil Pump Body O-Ring & Oil Pump
    GM2012739Courtesy of GENERAL MOTORS CORP.
  12. Install the front oil pump body O-ring.
  13. Coat a new front oil pump body O-ring with ATF, and install it to the oil pump.
