Park/Neutral Position Switch Adjustment

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Park/Neutral Position Switch Bolt
    GM2011858Courtesy of GENERAL MOTORS CORP.
  1. Adjust the park/neutral position switch assembly.
  2. Loosen the bolt (1) of the park/neutral position switch and move the shift lever to N.

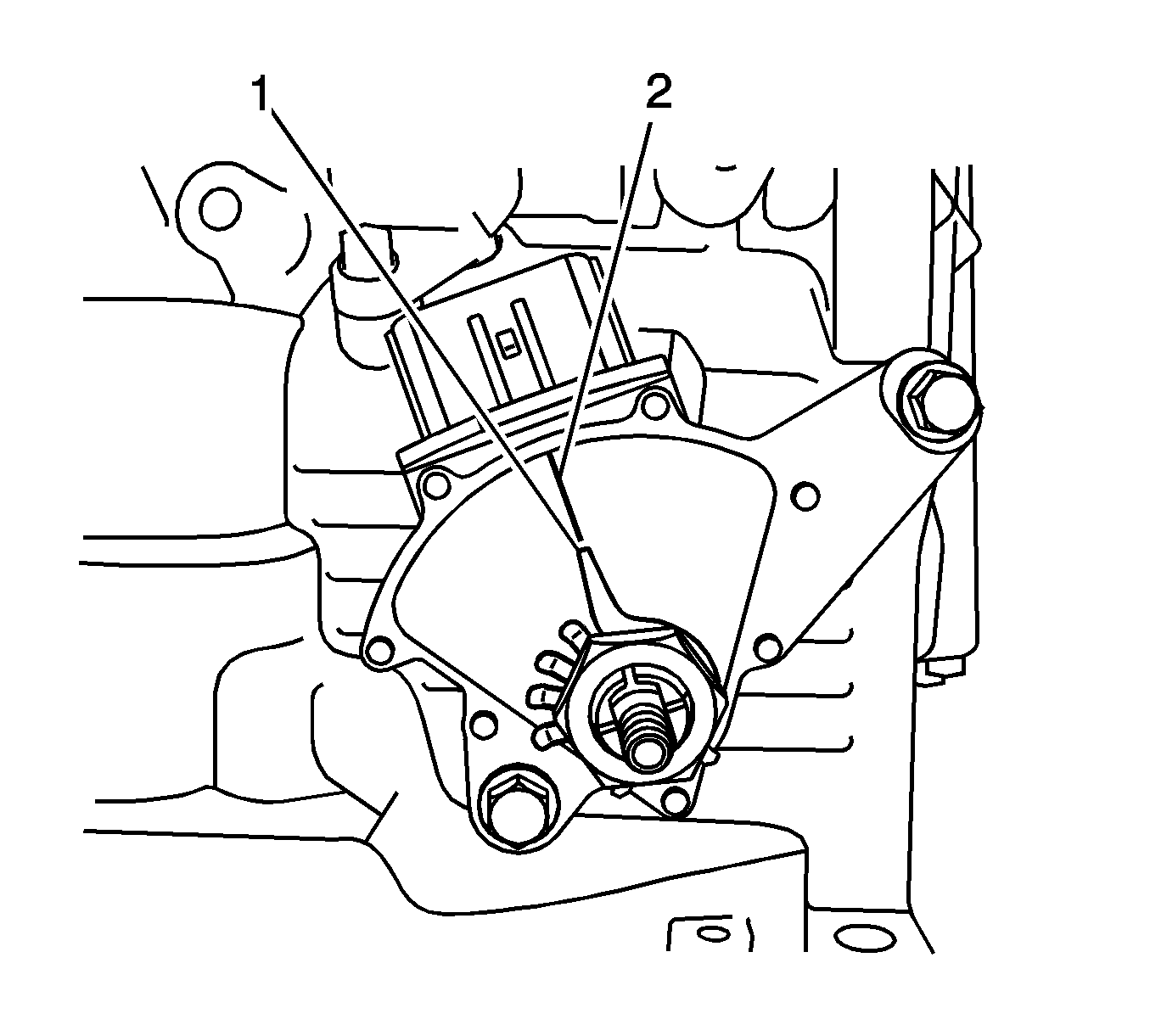

    3. Fig 2: Aligning Groove With Neutral Base Line
    GM2011859Courtesy of GENERAL MOTORS CORP.
  3. Align the groove with the neutral base line (2).
    4. CAUTION: Refer to Fastener Caution .
  4. Hold the switch in position and tighten the 2 bolts to 5.4 N.m (48 lb in).
  5. After the adjustment, perform the switch operation check.
