Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the cable from the negative battery terminal.
  2. Remove the battery.
  3. Remove the battery tray.
  4. Remove the left hand side engine under cover.
  5. Drain the automatic transaxle fluid.
  6. Remove the transmission valve body assembly. Refer to Control Valve Body Replacement

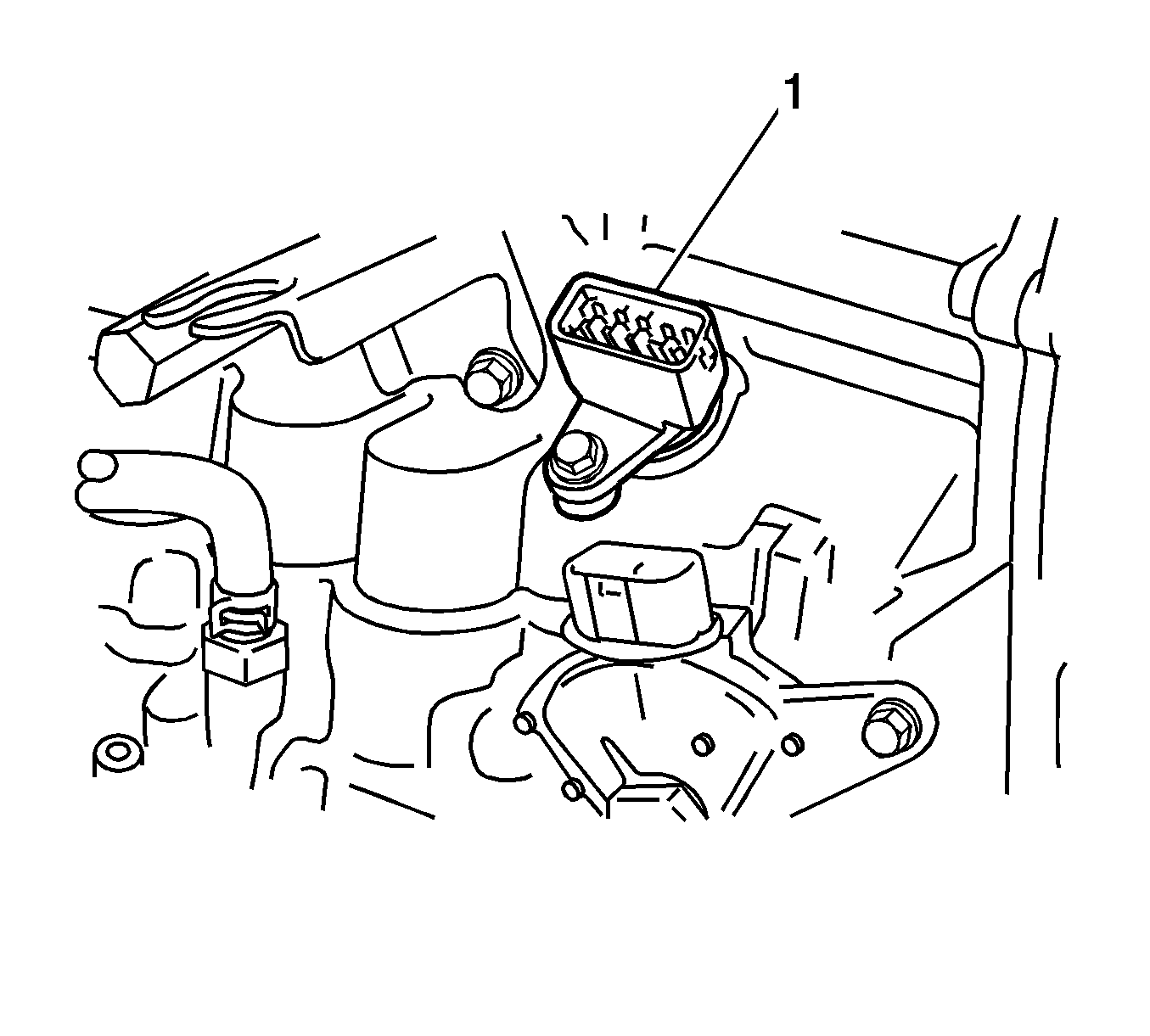

    7. Fig 1: Locating Transmission Wire Bolt
    GM2011805Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolt and the transmission wire (1) from the transaxle case.

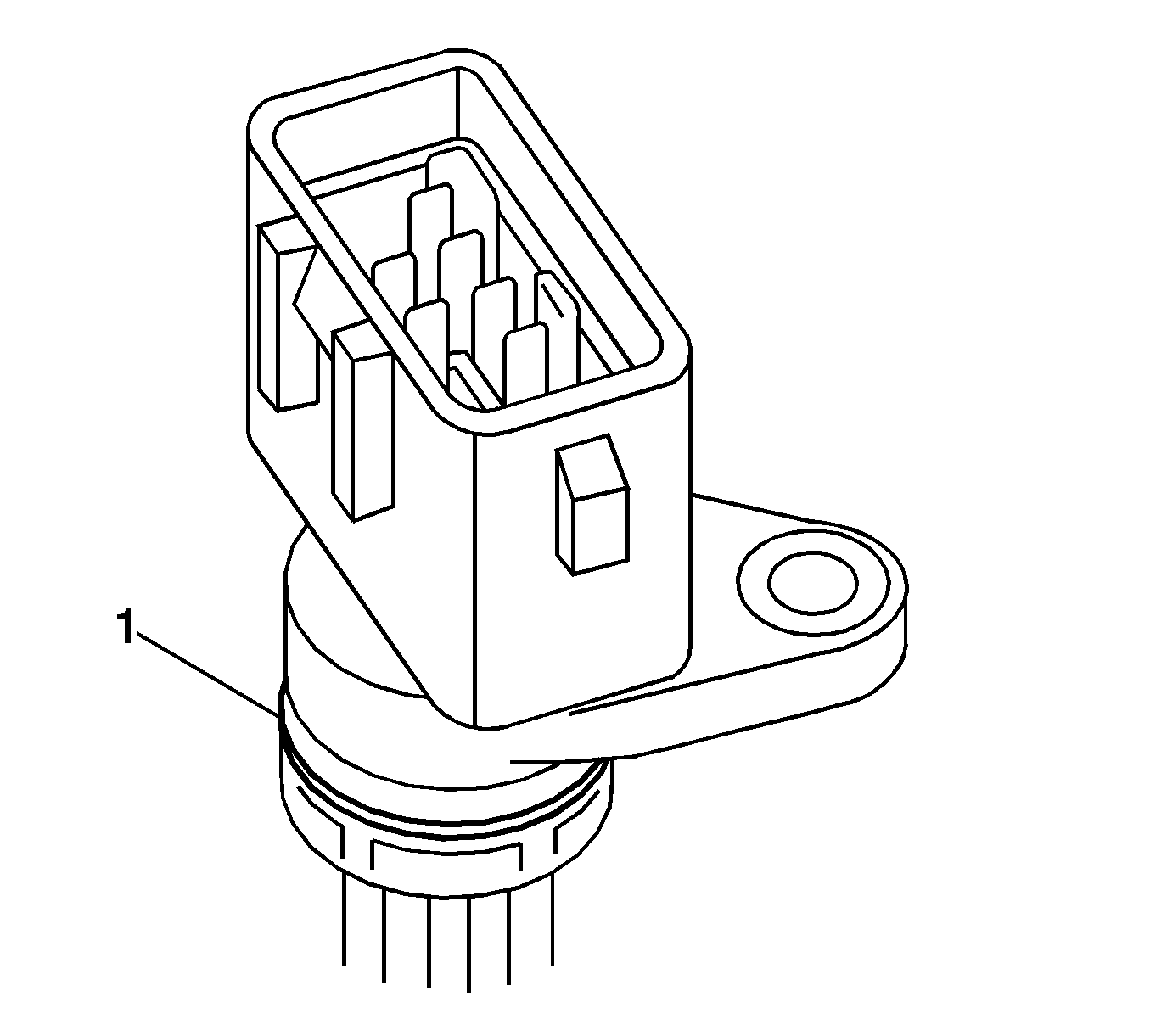

    8. Fig 2: Identifying Transmission Wire O-Ring
    GM2011806Courtesy of GENERAL MOTORS CORP.
  8. Remove the O-ring (1) from the transmission wire.
