Control Valve Body Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Transmission Wire O-Ring
    GM2011806Courtesy of GENERAL MOTORS CORP.
  1. Coat a new O-ring (1) with ATF WS and install it to the transmission wire.

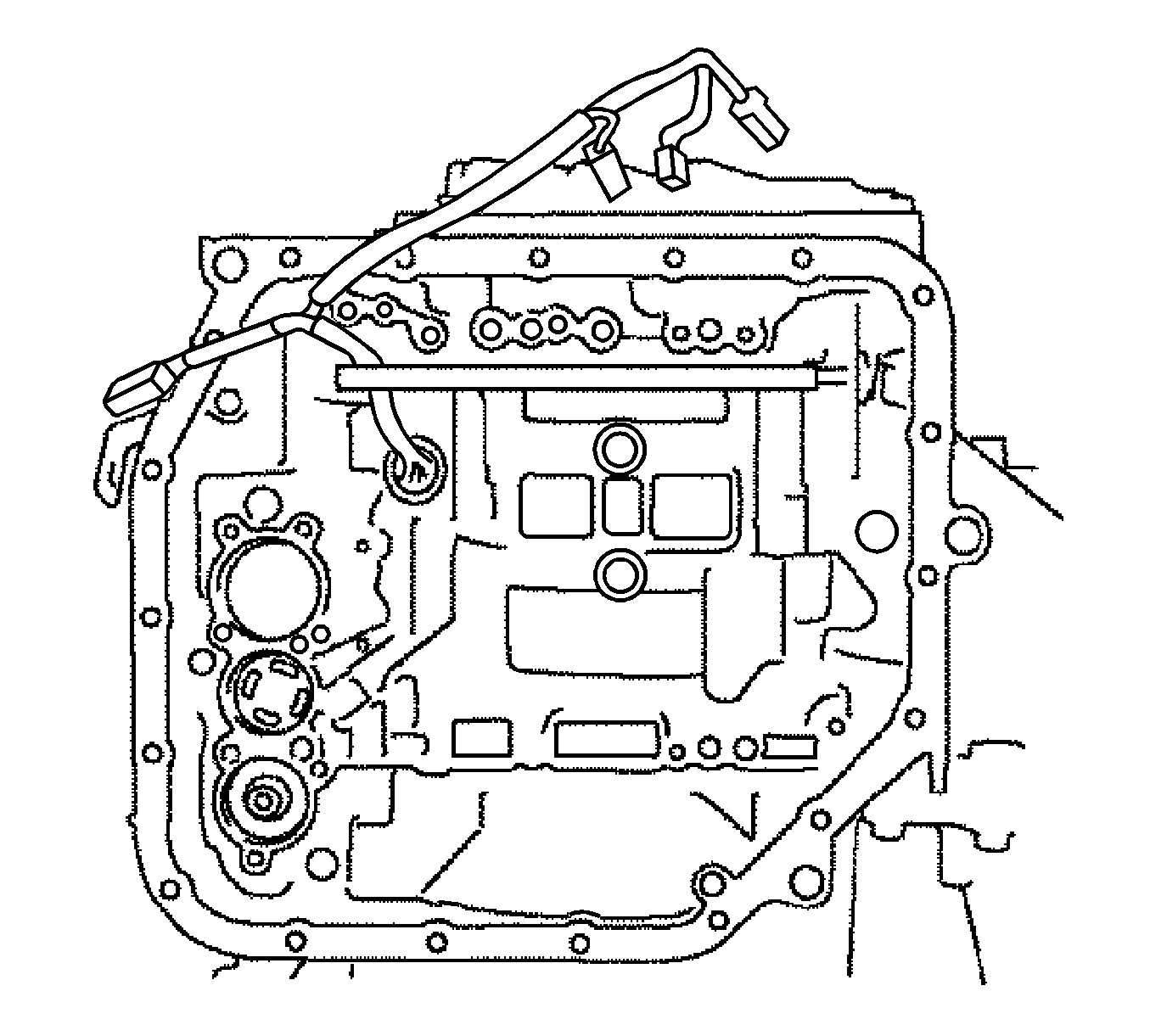

    2. Fig 2: View Of Transmission Wire & Transaxle
    GM2011810Courtesy of GENERAL MOTORS CORP.
  2. Pass the transmission wire through the transaxle.
    3. Fig 3: Locating Transmission Wire Bolt
    GM2011805Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission wire (1) with the bolt and tighten to 5.4 N.m (48 lb in).
  4. Install the transmission valve body assembly. Refer to Control Valve Body Replacement .
  5. Install the battery tray.
  6. Install the battery.
  7. Connect the cable to the negative battery terminal.
  8. Add the automatic transaxle fluid.
  9. Inspect the automatic transaxle fluid.
  10. Inspect for automatic transaxle fluid leak.
  11. Install the left hand side engine under cover.
