Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Drive the vehicle so that the engine and transaxle are at normal operating temperature 70 to 80°C (158 to 176°F).

Fluid Temperature:

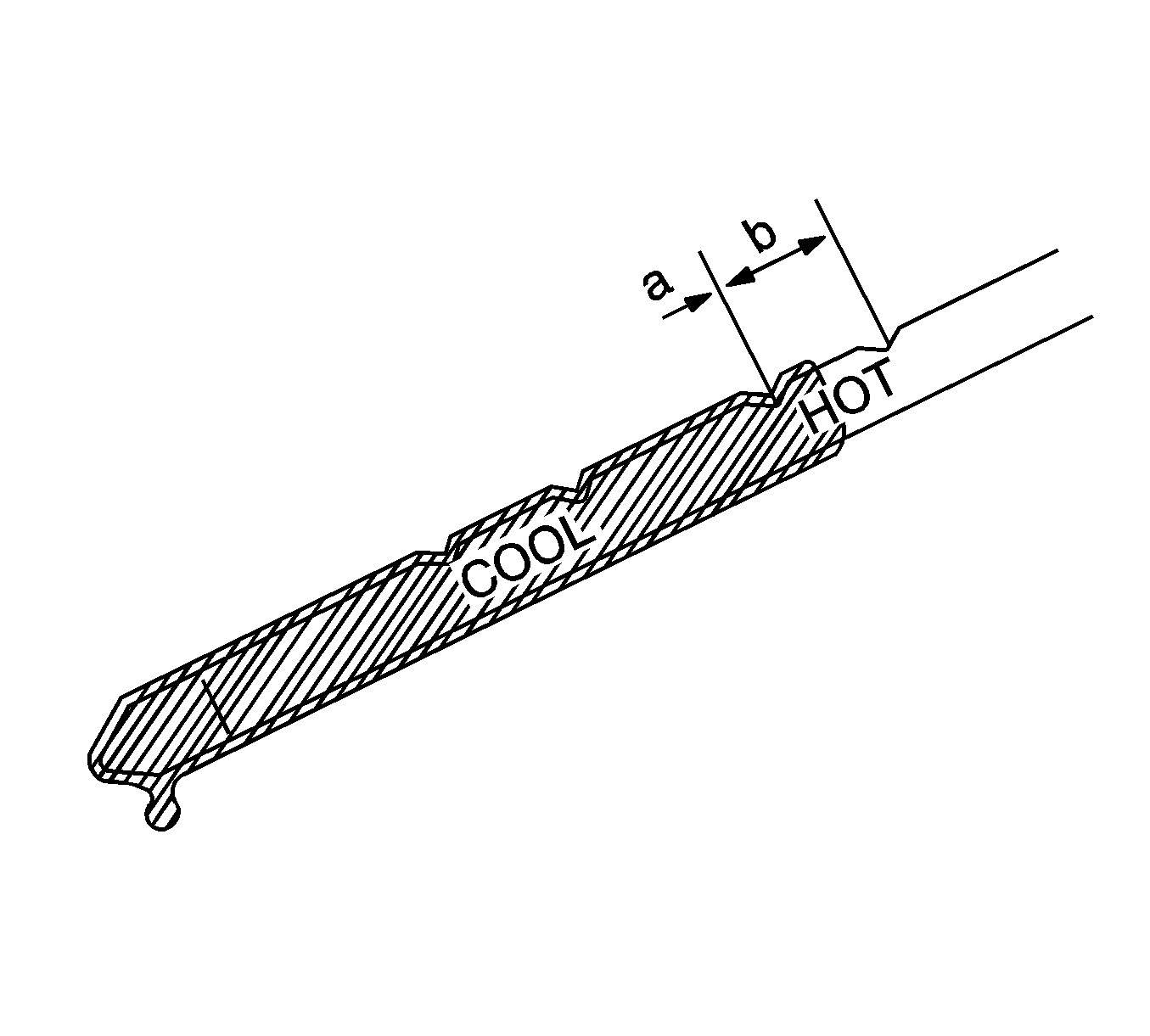

Fig 1: View Of Fluid Level Indicator

Courtesy of GENERAL MOTORS CORP.

Park the vehicle on a level surface and set the parking brake.
With the engine idling and the brake pedal depressed, move the shift lever to all positions from P to L. Then return it to P.
Pull out the dipstick and wipe it clean.
Push it back fully into the pipe.
Pull it out again and check that the fluid level is within the HOT range. If the fluid level is below the HOT range, add new fluid and recheck the fluid level. If the fluid level exceeds the HOT range, drain the fluid once, add a proper amount of new fluid and recheck the fluid level.
