Disassembled Views

WARNING: This page is about a different variant/trim than selected.

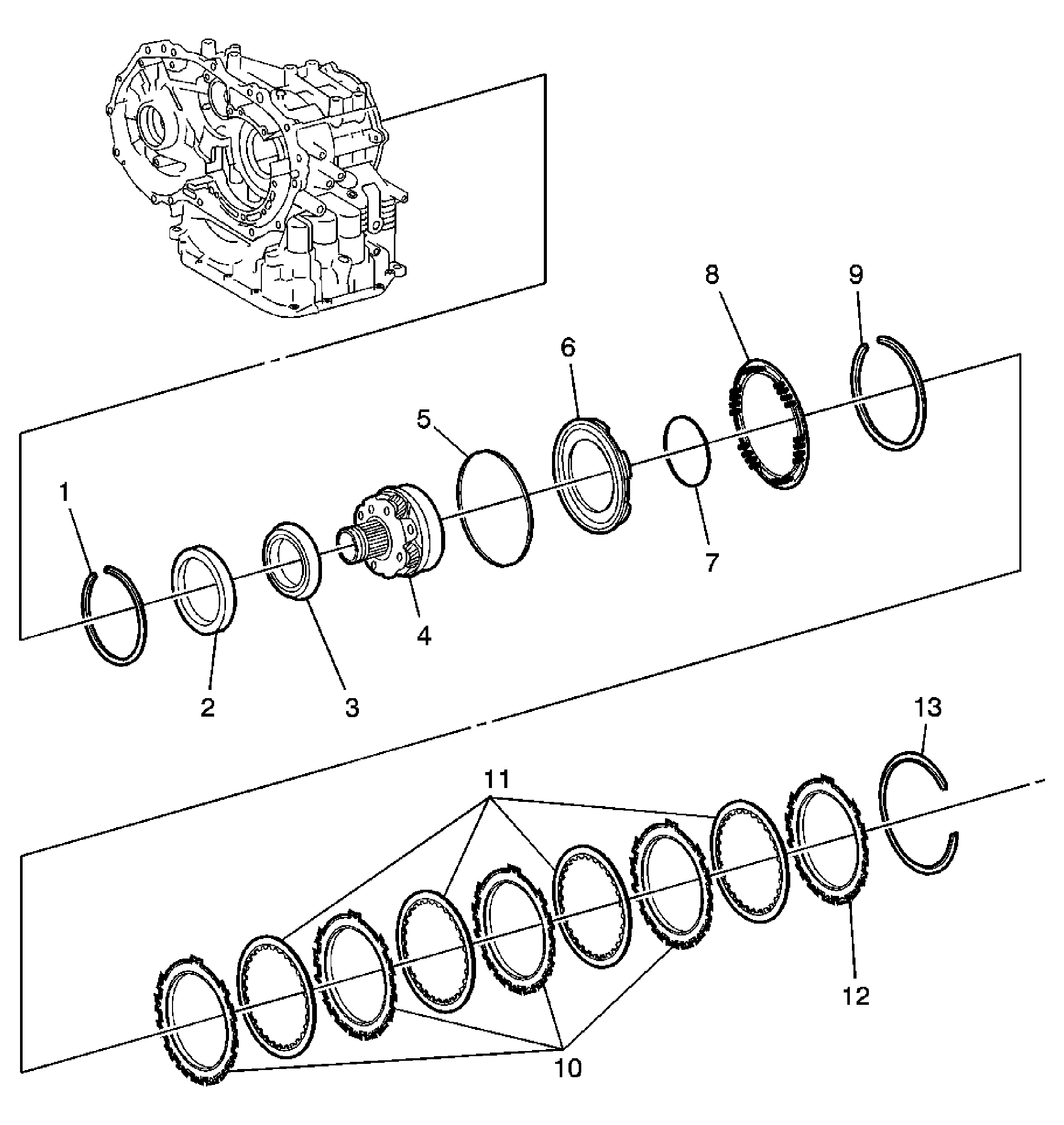

Fig 1: Identifying 1st and Reverse Brake Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Counter Drive Gear Hole Snap Ring
2	Counter Drive Gear Bearing Outer Race LH
3	Counter Drive Gear Bearing LH
4	Planetary Gear Assembly
5	No. 2 1st and Reverse Brake Piston O-ring
6	No. 2 1st and Reverse Brake Piston
7	No. 2 1st and Reverse Brake Piston O-ring
8	1st and Reverse Brake Return Spring Sub-Assembly
9	Snap Ring
10	1st and Reverse Brake Plate
11	1st and Reverse Brake Disc
12	1st and Reverse Brake Flange
13	Snap Ring

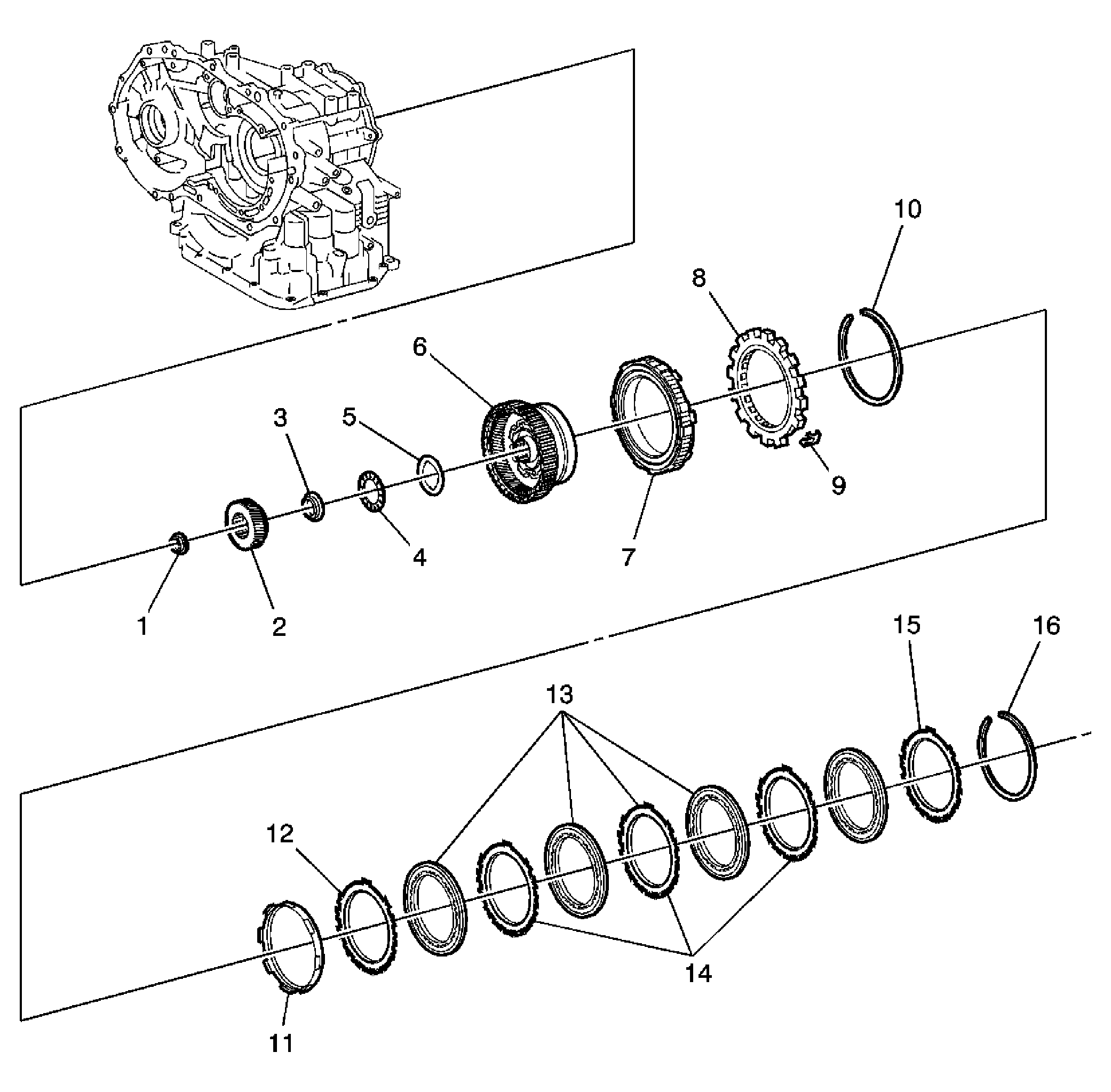

Fig 2: Identifying 2nd Brake Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Planetary Gear Thrust Needle Roller Bearing
2	Front Planetary Sun Gear
3	Thrust Bearing Race
4	Rear Planetary Gear Thrust Needle Roller Bearing
5	No. 2 Thrust Bearing Race
6	Rear Planetary Gear Assembly
7	2nd Brake Assembly
8	No. 2 One-Way Clutch
9	Outer Race Retainer
10	Snap Ring
11	2nd Brake Piston Sleeve
12	2nd Brake Flange
13	2nd Brake Disc
14	No. 1 2nd Brake Flange
15	2nd Brake Flange
16	Snap Ring

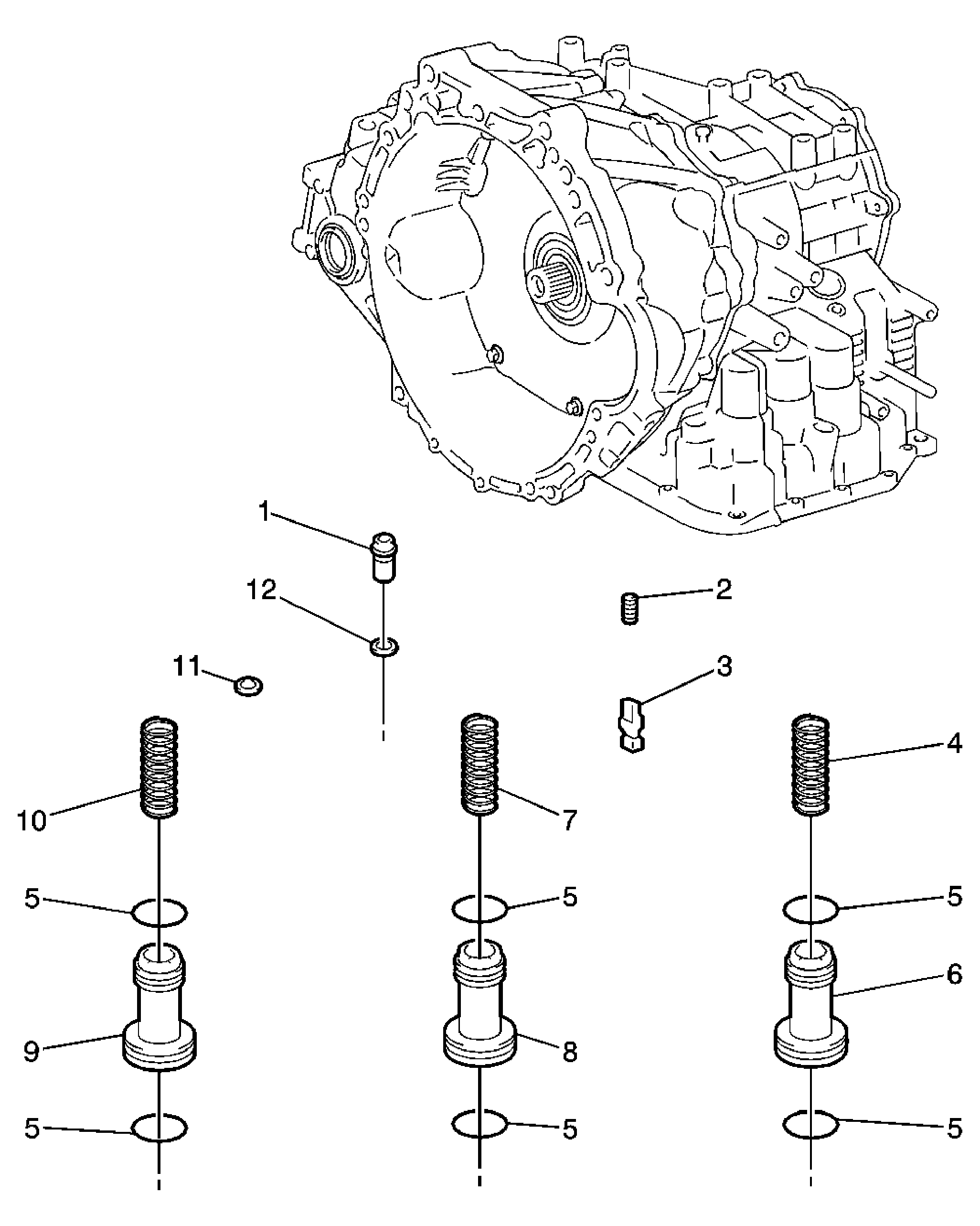

Fig 3: Accumulator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Drum Gasket
2	Check Ball Body Compression Spring
3	Check Ball Body
4	C-2 Accumulator Piston Compression Spring
5	O-ring
6	C-2 Accumulator Piston
5	O-ring
7	C-3 Accumulator Piston Compression Spring
5	O-ring
8	C-3 Accumulator Piston
5	O-ring
5	O-ring
9	B-2 Accumulator Piston
5	O-ring
10	B-2 Accumulator Piston Compression Spring
11	Transaxle Case 2nd Brake Gasket
12	Transaxle Case Gasket

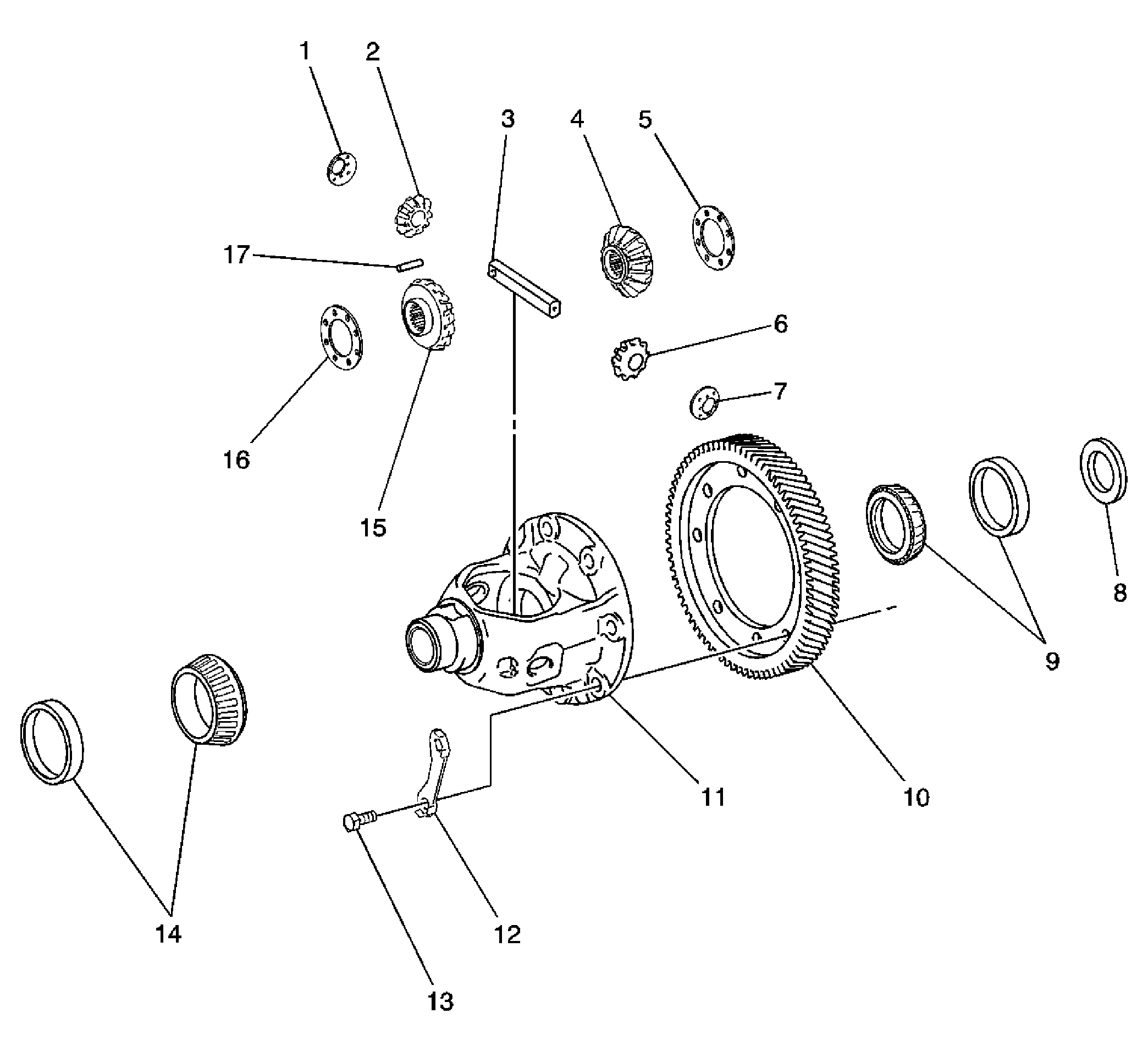

Fig 4: Identifying Differential Case Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Differential Pinion Thrust Washer
2	Front Differential Pinion
3	Front No. 1 Differential Pinion Shaft
4	Front Differential Side Gear
5	Front Differential Side Gear Thrust Washer
6	Front Differential Pinion
7	Front Differential Pinion Thrust Washer
8	Front Differential Rear Case Shim
9	Front Differential Case Rear Tapered Roller Bearing
10	Front Differential Ring Gear
11	Differential Case
12	Ring Gear Lock Plate
13	Bolt
14	Front Differential Case Front Tapered Roller Bearing
15	Front Differential Side Gear
16	Front Differential Side Gear Thrust Washer
17	Front Differential Pinion Shaft Straight Pin

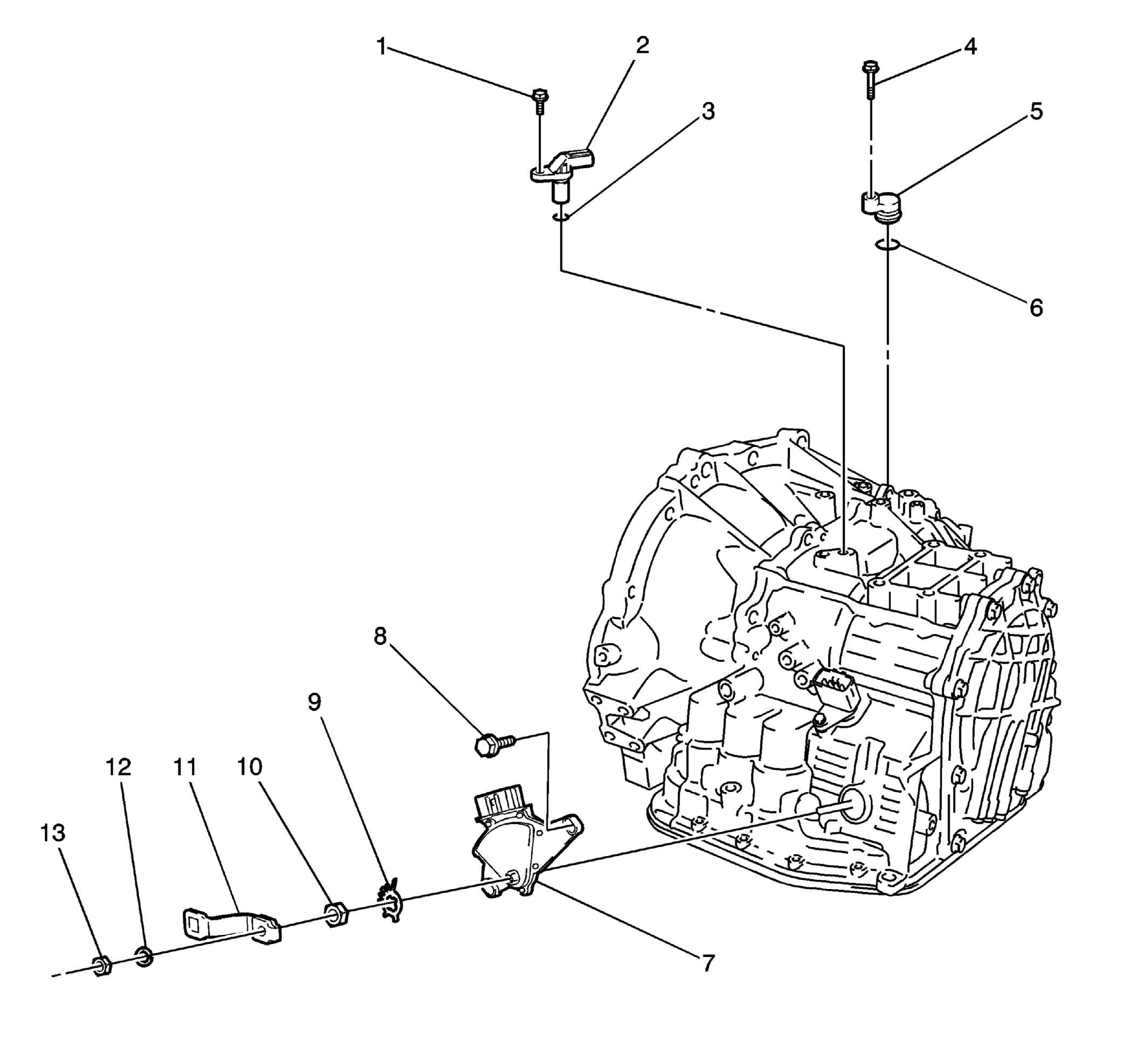

Fig 5: Identifying External Electrical Component Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt
2	Speed Sensor
3	O-ring
4	Screw
5	Speedometer Driven Hole Cover Sub-Assembly
6	O-ring
7	Park/Neutral Position Switch Assembly
8	Bolt
9	Lock Plate
10	Nut
11	Control Shaft Lever
12	Washer
13	Nut

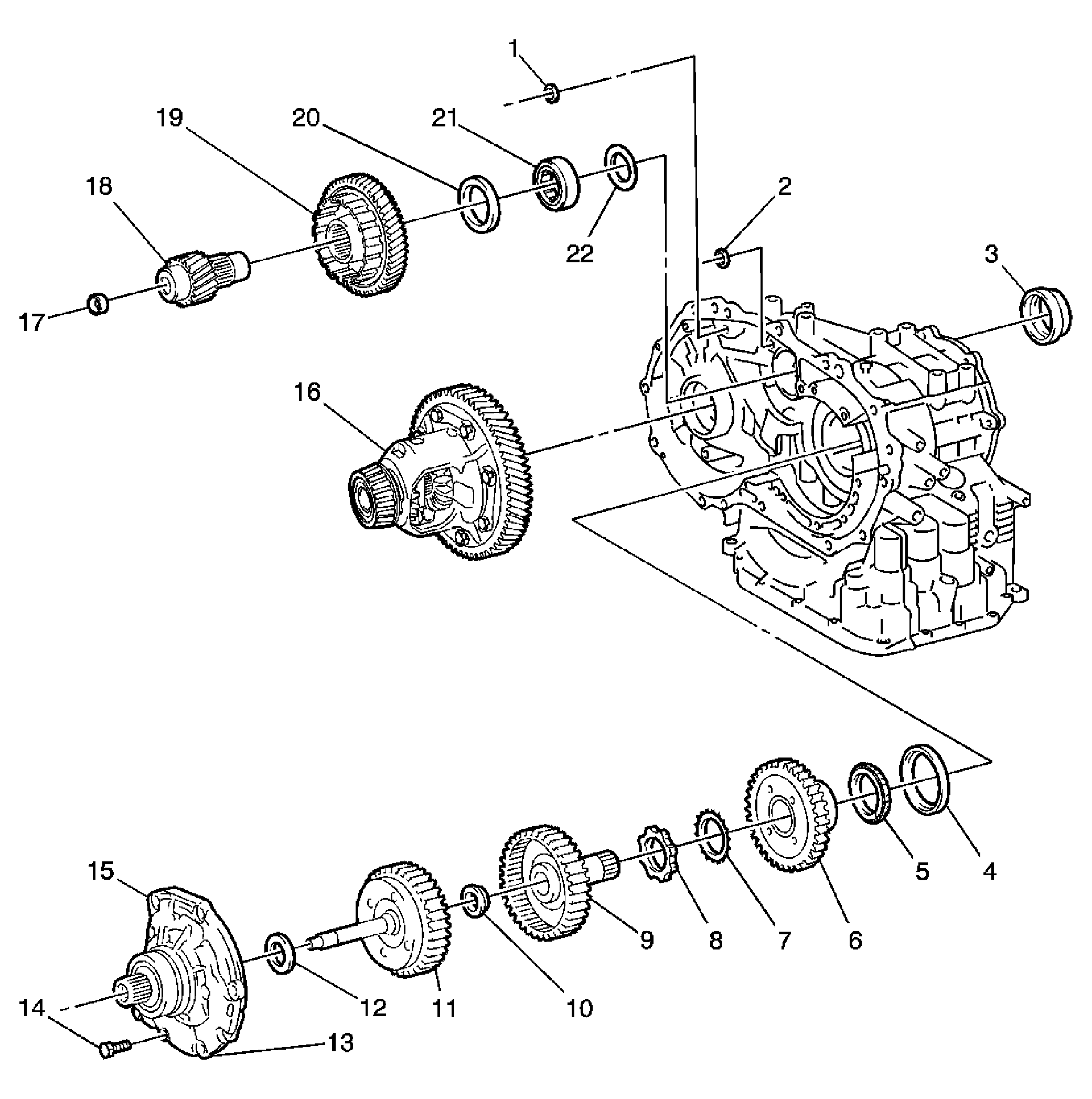

Fig 6: View Of Forward Clutch Hub and Related Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overdrive Brake Gasket
2	Overdrive Brake Gasket
3	Front Transaxle Case Oil Seal
4	Counter Drive Gear Bearing Outer Race RH
5	Counter Drive Gear Bearing RH
6	Counter Drive Gear
7	Counter Drive Gear Lock Nut Washer
8	Counter Drive Gear Nut
9	Forward Clutch Hub Sub-Assembly
10	Forward Clutch Hub Thrust Needle Roller Bearing
11	Input Shaft Assembly
12	Stator Shaft Thrust Needle Roller Bearing
13	Oil Pump Assembly Gasket
14	Bolt
15	Oil Pump Assembly
16	Differential Gear Assembly
17	Differential Drive Pinion Plug
18	Differential Drive Pinion
19	Counter Driven Gear
20	Drive Pinion Thrust Bearing LH
21	Front Drive Pinion Rear Tapered Roller Bearing
22	No. 1 Transaxle Case Plate

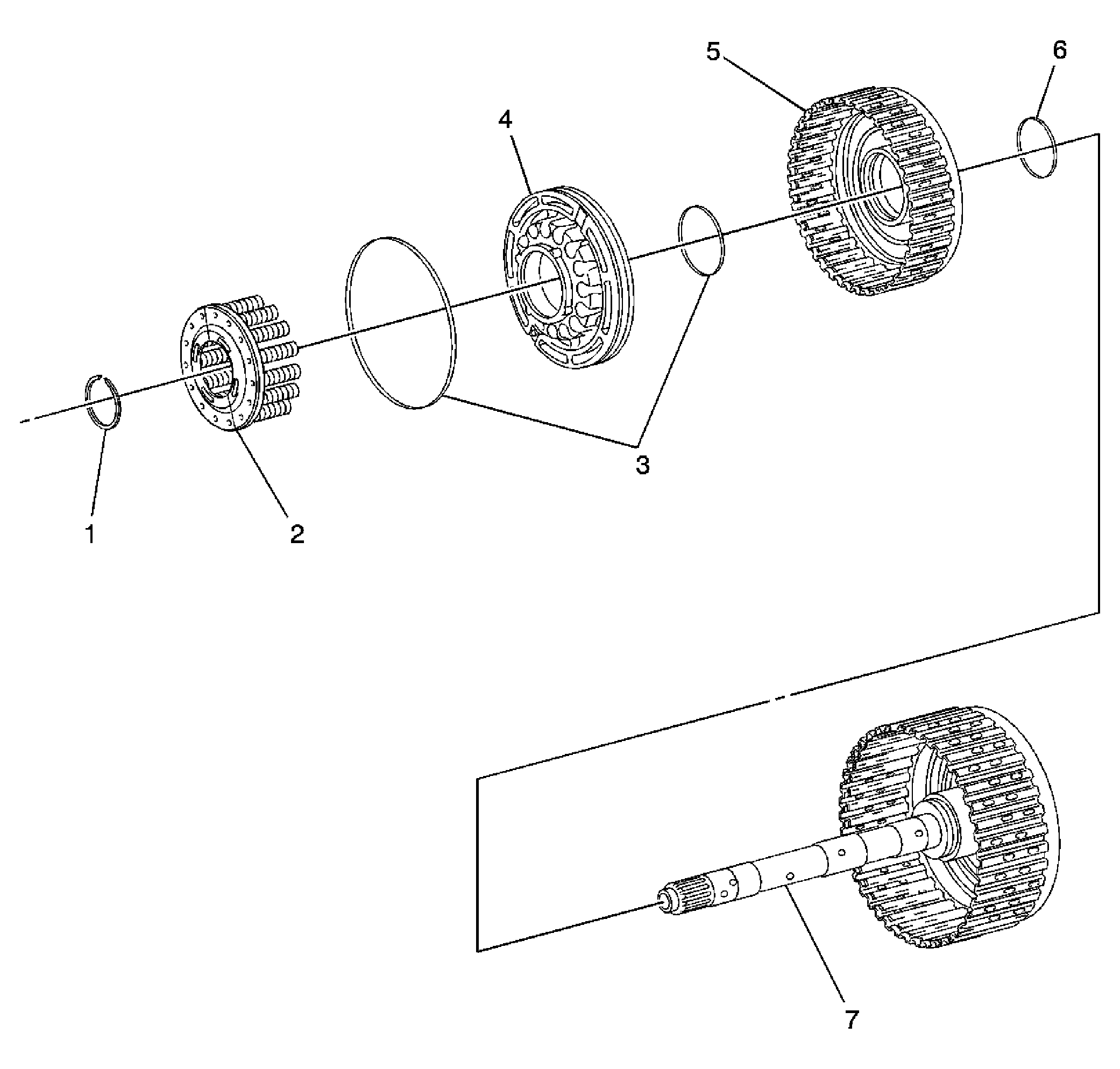

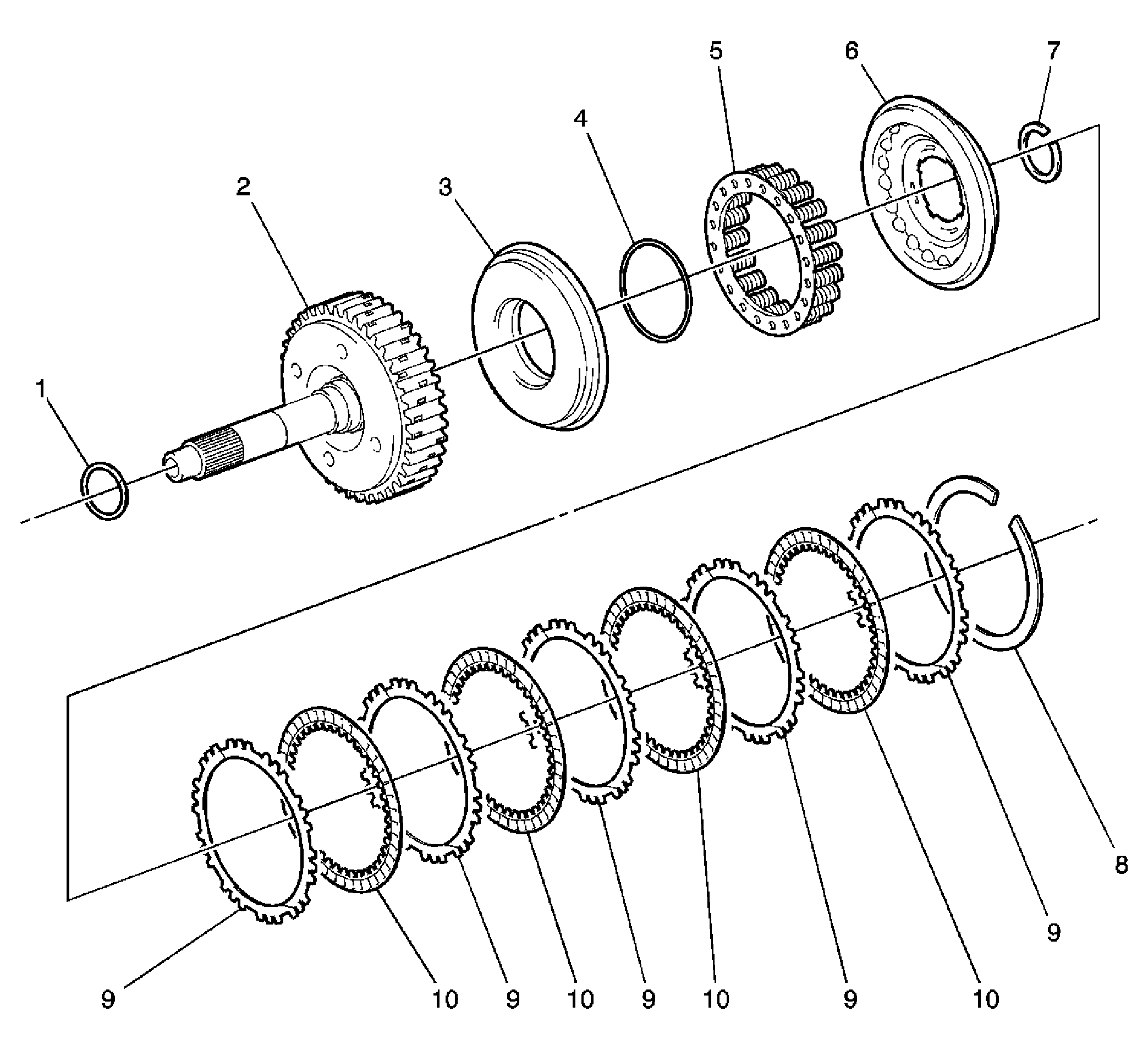

Fig 7: Input Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft Oil Seal Ring
2	Input Shaft
3	Forward Clutch Piston
4	Forward Clutch Piston O-ring
5	Forward Clutch Return Spring Sub-Assembly
6	No. 1 Clutch Balancer
7	Snap Ring
8	Snap Ring
9	Forward Clutch Flange
10	Front Clutch Disc
9	Forward Clutch Flange
10	Front Clutch Disc
9	Forward Clutch Flange
10	Front Clutch Disc
9	Forward Clutch Flange
10	Front Clutch Disc
9	Forward Clutch Flange

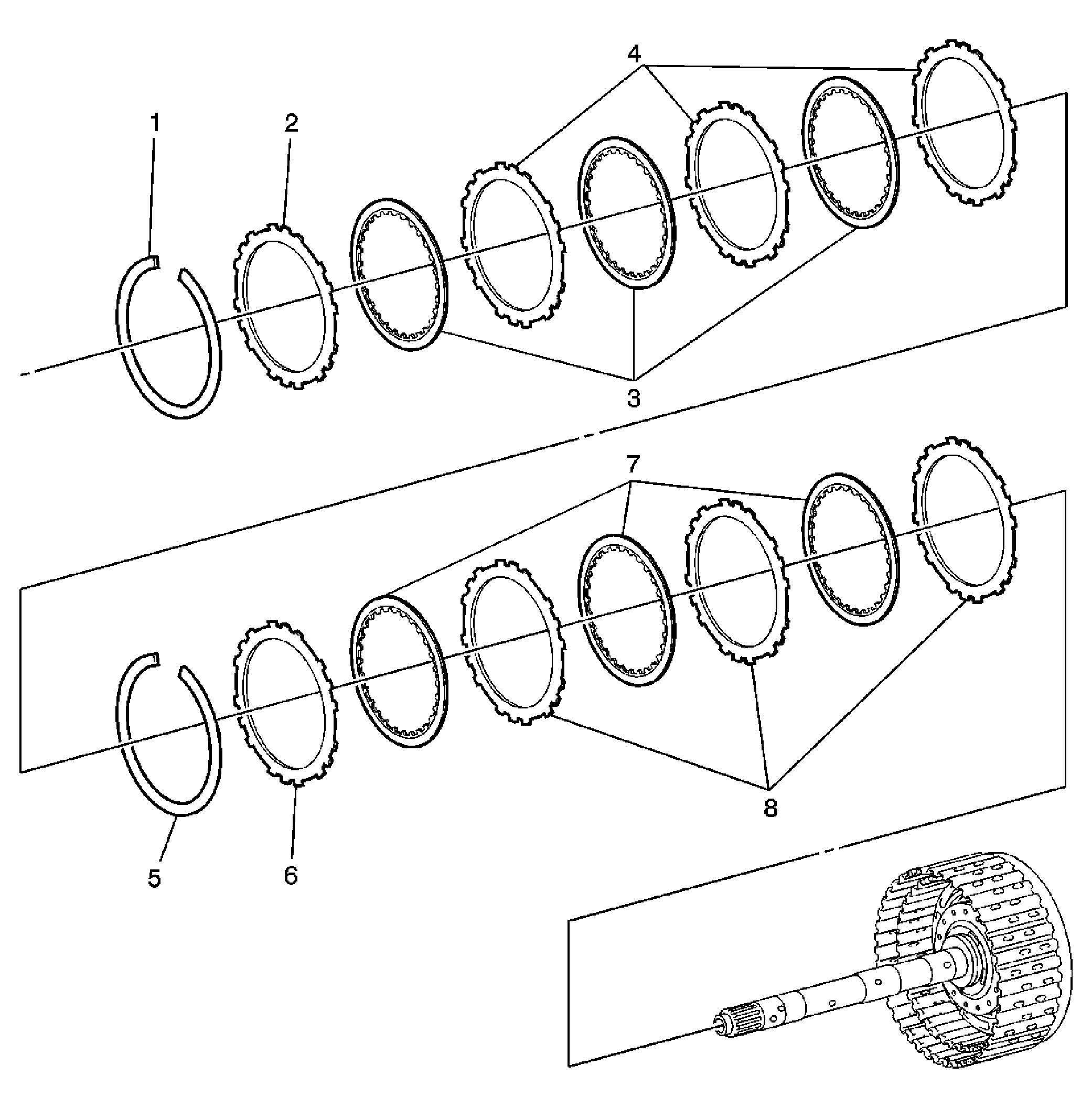

Fig 8: Intermediate Shaft Assembly Part 1 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Snap Ring
2	Reverse Clutch Flange
3	Reverse Clutch Disc
4	No. 3 Clutch Plate
5	Snap Ring
6	Direct Clutch Flange
7	Direct Clutch Disc
8	Rear Clutch Flange

Fig 9: Intermediate Shaft Assembly Part 2 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Snap Ring
2	Direct Clutch Return Spring Sub-Assembly
3	Direct Clutch Piston O-Ring
4	Direct Clutch Piston Sub-Assembly
5	Direct Clutch Drum Sub-Assembly
6	Direct Clutch Drum O-Ring
7	Intermediate Shaft

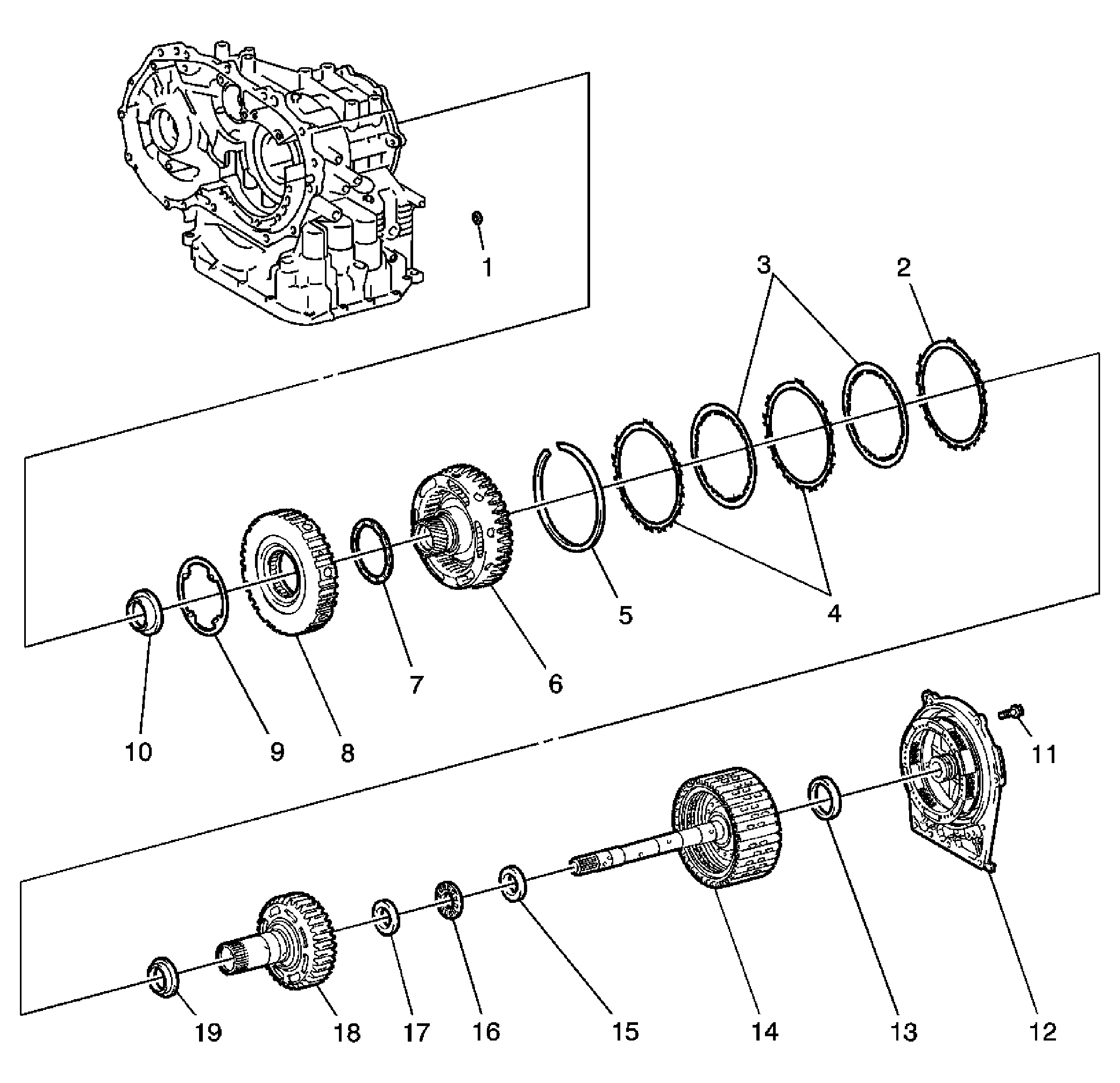

Fig 10: Intermediate Shaft Assembly Part 3 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transaxle Case Gasket
2	2nd Coast and Overdrive Brake Flange
3	2nd Coast and Overdrive Brake Disc
4	No. 2 2nd Coast and Overdrive Brake Flange
5	Snap Ring
6	Rear Planetary Sun Gear Assembly
7	No. 2 Planetary Carrier Thrust Washer
8	One-Way Clutch Assembly
9	No. 1 Planetary Carrier Thrust Washer
10	Rear Planetary Sun Gear Thrust Needle Roller Bearing
11	Bolt
12	Rear Transaxle Cover Assembly
13	Rear Clutch Drum Thrust Needle Roller Bearing
14	Intermediate Shaft Assembly
15	C-2 Hub Thrust Bearing Race
16	Thrust Needle Roller Bearing
17	No. 3 Thrust Bearing Race
18	Direct Clutch Hub
19	Rear No. 2 Planetary Sun Gear Thrust Needle Roller Bearing

Fig 11: Manual Lever Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manual Valve Lever Shaft Oil Seal
2	Parking Lock Pawl Shaft
3	Parking Lock Pawl Shaft Torsion Spring
4	Parking Lock Pawl
5	Manual Valve Lever Shaft
6	Manual Valve Lever Shaft Spring Pin
7	Manual Valve Lever Shaft Spacer
8	Manual Valve Lever Sub-Assembly
9	Parking Lock Rod Sub-Assembly
10	Bolt
11	Parking Lock Pawl Bracket
12	Parking Lock Cam Guide
13	Manual Valve Lever Shaft Retainer Spring

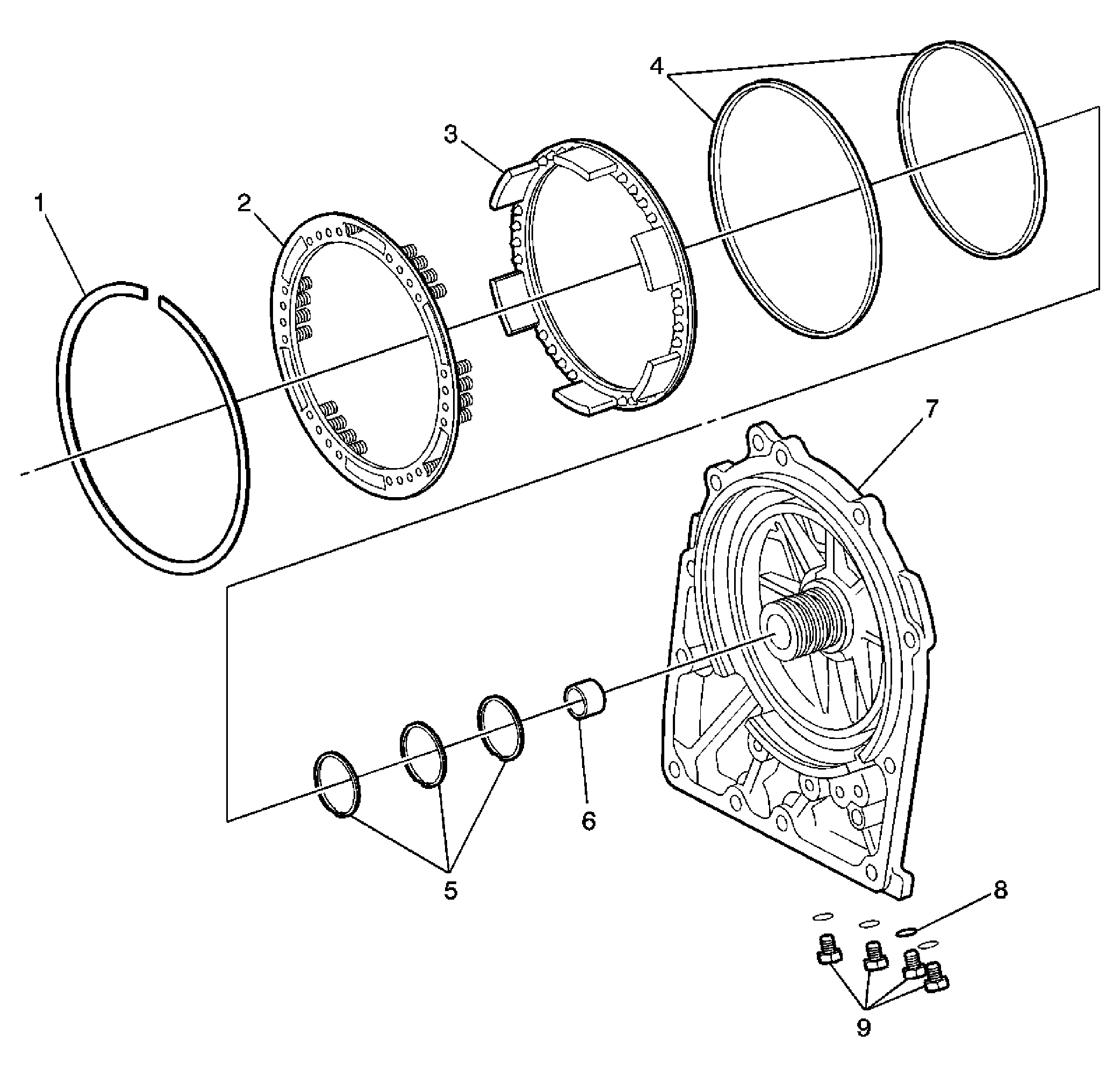

Fig 12: Identifying Rear Transaxle Cover Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Snap Ring
2	Overdrive Brake Return Spring Sub-Assembly
3	2nd Coast and Overdrive Brake Piston
4	2nd Coast and Overdrive O-ring
5	Clutch Drum Oil Seal Ring
6	Rear Transaxle Cover Needle Roller Bearing
7	Rear Transaxle Cover
8	O-ring
9	Rear Transaxle Cover Plug

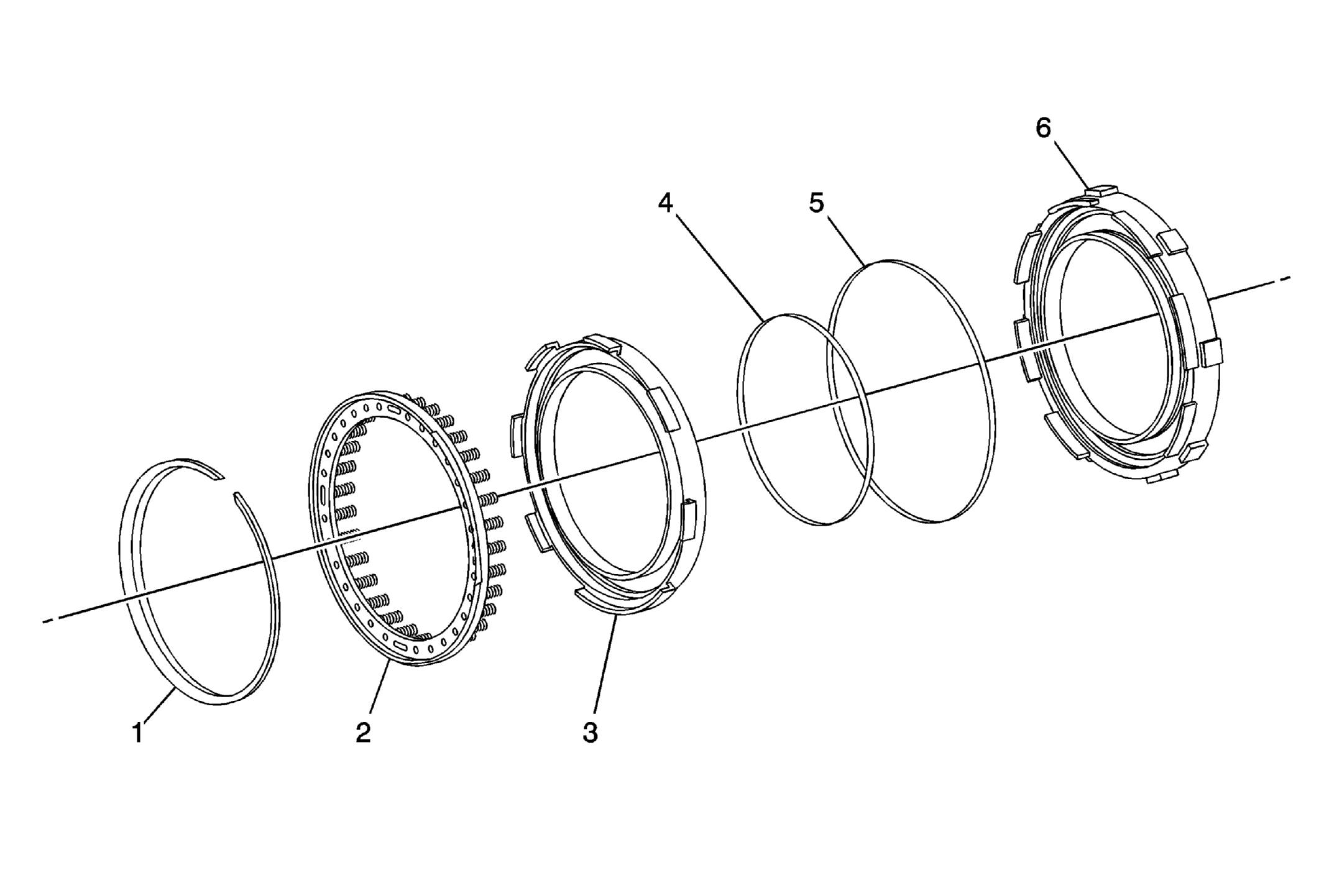

Fig 13: View Of Second Brake Piston Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Snap Ring
2	2nd Brake Piston Return Spring Sub-Assembly
3	2nd Brake Piston
4	2nd Brake Cylinder O-ring
5	2nd Brake Cylinder O-ring
6	2nd Brake Cylinder

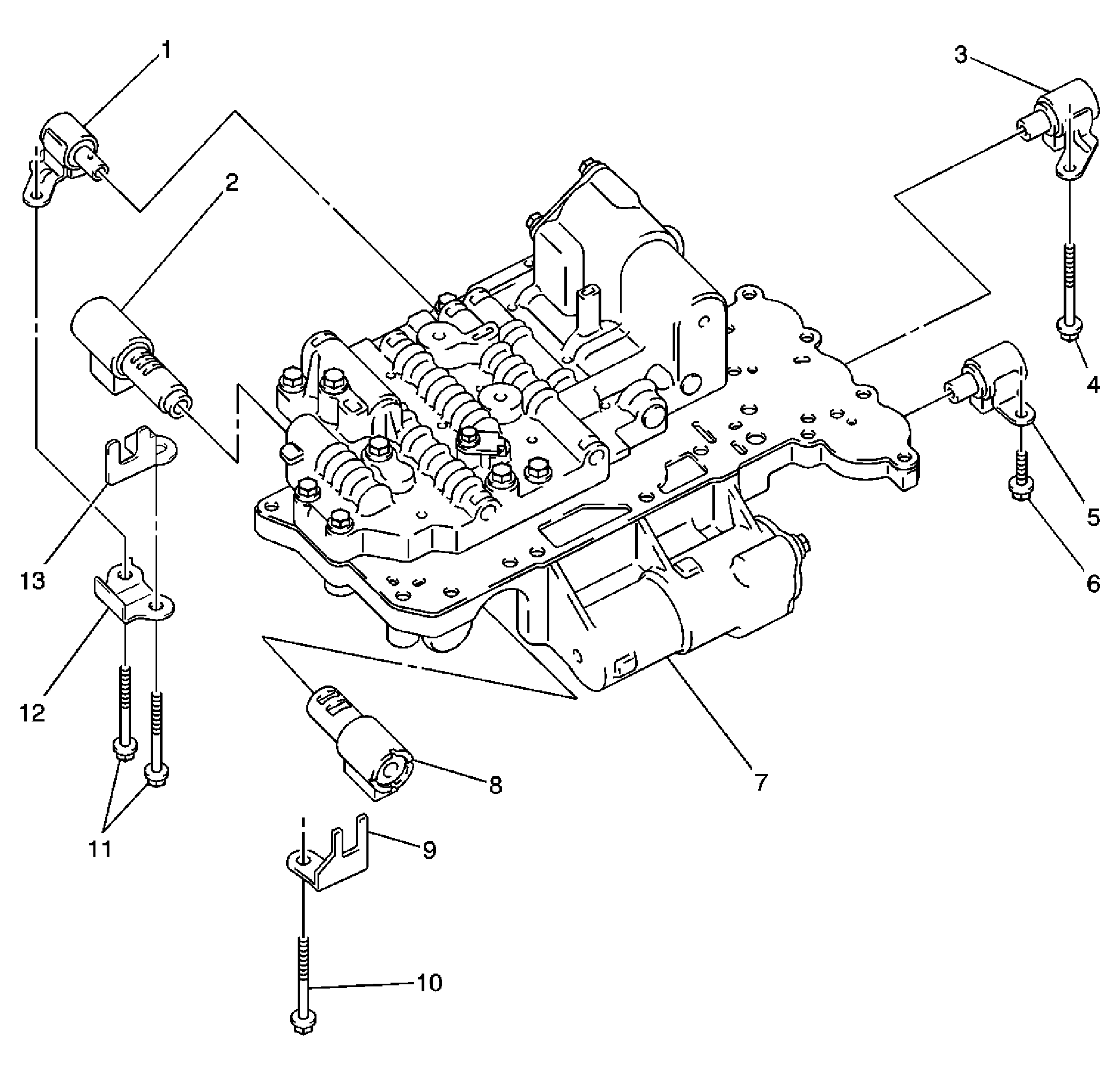

Fig 14: Shift Solenoid Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Solenoid Valve ST
2	Shift Solenoid Valve SLT
3	Shift Solenoid Valve S1
4	Shift Solenoid Valve Bolt
5	Shift Solenoid Valve S2
6	Shift Solenoid Valve Bolt
7	Valve Body
8	Shift Solenoid Valve SLU
9	Lock Plate
10	Lock Plate Bolt
11	Lock Plate Bolt
12	No. 3 Solenoid Lock Plate
13	No. 1 Solenoid Lock Plate

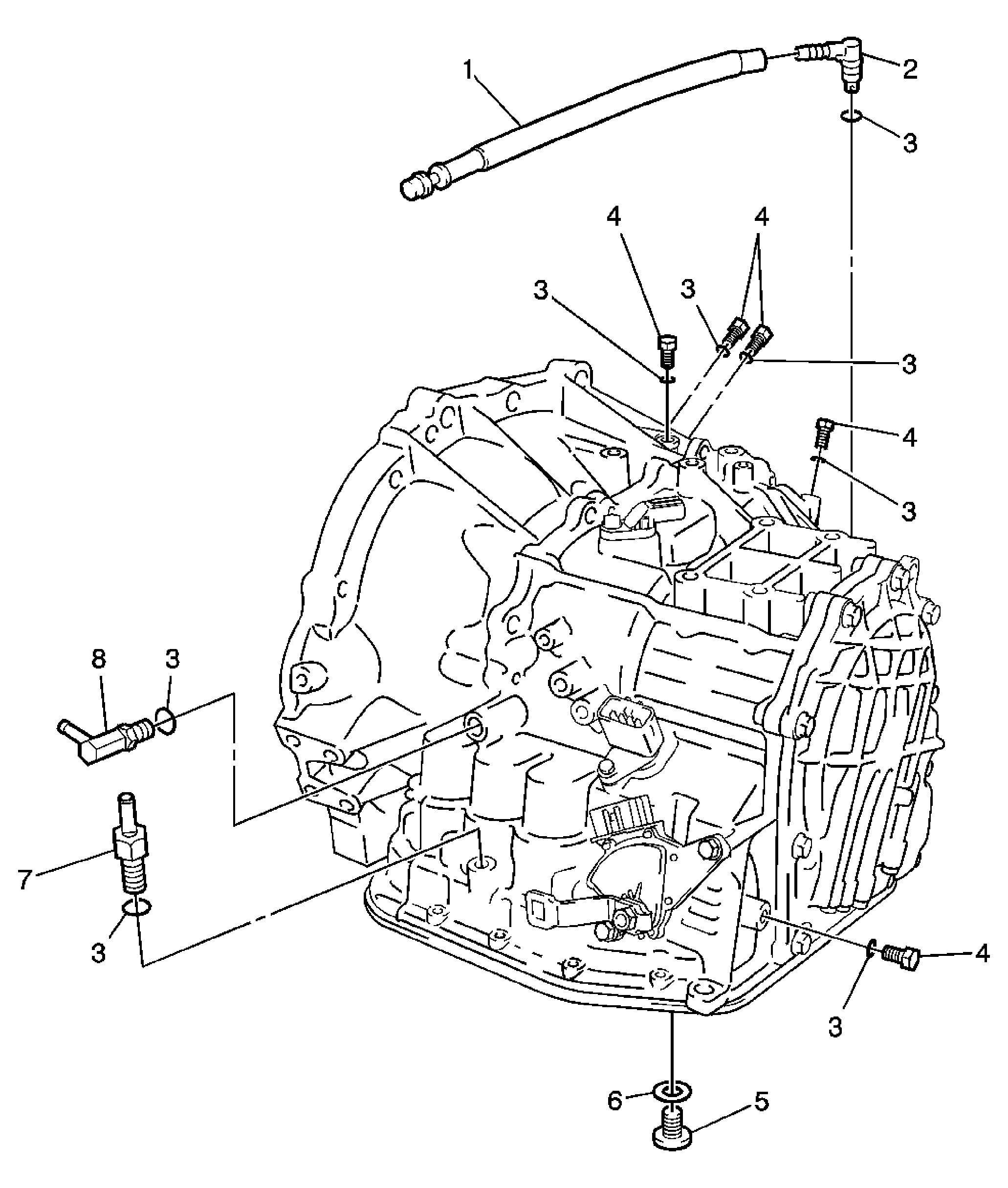

Fig 15: Transmission Plug Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Breather Plug Hose
2	Breather Plug
3	O-ring
4	No. 1 Transaxle Case Plug
3	O-ring
4	No. 1 Transaxle Case Plug
3	O-ring
3	O-ring
4	No. 1 Transaxle Case Plug
3	O-ring
8	Oil Cooler Tube Union
3	O-ring
7	Oil Cooler Tube Union
3	O-ring
3	O-ring
4
6	Gasket
5	Drain Plug

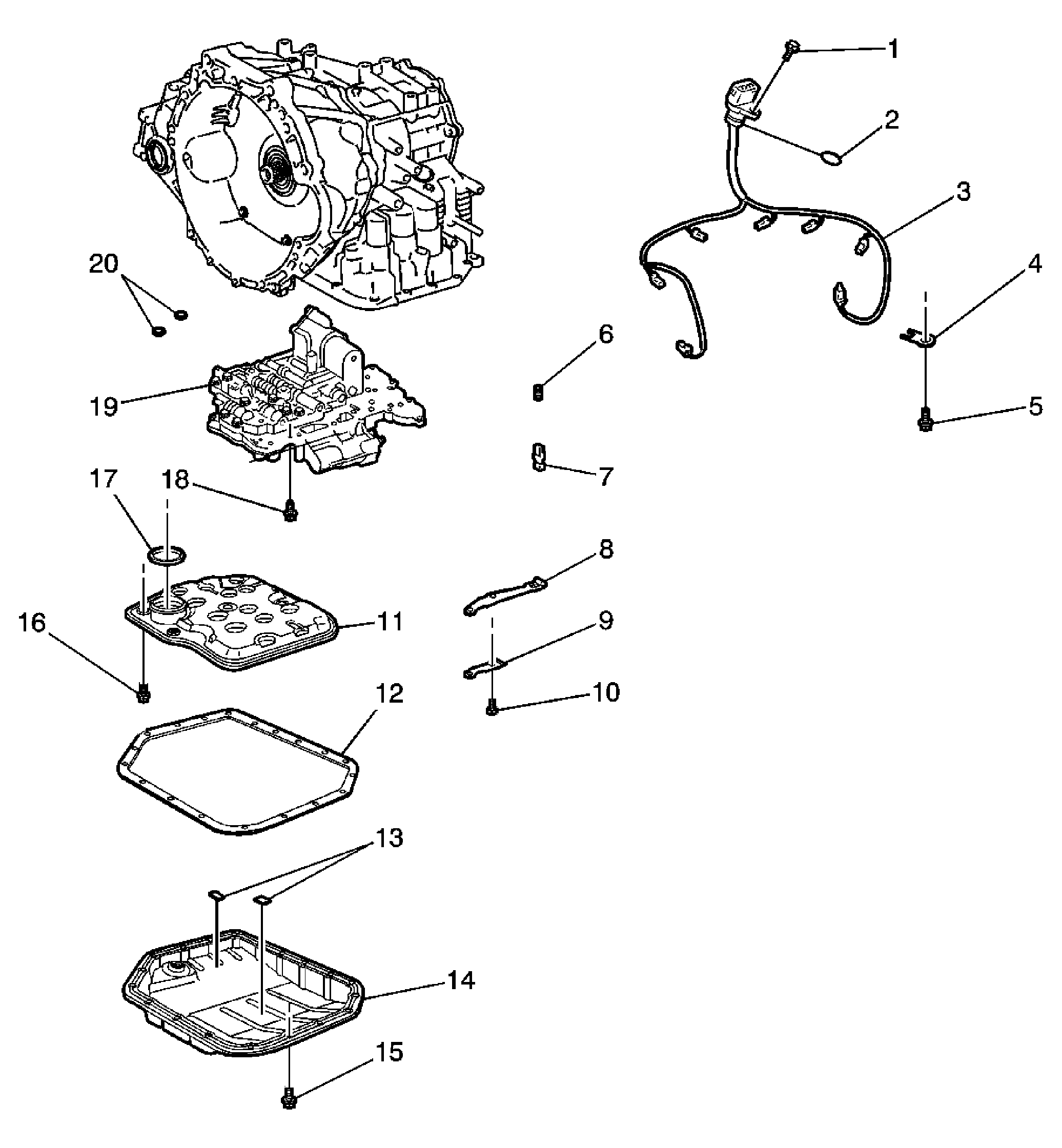

Fig 16: Valve Body and Related Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt
2	O-ring
3	Transmission Wire
4	Lock Plate
5	Bolt
6	Check Ball Body Spring
7	Check Ball Body
8	Manual Detent Spring
9	Manual Detent Spring Cover
10	Bolt
11	Valve Body Oil Strainer Assembly
12	Oil Pan Gasket
13	Magnet
14	Automatic Transaxle Oil Pan Sub-Assembly
15	Bolt
16	Bolt
17	Oil Strainer Gasket
18	Bolt
19	Transmission Valve Body Assembly
20	Transaxle Case 2nd Brake Gasket
