Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Refer to Fastener Caution .

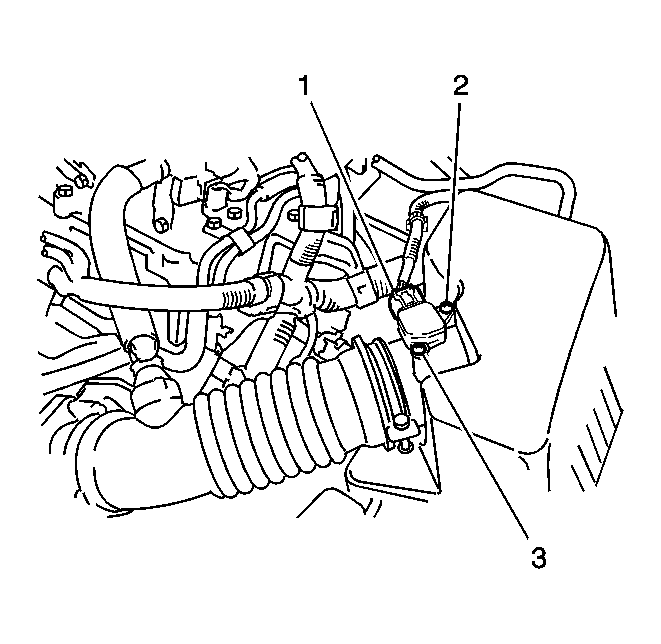

    Fig 1: Identifying Mass Air Flow Meter & Screws
    GM2016622Courtesy of GENERAL MOTORS CORP.
  1. Install mass air flow meter
  2. Install the mass air flow meter with the 2 screws.

    Tighten:  1.0 N.m (9 lb in)

  3. Connect the mass air flow meter connector.
