Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the heated oxygen sensor connector.
  2. Remove the grommet and pull the sensor connector out of the cabin through the floor panel.
    3. Fig 1: View Of Wire Harness Clamp Bracket & Wire Harness Clamp
    GM2016682Courtesy of GENERAL MOTORS CORP.
  3. Remove the wire harness clamp bracket and disconnect the wire harness clamp.

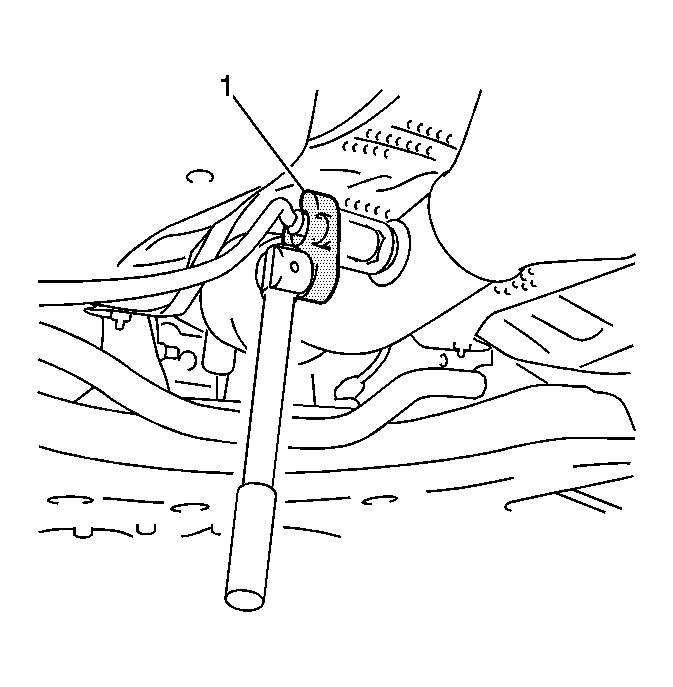

    4. Fig 2: Identifying Heated Oxygen Sensor
    GM2016684Courtesy of GENERAL MOTORS CORP.
  4. Using SST  , remove the heated oxygen sensor.
