Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the windshield wiper motor and link assembly. Refer to Windshield Wiper Motor Replacement .
  2. Remove the outer cowl top panel.
  3. Remove the engine cover. Refer to Engine Cover Replacement .
    4. Fig 1: Locating Air Fuel Ratio Sensor Connector And Clamp
    GM2016674Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the air fuel ratio sensor connector and clamp.

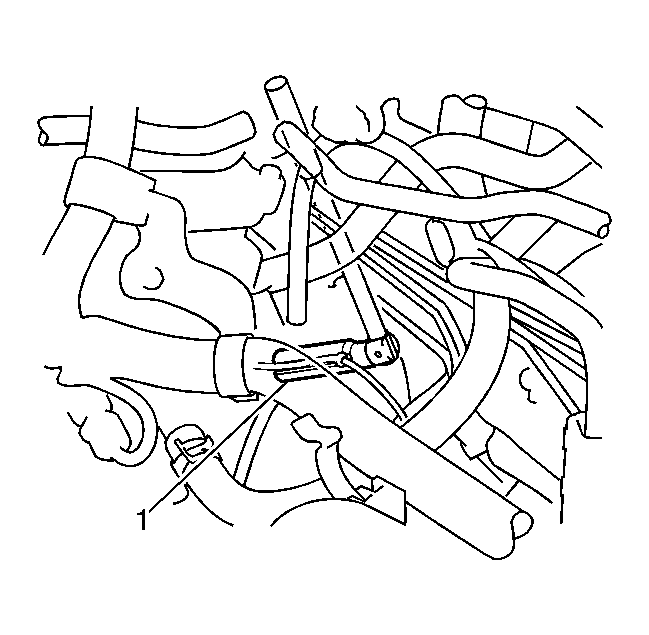

    5. Fig 2: Identifying Air Fuel Ratio Sensor
    GM2016676Courtesy of GENERAL MOTORS CORP.
  5. Using SST  , remove the air fuel ratio sensor.
