Removal Procedure

WARNING: This page is about a different variant/trim than selected.

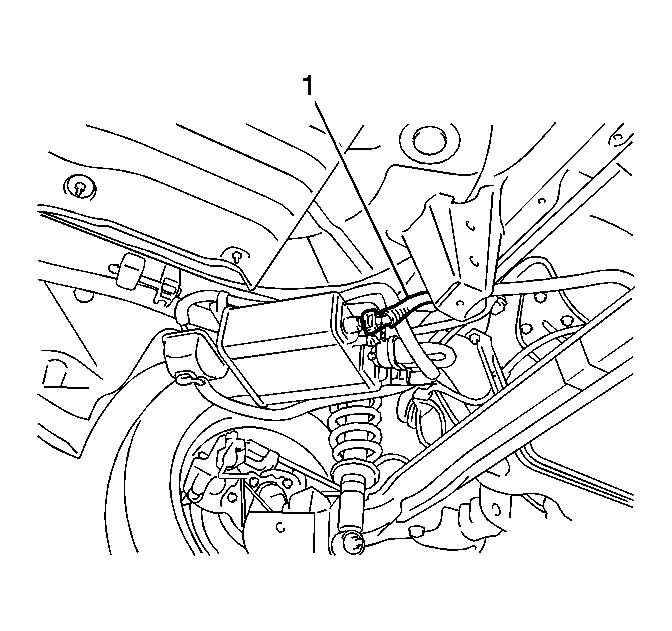

    Fig 1: View Of Fuel Tank Vent Hose & Charcoal Canister Assembly
    GM2016470Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the fuel tank vent hose from the charcoal canister assembly.

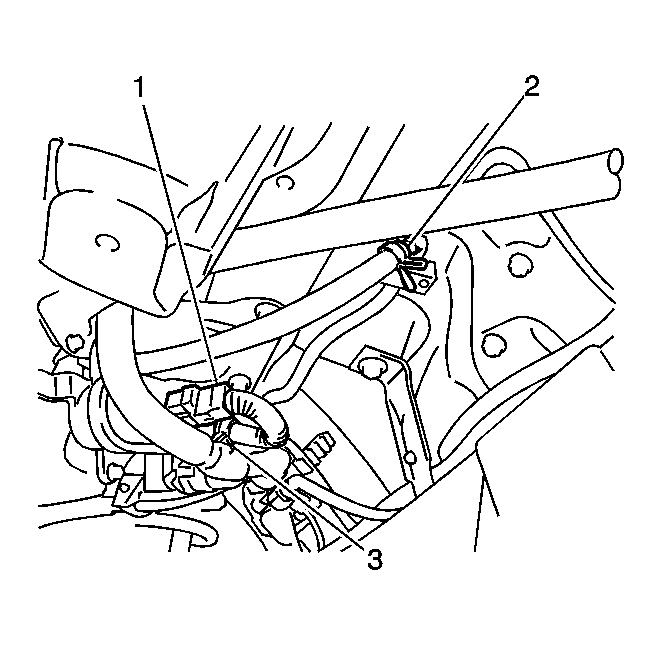

    2. Fig 2: Identifying Purge Line Hose & Charcoal Canister Assembly
    GM2016471Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the vapor pressure sensor connector.
  3. Disconnect the wire harness clamp.
  4. Disconnect the purge line hose from the charcoal canister assembly.

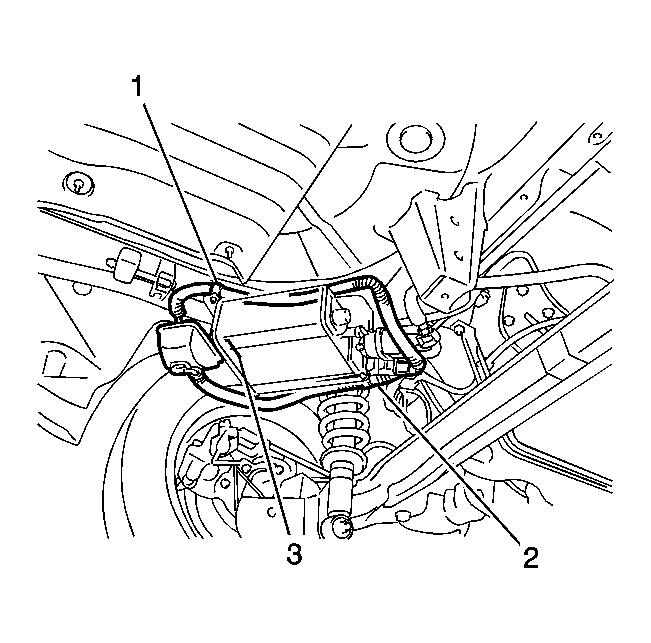

    5. Fig 3: Identifying Charcoal Canister Filter Sub-Assembly & Charcoal Canister Assembly
    GM2016473Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the charcoal canister filter sub-assembly from the charcoal canister assembly.

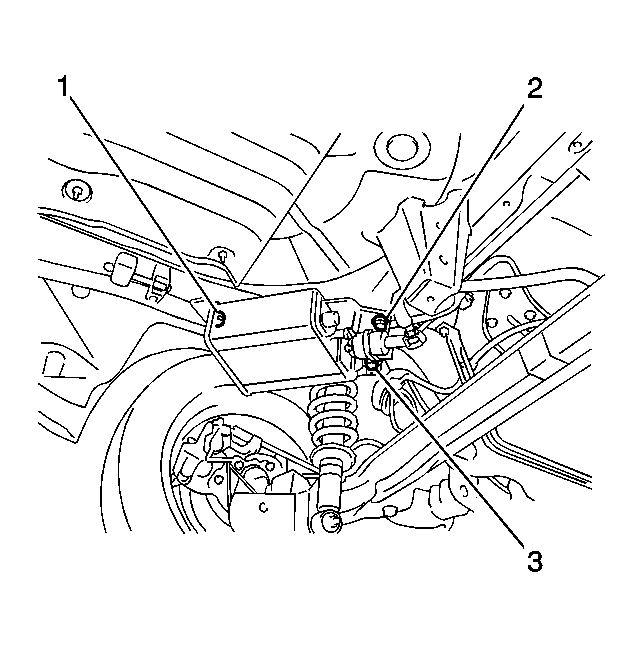

    6. Fig 4: Locating Charcoal Canister Assembly Bolts
    GM2016474Courtesy of GENERAL MOTORS CORP.
  6. Remove the 3 bolts and charcoal canister assembly.
