Removal Procedure

WARNING: This page is about a different variant/trim than selected.

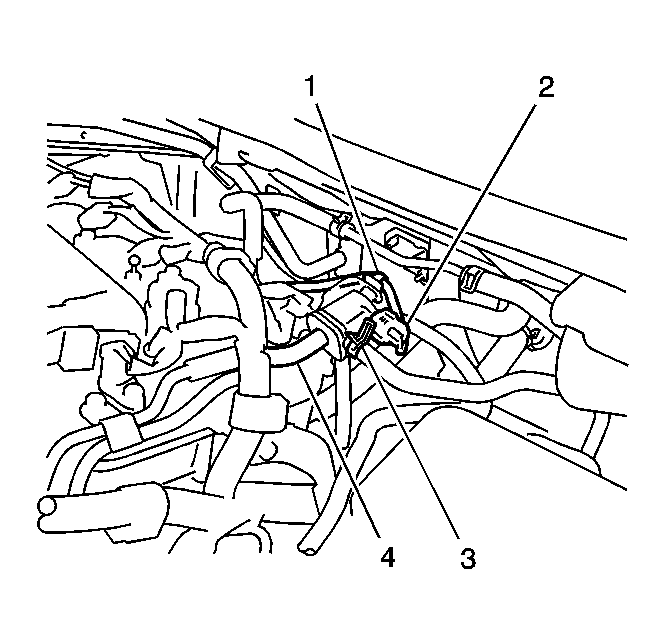

    Fig 1: Identifying Duty Vacuum Switching Valve Connector, Vacuum Hoses And Wire Harness Clamp
    GM2016483Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Disconnect the duty vacuum switching valve connector, 2 vacuum hoses and wire harness clamp.

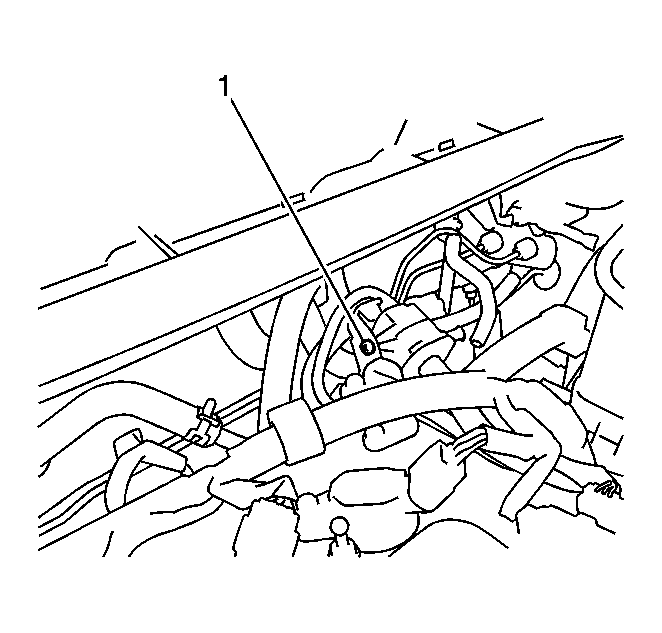

    3. Fig 2: Locating Duty Vacuum Switching Valve Screw
    GM2016485Courtesy of GENERAL MOTORS CORP.
  3. Remove the screw and duty vacuum switching valve.
