Installation Procedure

WARNING: This page is about a different variant/trim than selected.

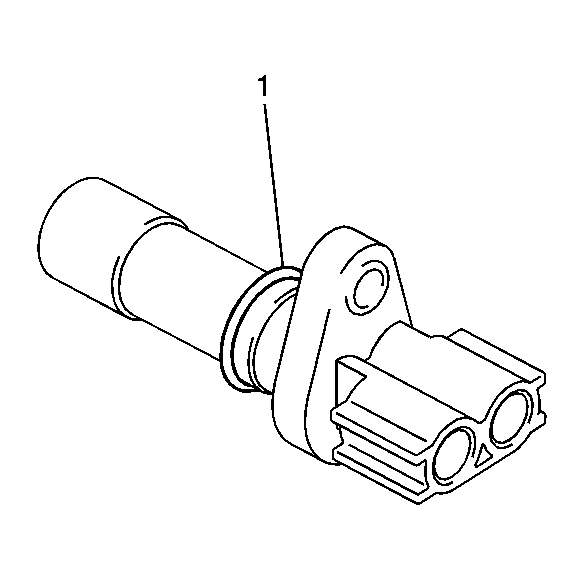

    Fig 1: Identifying O-Ring & Crank Position Sensor
    GM2016637Courtesy of GENERAL MOTORS CORP.
  1. Install the crank position sensor.
  2. Apply a light coat of engine oil to the O-ring on the crank position sensor.

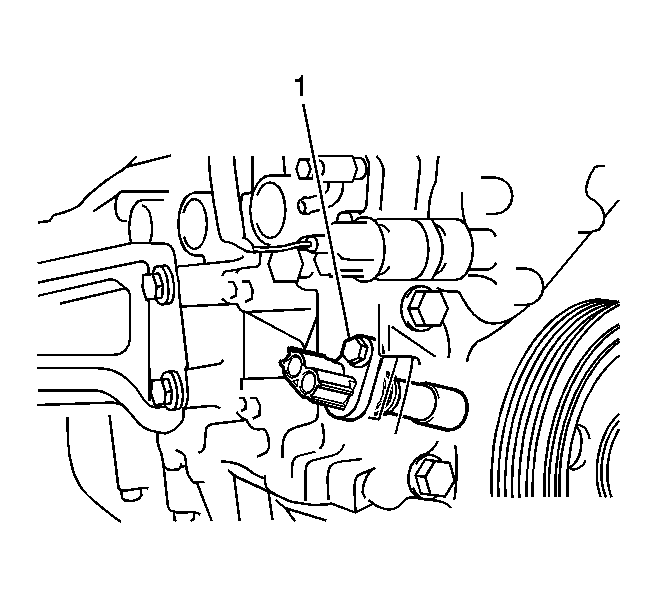

    3. Fig 2: Locating Crank Position Sensor Bolt
    GM2016635Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  3. Install the crank position sensor with the bolt.

    Tighten:  Tighten the bolt to 9.0N.m (80 lb in)

  4. Connect the crank position sensor connector.
  5. Inspect for an oil leak.
  6. Install the right engine under cover.
