Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.
    2. Fig 1: Identifying Duty Vacuum Switching Valve Connector And Engine Wire Harness Clamps
    GM2016625Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the duty vacuum switching valve connector and the 3 engine wire harness clamps.

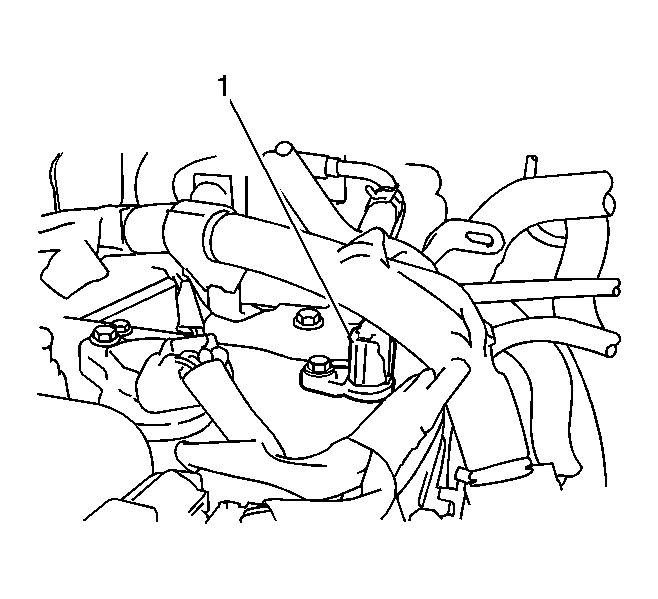

    3. Fig 2: Locating No. 1 Camshaft Position Sensor
    GM2016626Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the No. 1 camshaft position sensor connector.

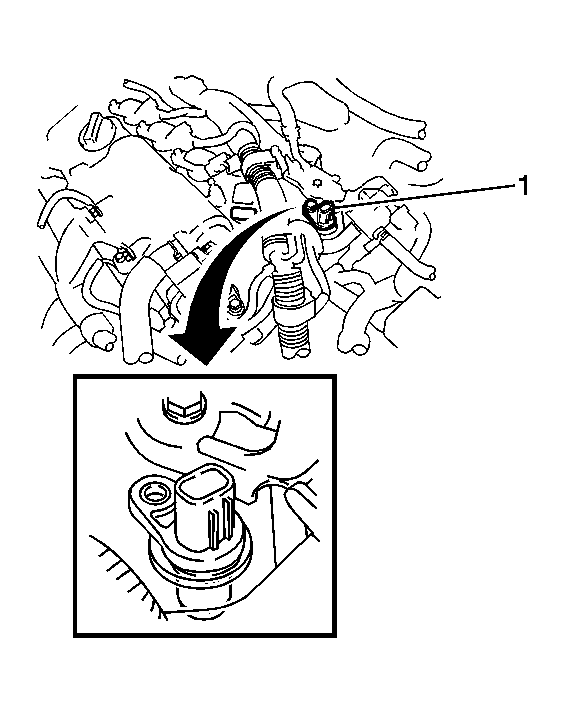

    4. Fig 3: View Of No. 1 Camshaft Position Sensor Bolt
    GM2016628Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt and No. 1 camshaft position sensor.
