Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover. Refer to Engine Cover Replacement .

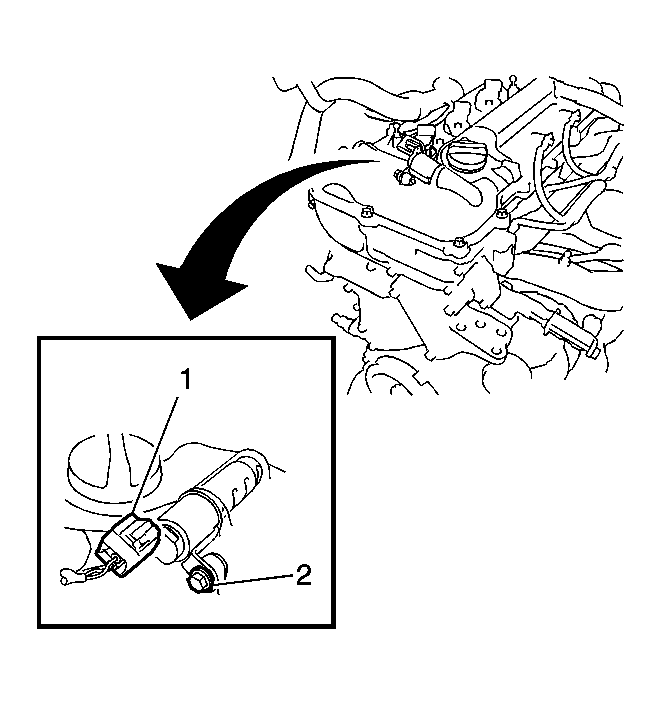

    2. Fig 1: View Of Camshaft Timing Oil Control Valve Assembly Connector & Bolt
    GM2016602Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the camshaft timing oil control valve assembly connector.
  3. Remove the bolt and remove the camshaft timing oil control valve assembly.

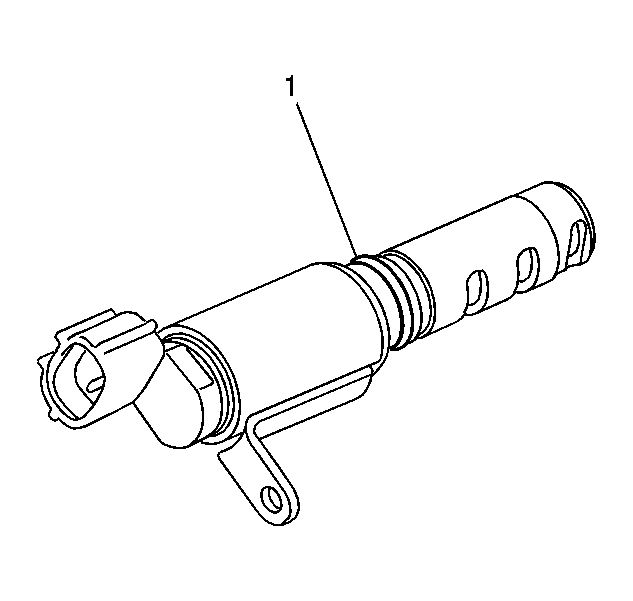

    4. Fig 2: Identifying O-Ring & Camshaft Timing Oil Control Valve Assembly
    GM2016605Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring from the camshaft timing oil control valve assembly.
