Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying O-Ring & Camshaft Timing Oil Control Valve Assembly
    GM2016605Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not twist the O-ring.
  1. Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.
    2. NOTE: Refer to Fastener Caution .
    Fig 2: View Of Camshaft Timing Oil Control Valve Assembly Connector & Bolt
    GM2016602Courtesy of GENERAL MOTORS CORP.
  2. Install the camshaft timing oil control valve assembly and wire harness bracket with the bolt.

    Tighten:  Tighten the bolt to 10 N.m (7 lb ft)

  3. Connect the camshaft timing oil control valve assembly connector.

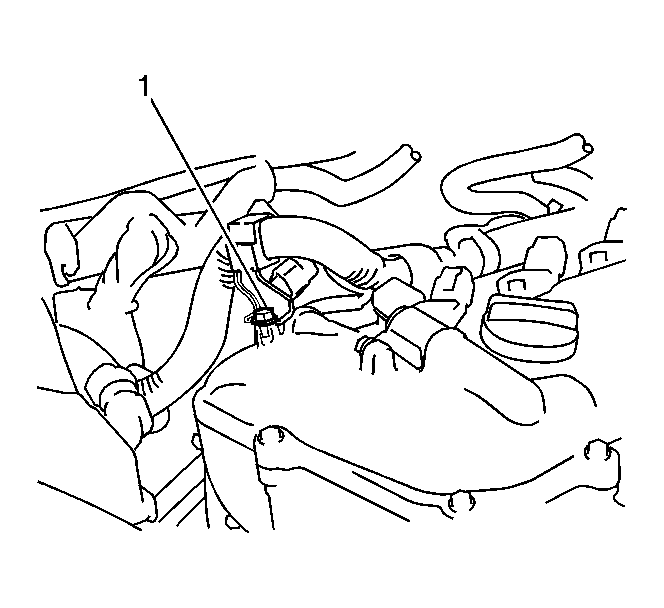

    4. Fig 3: Locating Camshaft Timing Oil Control Valve Assembly Bolt
    GM2016597Courtesy of GENERAL MOTORS CORP.
  4. Install the wire harness bracket with the bolt.

    Tighten:  Tighten the bolt to 8.4 N.m (74 lb in)

  5. Inspect for oil leaks.
  6. Install the engine cover. Refer to Engine Cover Replacement .
