Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover. Refer to Engine Cover Replacement .
    2. Fig 1: Locating Camshaft Timing Oil Control Valve Assembly Bolt
    GM2016597Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft timing oil control valve assembly.
  3. Remove the bolt and the wire harness bracket.

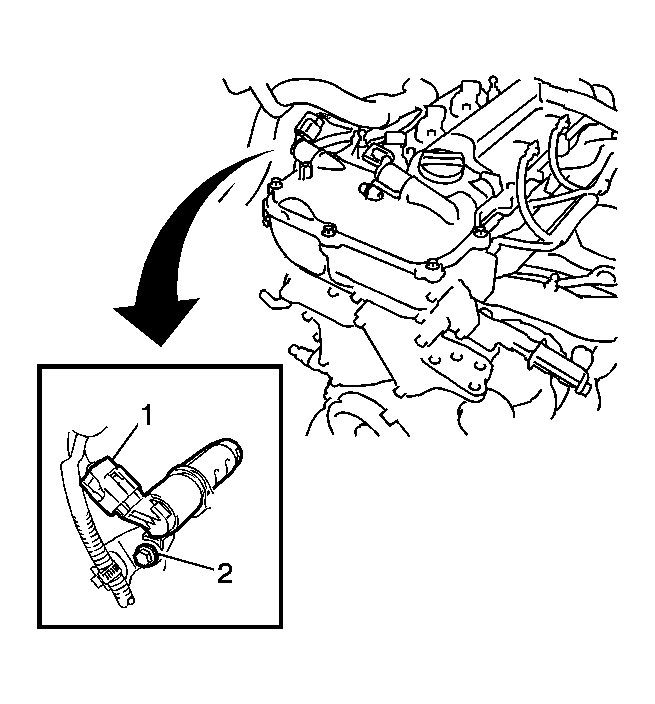

    4. Fig 2: View Of Camshaft Timing Oil Control Valve Assembly Connector & Bolt
    GM2016599Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the camshaft timing oil control valve assembly connector.
  5. Remove the bolt and the camshaft timing oil control valve assembly and separate the wire harness bracket.

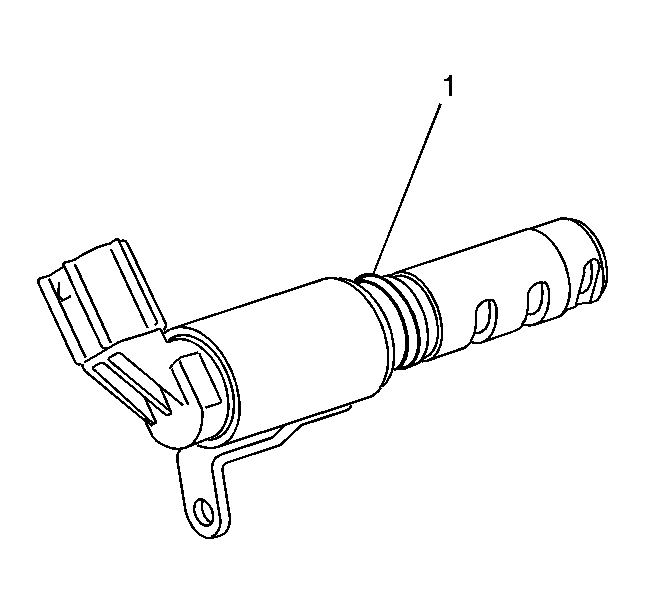

    6. Fig 3: View Of O-Ring & Camshaft Timing Oil Control Valve Assembly
    GM2016601Courtesy of GENERAL MOTORS CORP.
  6. Remove the O-ring from the camshaft timing oil control valve assembly.
