Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Refer to Fastener Caution .

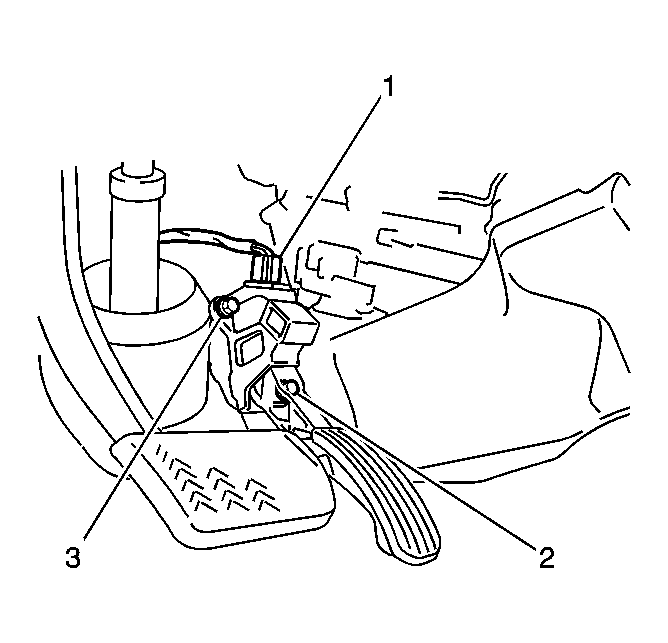

    Fig 1: Locating Accelerator Pedal Position Sensor Components
    GM2016531Courtesy of GENERAL MOTORS CORP.
  1. Install accelerator pedal assembly.
  2. Install the accelerator pedal assembly with the 2 bolts.

    Tighten:  5.5 N.m (49 lb in)

  3. Install the accelerator pedal assembly connector.
