Electronic Ignition (EI) System Description: Notes
WARNING: This page is about a different variant/trim than selected.

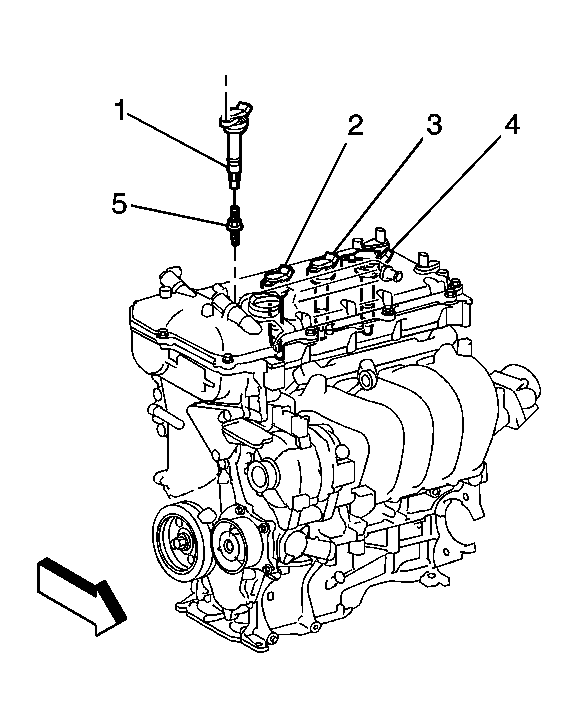

| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 1 |
| 2 | Ignition Coil 2 |
| 3 | Ignition Coil 3 |
| 4 | Ignition Coil 4 |
| 5 | Spark Plug |
The electronic ignition system is of the direct ignition system (DIS) type and is controlled by the powertrain control module (PCM). The electronic ignition system is composed of the following components:
- The PCM
- The 4 ignition coil assemblies
- The crankshaft position (CKP) sensor
- The camshaft position (CMP) sensor
- The spark plugs
The electronic ignition system provides the following benefits:
- Improved ignition timing accuracy
- Reduced high-voltage losses
- Enhanced overall ignition system reliability
The electronic ignition system components cannot be disassembled or repaired. A component that is correctly diagnosed as faulty must be replaced as a complete unit.
