Camshaft Position (CMP) Sensor
WARNING: This page is about a different variant/trim than selected.

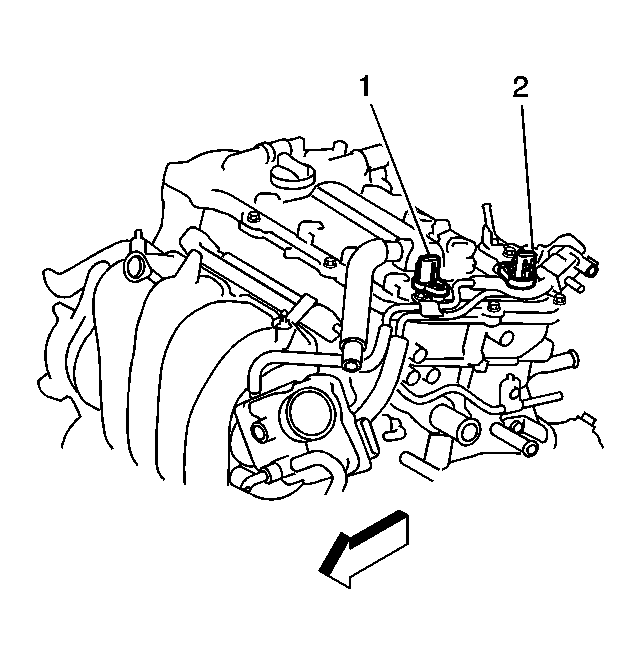

| Callout | Component Name |
|---|---|
| 1 | Intake CMP Sensor |
| 2 | Exhaust CMP Sensor |
The camshaft position (CMP) sensors are located in the cylinder head cover near the number 4 cylinder. Each CMP sensor is a signal generator. The PCM relies on the information provided by the CMP sensor in order to perform the following:
- To optimize the ignition timing
- To optimize the fuel delivery
- To monitor applicable CMP actuator solenoid valve operation
