Inflatable Restraint Steering Wheel Module Coil Centering

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Block Tooth Of Steering Shaft Assembly In 12 O'clock Position
    GM293254Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.

  1. Verify the following conditions before centering the SIR coil:
    • The wheels on the vehicle are straight ahead.
    • The block tooth (1) of the steering shaft assembly is in the 12 o'clock position.
    • The ignition switch assembly is in the LOCK position.

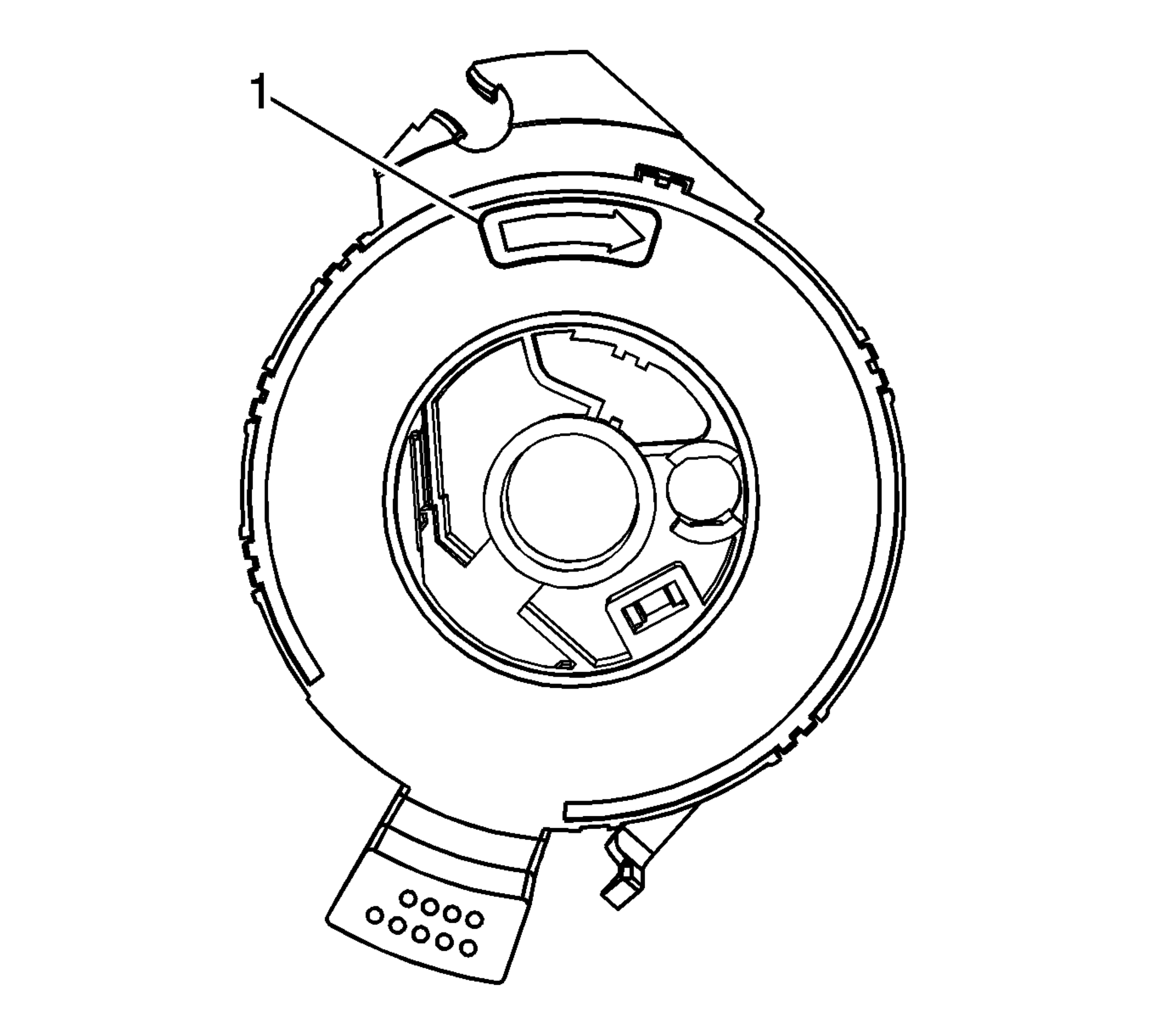

    2. Fig 2: Coil Hub Rotation
    GM2267271Courtesy of GENERAL MOTORS COMPANY
  2. Hold the coil with the face up.
  3. Rotate the coil hub in the direction of the arrow (1) until the coil ribbon stops.
  4. Rotate the coil hub, slowly, counterclockwise, for 2 1/2 revolutions. This is the CENTER position.
  5. While maintaining the coil hub in the CENTER position, align the centered coil with the horn tower and slide the coil onto the steering shaft assembly.
