Wheels/Vehicle Underbody Component Views

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Axle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - Right Rear (F55)
2	Wheel Speed Sensor - Right Rear
3	Body Harness
4	Wheel Speed Sensor - Left Rear
5	Suspension Position Sensor - Left Rear (F55), Automatic Level Control Module (FE1, FE3, F41)
6	X308 Rear Wheel Speed Harness to Chassis Harness
7	Rear Wheel Speed Harness

Fig 2: Fuel Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Fuel Pump and Sender Assembly
3	Fuel Sender Connector
4	Evaporative Emission (EVAP) Canister
5	Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Fig 3: Rear Suspension Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - Right Rear (F55)
2	Automatic Level Control (ALC) Compressor (FE1/F55)
3	Suspension Damper - Left Rear (F55)

Fig 4: Rear Air Suspension Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Spring - Right Rear (F38)
2	Suspension Position Sensor - Right Rear (F38)
3	Air Spring - Left Rear (F38)
4	Suspension Position Sensor - Left Rear (F38)

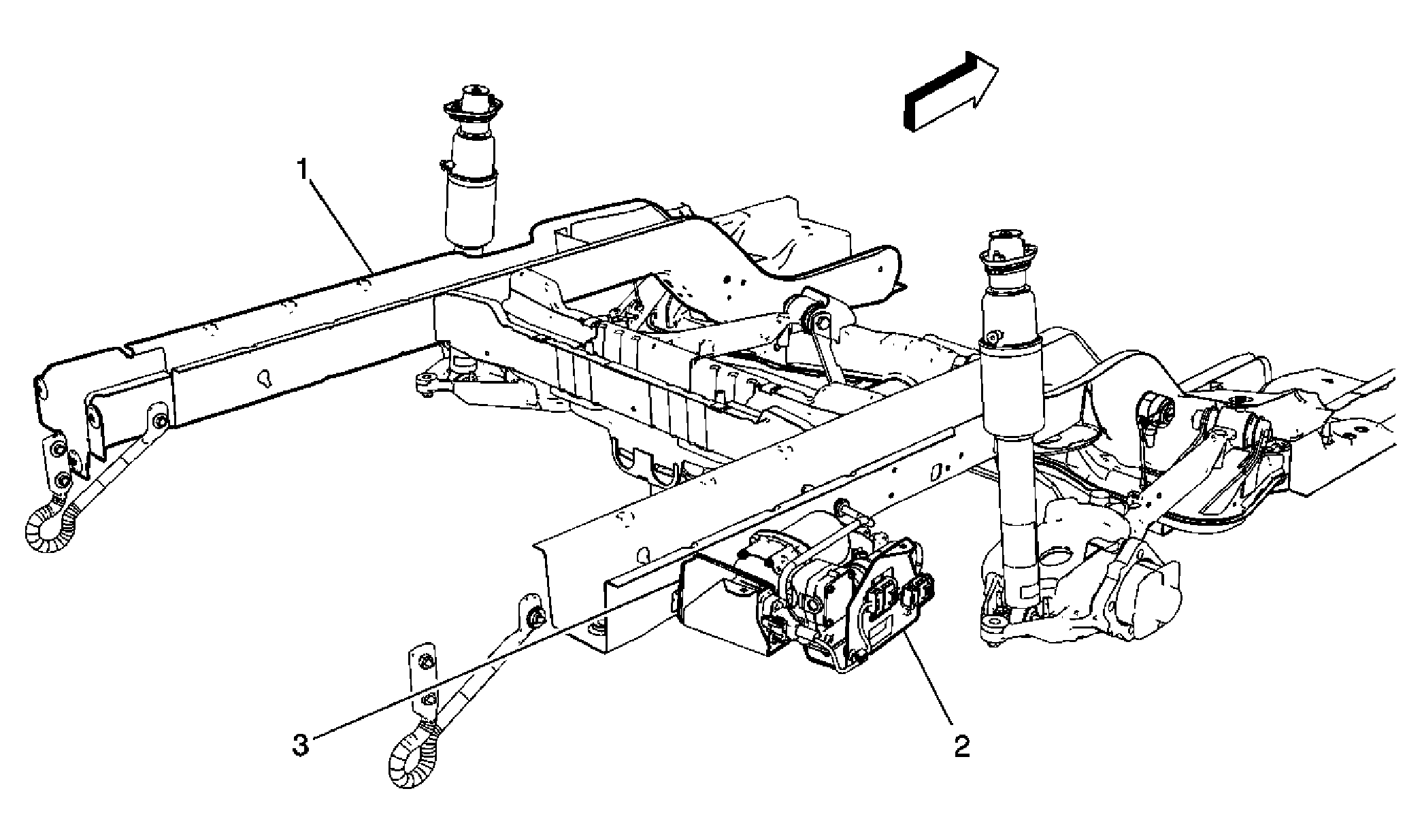

Fig 5: View Of Rear Frame Underbody Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear Compartment Floor Rail
2	Air Compressor Unit
3	Air Suspension Control Module (F38)
