Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Quarter Panel Component Views - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module (F55)
2	X494 Body Harness to Rear Fascia Harness (UFR)
3	G403
4	Front and Rear Object Alarm Module (UFR)

Fig 2: Quarter Panel - LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

Fig 3: Behind Passenger Seat - RR (VCIM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Back Body Panel
2	Vehicle Interface Communication Module (VCIM) (UE1)

Fig 4: Behind Passenger Seat - RR (Export)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Back Body Panel
2	Video Tuner (Export)

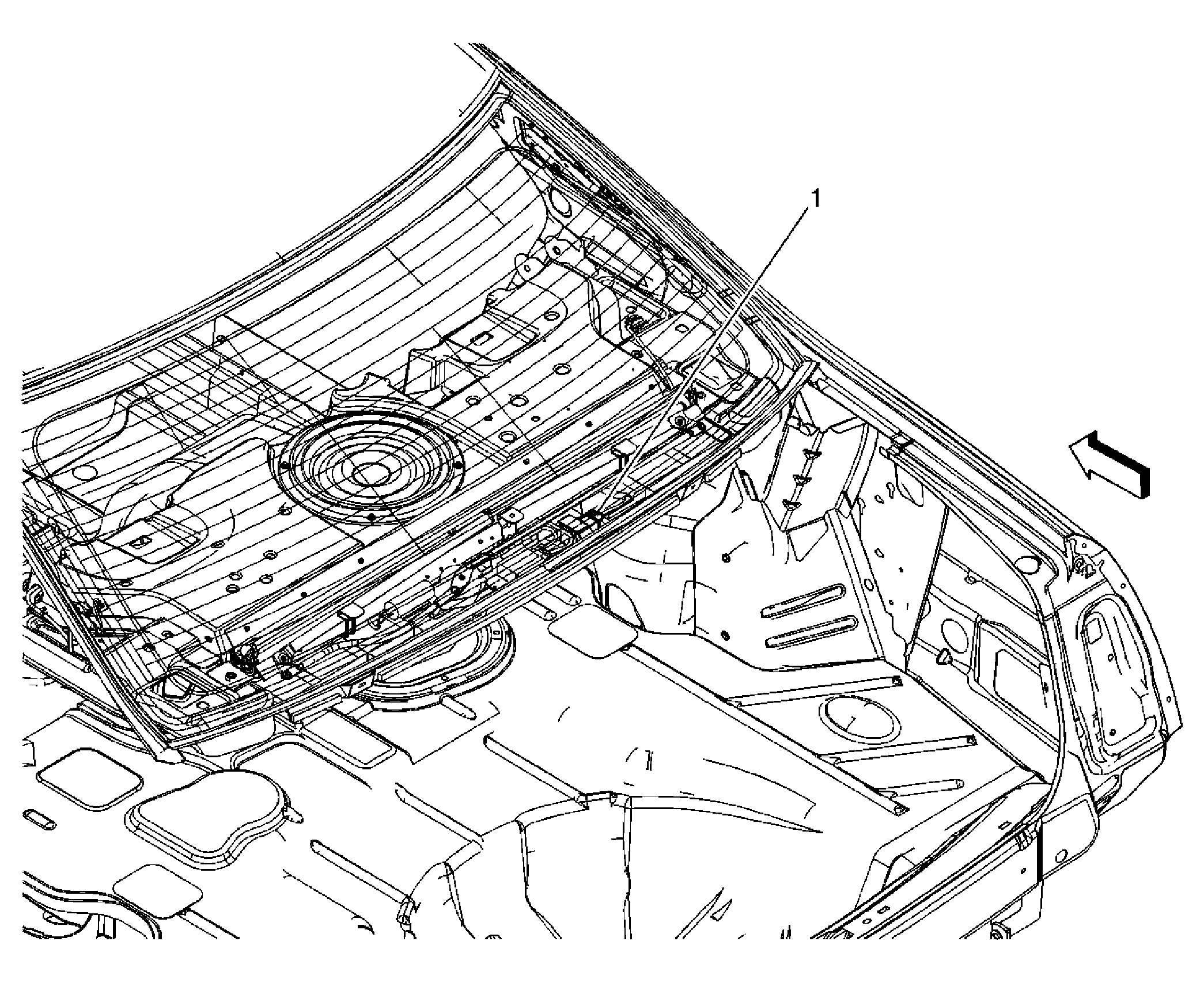

Fig 5: View Of Rear Sunshade (DE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Sunshade Module (DE9)

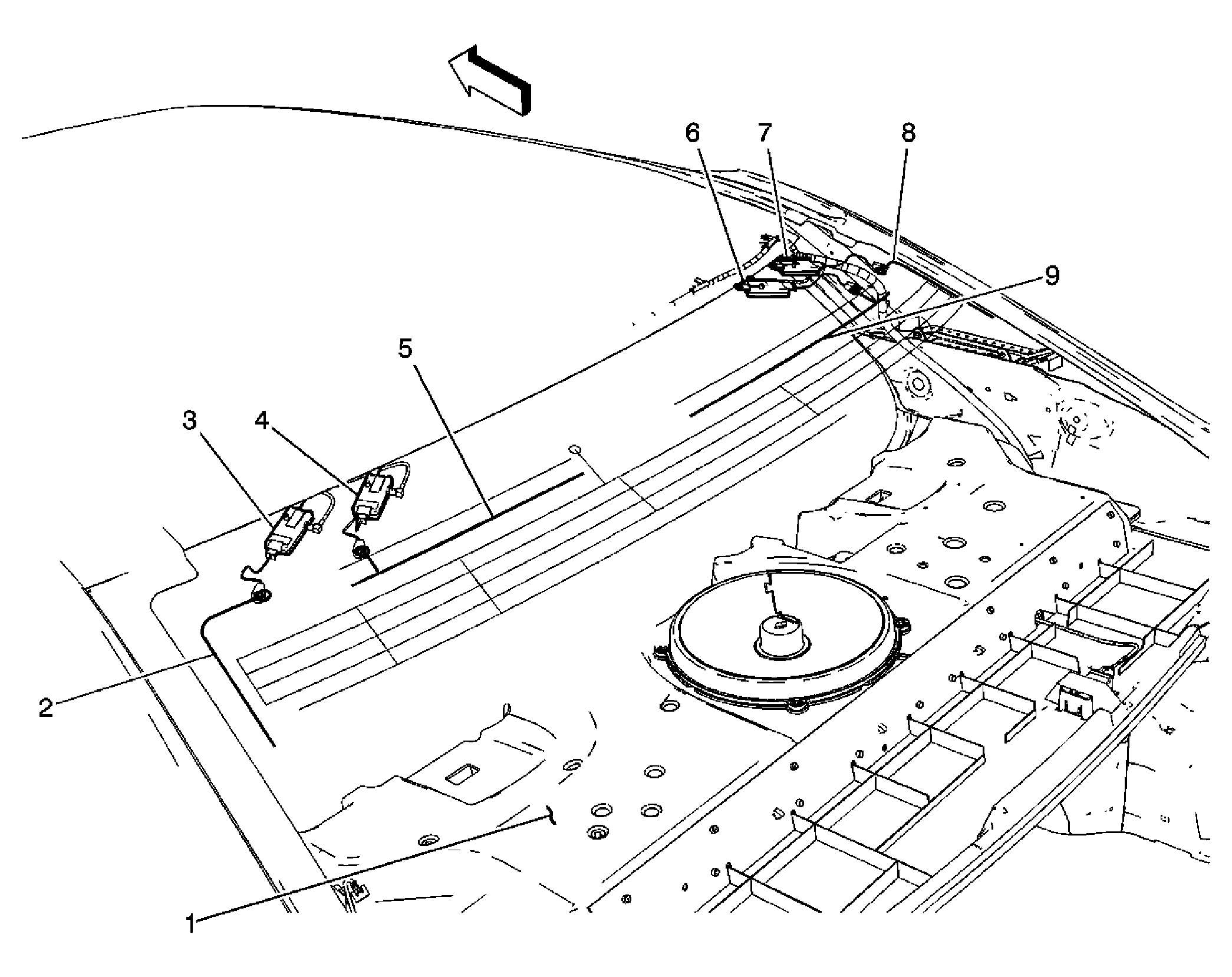

Fig 6: View Of Rear Window Antenna Components (Japan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Shelf
2	TV Antenna - Left Rear (Japan)
3	TV Antenna Amplifier - Left Rear (Japan)
4	TV Antenna Amplifier - Left Rear Center (Japan)
5	TV Antenna - Left Rear Center (Japan)
6	TV Antenna Amplifier - Right Rear Center (Japan)
7	TV Antenna Amplifier - Right Rear (Japan)
8	TV Antenna - Right Rear (Japan)
9	TV Antenna - Right Rear Center (Japan)

Fig 7: Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
2	Deck Lid Harness

Fig 8: LR Headliner Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window
2	Radio Antenna Module

Fig 9: Cellular and Digital Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306
2	Defogger Grid
3	G307
4	Radio Antenna Module
5	Cellular/GPS (UE1)and/or Digital Antenna (U2K)
6	Vehicle Communication Interface Module (VCIM) (UE1)
7	Digital Radio Receiver (DRR) (U2K)

Fig 10: Behind The Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Rear Park Assist Indicator (UFR)
3	Speaker - Right Rear
4	Vehicle Communication Interface Module (VCIM) (UE1)
5	Amplifier (UQA)
6	Rear Compartment Courtesy Lamp
7	Speaker - Left Rear

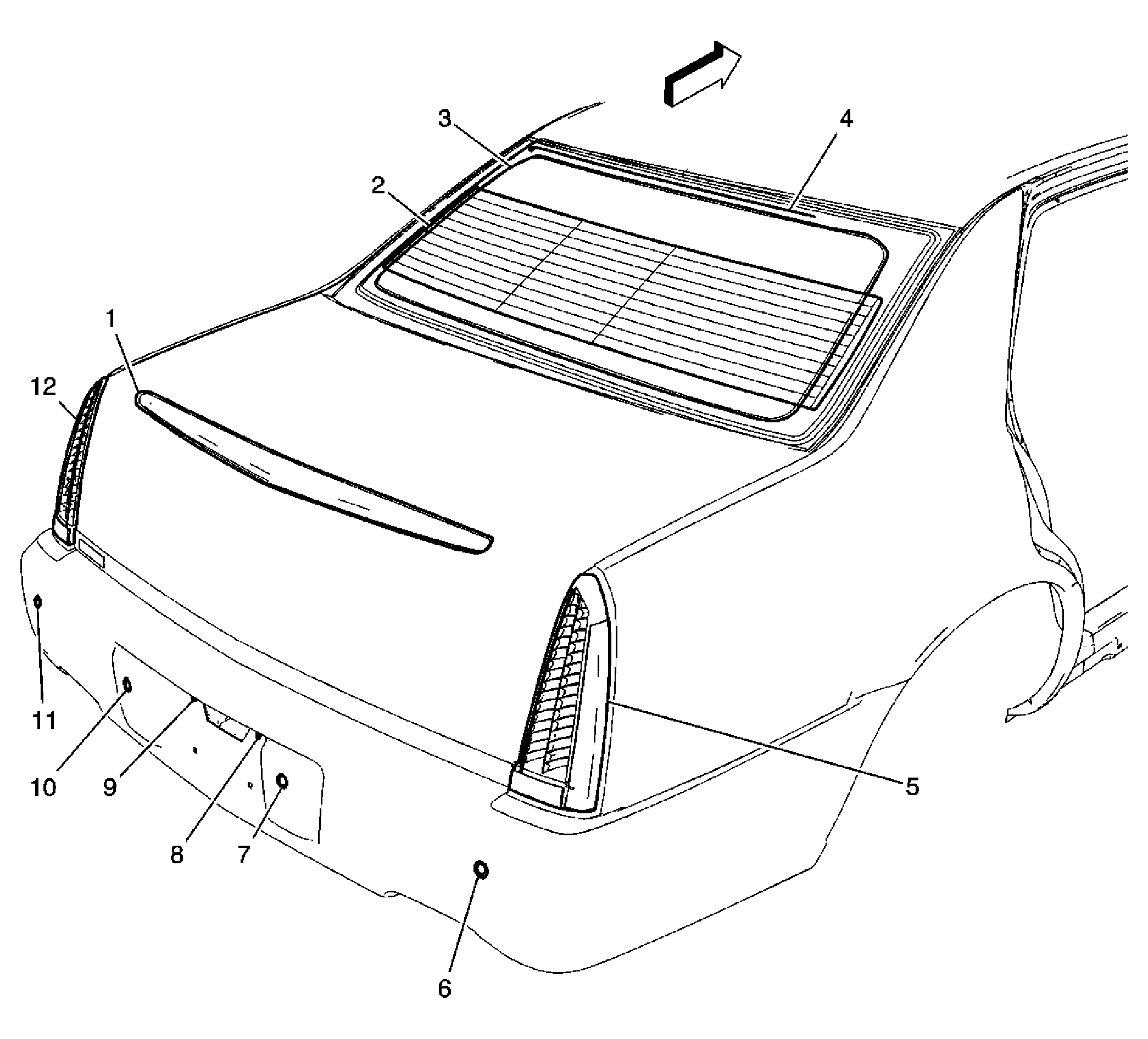

Fig 11: Locating Components In Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Rear Window Defogger
3	Remote Start Antenna (RSA)
4	Radio Rear Glass Antenna
5	Tail Lamp - Right
6	Object Alarm Sensor - Right Rear Corner (UFR)
7	Object Alarm Sensor - Right Rear Middle (UFR)
8	License Lamp - Right
9	License Lamp - Left
10	Object Alarm Sensor - Left Rear Middle (UFR)
11	Object Alarm Sensor - Left Rear Corner (UFR)
12	Tail Lamp - Left

Fig 12: View Of Left & Right Side Object Detection

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Object Detection - Left (UFT)
2	Side Object Detection - Right (UFT)
