Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Headliner Component Views - Bottom
GM1657333Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunshade - Left Rear (DC5)
2 Rear Park Assist Indicator (UFR)
3 Courtesy Lamp - Right Rear (V4U)
4 Sunshade - Right Rear (DC5)
5 Garage Door Opener Transmitter (UG1)
6 Noise Compensation Microphone (UQA)
7 Courtesy Lamp - Right Front (V4U)
8 Sunshade - Right Front
9 Sunshade Switch (DE9)
10 Inflatable Restraint I/P Module Indicator
11 Inside Rearview Mirror (ISRVM)
12 Onstar Button Assembly (UE1)
13 Sunroof Switch (CF5)
14 Sunshade - Left Front (- V4U)
15 Courtesy Lamp - Left Front (V4U)
16 Cellular Microphone (UE1/U3Q/U3R/U3U)
17 Courtesy Lamp - Left Rear (V4U)
Fig 2: Headliner Components - Top
GM1657336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Control Module (CF5)
2 Courtesy Lamp - Right Rear (V4U)
3 Rear Park Assist Indicator
4 Courtesy Lamp - Left Rear (V4U)
5 Sunroof Motor (CF5)
6 Sunroof Assembly

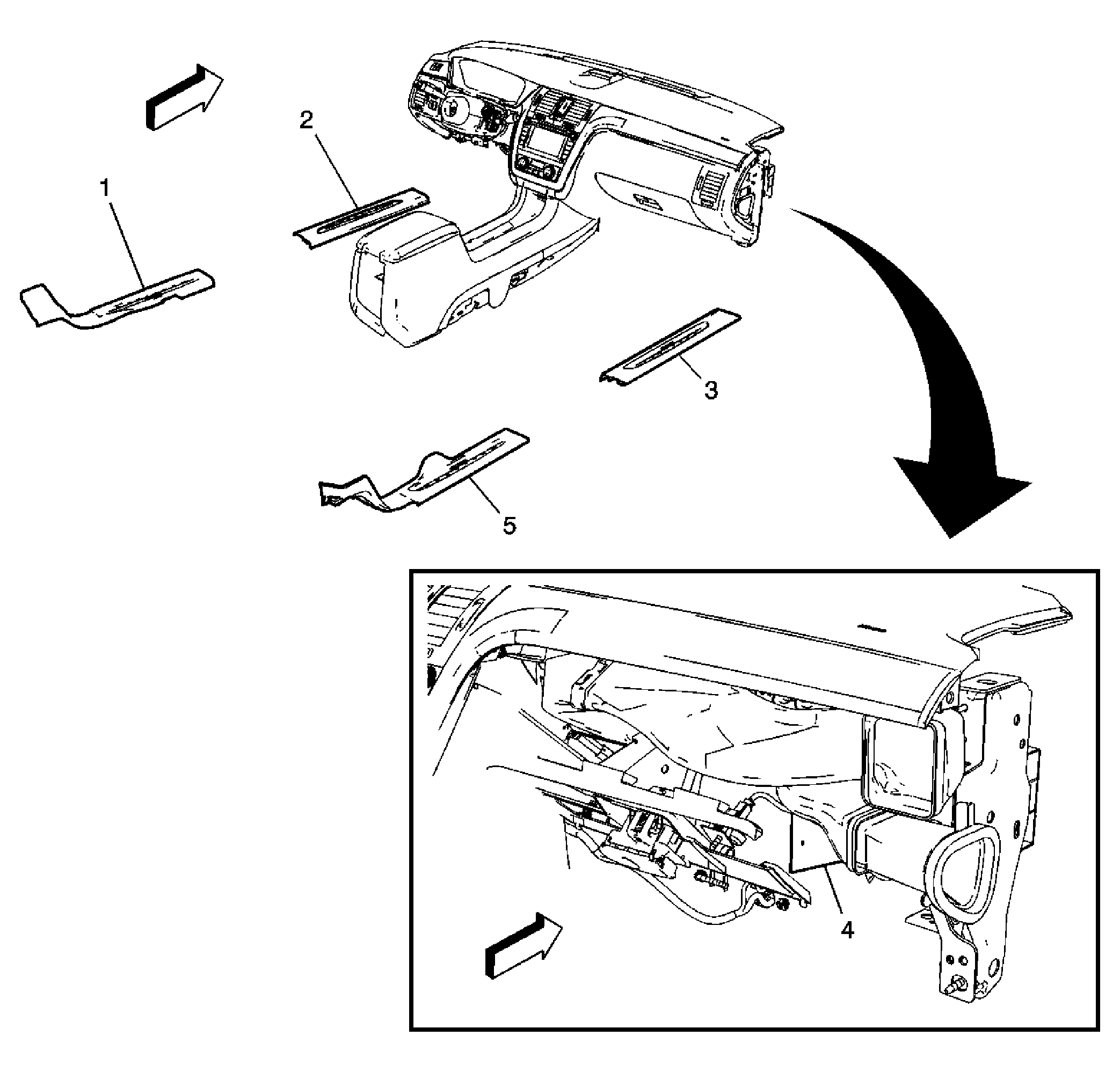

Fig 3: Sill Plate Lighting & Courtesy Lamp Module (C97)
GM2010112Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sillplate Lamp - Left Rear
2 Sillplate Lamp - Left Front
3 Sillplate Lamp - Right Front
4 Courtesy Lamp Module
5 Sillplate Lamp - Right Rear
Fig 4: Overhead Console Component Views
GM1697766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Garage Door Opener Buttons (UG1)
2 Noise Compensation Microphone (UQA)
3 Courtesy Lamp Switch - Right Front
4 Sun Shade Switch (DE9)
5 Courtesy Lamp - Right Front
6 Sunroof Vent Switch (CF5)
7 Inflatable Restraint PASSENGER OFF/ON Indicator
8 Rear Window Sunshade Module
9 Rear Window Sunshade Assembly
10 X395
11 Sunroof Open Switch (CF5)
12 Courtesy Lamp - Left Front
13 Courtesy Lamp Switch - Left Front
14 Cellular Microphone (UE1)
Fig 5: Upper Center Of Windshield Component View
GM1358074Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Moisture Sensor (CE1)
Fig 6: Battery Cable Harness
GM1619132Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Floor Panel
3 Battery
4 G303
5 Fuse Block - Rear Terminal Connector
Fig 7: Under Passenger Seat - RR Component Views
GM1656936Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 G303
3 Battery Current Sensor
4 X337 Negative Battery Cable to the Body Harness
5 Rear Seat Back Cushion
6 Battery Positive Cable
7 Fuse Block - Rear
8 Battery
9 Negative Battery Cable
Fig 8: Above Quarter Panel - RR
GM1656975Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G307
2 Rear Seat Back Body Panel
Fig 9: Passenger - LR Area
GM1657000Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G306
2 Inflatable Restraint Roof Rail Module - Left
3 X321 Body Harness to Headliner Harness
4 Traffic Information Receiver (Japan)
5 X445 Body Harness to Rear Shelf Harness
6 X313 Body Harness to LR Seat Harness
7 JX300
8 G301
9 Fuse Block - Rear
10 Audio Amplifier
Fig 10: Passenger - RR Area
GM1657011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C-Pillar
2 Seat Belt Pretensioner - Right Front
3 Inflatable Restraint Side Impact Sensor - Right
4 Inflatable Restraint Roof Rail Module - Right (AY0)
5 Body Harness
Fig 11: Driver Seat Area Component Views (Body Harness)
GM1657014Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X315 Body Harness to Driver Seat Harness
2 G300
3 Inflatable Restraint Side Impact Module - Left Connector
4 G305
5 Yaw and Lateral Acceleration Sensor (JL4)
6 Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 Inflatable Restraint Side Impact Sensor - Left
8 Seat Belt Pretensioner - Left Front
9 B-Pillar
10 Inflatable Restraint Roof Rail Module - Left (AY0)
Fig 12: Entertainment Components
GM1657325Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Front Center (U57)
2 Radio
3 Speaker - Right A-Pillar Tweeter
4 Speaker - Right Front Door
5 Speaker - Right Rear Door
6 Speaker - Rear Subwoofer
7 Audio Amplifier
8 Speaker - Left Rear Door
9 Speaker - Left Front Door
10 Speaker - Left A-Pillar Tweeter
Fig 13: Rear Seat Components
GM1657273Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Lumbar Vertical Motor - Left Rear (ARC)
2 Heated Seat Element - Right Rear Back (KA6)
3 Seat Lumbar Horizontal Motor - Left Rear (ARC)
4 Heated Seat Module - Rear (KA6)
5 Seat Lumbar Horizontal Motor - Right Rear (ARC)
6 Seat Lumbar Vertical Motor - Right Rear (ARC)
7 Heated Seat Element - Left Rear Back (KA6)
8 Heated Seat Element - Left Rear Cushion (KA6)
9 Heated Seat Element - Right Rear Cushion (KA6)
Fig 14: Driver Seat Component Views
GM1702242Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Module - Left
2 Seat Back Ventilation Heat and Cool Module - Driver (KB6)
3 Seat Lumbar Motor - Driver (AL2)
4 Seat Recline Motor - Driver (AG1/A45)
5 Seat Lumbar Switch - Driver (AL2/A45)
6 Memory Seat Module (MSM) (A45/AM3/KB6)
7 Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)
8 Seat Belt Switch - Left
9 Seat Rear Vertical Motor - Driver
10 Seat Rear Vertical Position Sensor - Driver (A45)
11 Seat Horizontal Motor - Driver
12 Seat Adjuster Motor Assembly - Driver (AG1/A45)
13 Seat Horizontal Position Sensor - Driver (A45)
14 Seat Front Vertical Position Sensor - Driver (A45)
15 Seat Adjuster Switch - Driver (AG1/A45)
16 Seat Lumbar Massage Switch - Driver (AM3)
17 Seat Lumbar Massage Motor - Driver (AM3)
18 Seat Recline Position Sensor - Driver (A45)
Fig 15: Passenger Seat Components
GM1702243Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Back Ventilation Heat and Cool Module - Passenger (KB6)
2 Inflatable Restraint Side Impact Module - Right
3 Seat Lumbar Motor - Front Passenger (AL2)
4 Seat Adjuster Switch - Passenger (AG2)
5 Seat Lumbar Massage Switch - Front Passenger (AM3)
6 Inflatable Restraint Passenger Presence System (PPS) Sensor
7 Seat Belt Switch - Right
8 Inflatable Restraint Seat Position Sensor (SPS) - Right
9 Climate Control Seat Module - Front (KB6)
10 Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)
11 Inflatable Restraint Passenger Presence System (PPS) Sensor Connector
12 Seat Horizontal Motor - Passenger
13 Seat Front Vertical Motor - Passenger
14 Seat Rear Vertical Motor - Passenger
15 Seat Recline Motor - Front Passenger (AG2)
16 Seat Lumbar Massage Motor - Front Passenger
Fig 16: Top Right Side of Front Windshield
GM1711540Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Front Glass Antenna
Fig 17: Antenna Modules (UQ3 Japan)
GM1860572Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Windshield
2 FM Antenna Module
3 Antenna/TV Antenna Amplifier - Right Rear Center (U3Q, Japan)
4 Antenna/TV Antenna Amplifier - Right Rear (U3Q, Japan)
5 Video Display Module (U3Q)
6 Remote Control Door Lock Receiver (RCDLR)
7 Traffic Information Receiver (U3Q)
8 X342
9 Antenna/TV Antenna Amplifier - Left Rear Center (U3Q, Japan)
10 Antenna/TV Antenna Amplifier - Right Rear (U3Q, Japan)
11 Radio Antenna Module
12 Cellular Navigation and Digital Radio Antenna (UE1/U2K)
Fig 18: View Of Left and Right C-Pillars Harnesses Routing Views
GM1860582Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Frame - Left
2 X321
3 X304 (AY0)
4 Inflatable Restraint Roof Rail Module - Left (AY0)
5 Inflatable Restraint Roof Rail Module - Right (AY0)
6 X305 (AY0)
7 Inner Frame - Right
Fig 19: Center Rear Shelf Component Views
GM1860591Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 X395
3 Rear Window Sunshade Module (DE9)
4 Rear Window Sunshade Actuator (DE9)
5 Rear Window Sunshade (DE9)
Fig 20: View Of Passenger Seat, Seat Belt Tension Sensor & (SPS)
GM1860624Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 Inflatable Restraint Passenger Seat Belt Tension Sensor (Part of Seat Buckle Assembly)
3 Inflatable Restraint Seat Position Sensor (SPS) - Right
Fig 21: Courtesy Lamp Module Location
GM1860648Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Courtesy Lamp Module (- B9Q/V4U)
2 Headliner Harness
Fig 22: Drivers Seat
GM1860675Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Drivers Seat
2 Auxiliary Power Outlet-Front Seat
Fig 23: Top Of Rear Window Component View
GM1860618Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid
2 Remote Start Antenna
