Outside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Outside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

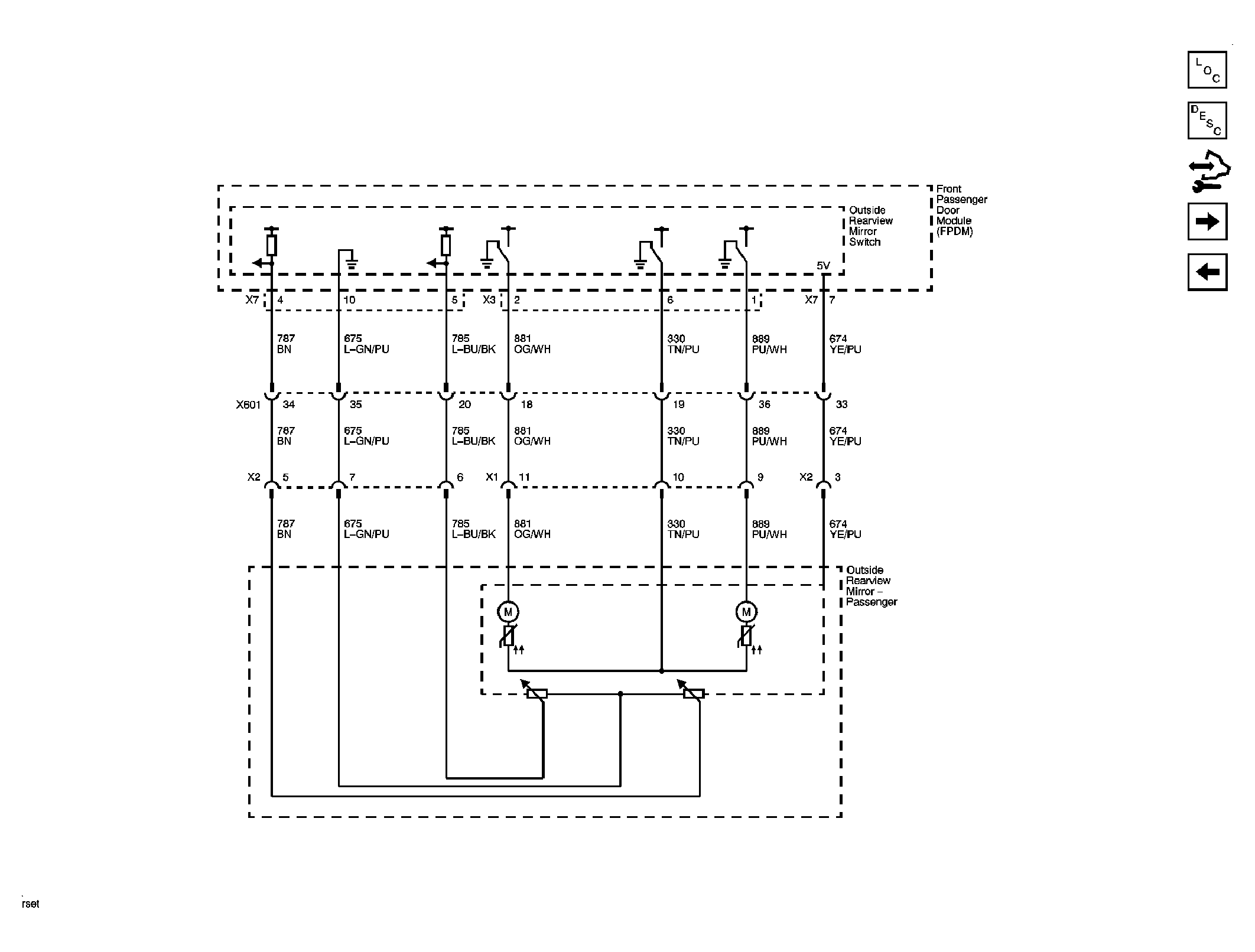

Fig 2: Passenger Outside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Fig 3: Heated Mirrors (DR2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Folding Mirrors (DL3)

Courtesy of GENERAL MOTORS CORP.
