Fuse Block - Rear Top View

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

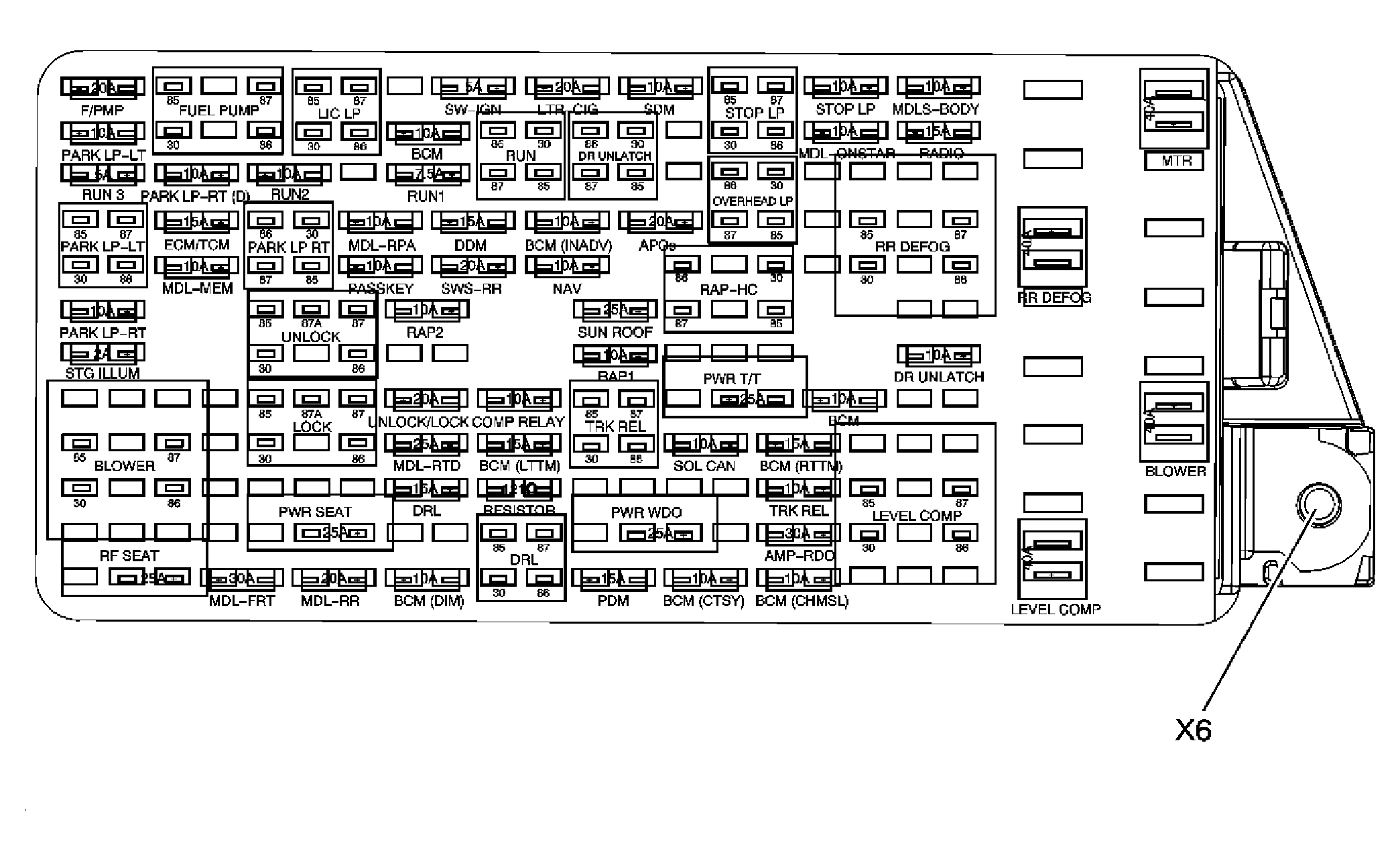

Fig 1: View Of Fuse Block - Rear Top
GM1906438Courtesy of GENERAL MOTORS CORP.
