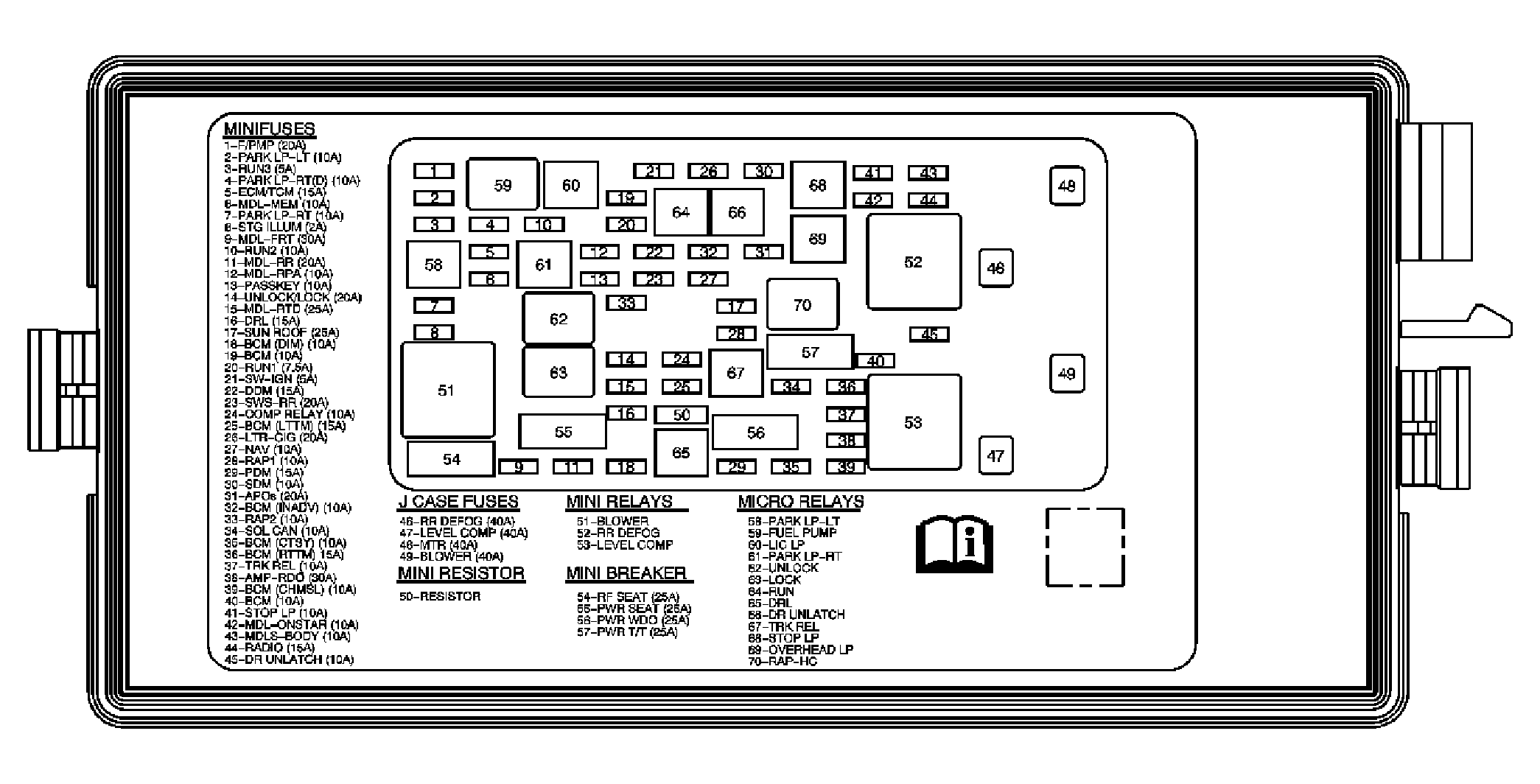

Fuse Block - Rear Label
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - Rear Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | F/PMP Fuse | 20A | FUEL PUMP Relay 59 |
| 2 | PARK LP-LT Fuse | 10A | Tail Lamp Assembly - Left, Headlamp Assembly - Left Front, Park Lamp - Left Middle (V4U), Park Lamp - Left Rear (V4U/B9Q), LIC LP Relay 60 (EXP) |
| 3 | RUN3 Fuse | 5A | Blower Motor - Auxiliary |
| 4 | PARK LP-RT (D) Fuse | 10A | Tail Lamp Assembly - Right, Headlamp Assembly - Right Front, Park Lamp - Right Middle (V4U), Park Lamp - Right Rear (V4U/B9Q), License Lamps |
| 5 | ECM/TCM Fuse | 15A | Engine Control Module (ECM), Transmission Control Module (TCM) |
| 6 | MDL-MEM Fuse | 10A | Memory Seat Module (MSM) (A45), Lumbar Adjuster Switch - Passenger (AM3) |
| 7 | PARK LP-RT Fuse | 10A | Tail Lamp Assembly - Right, Headlamp Assembly - Right Front, Park Lamp - Right Middle (V4U), Park Lamp - Right Rear (V4U/B9Q), LIC LP Relay 60 (EXP) |
| 8 | STG ILLUM Fuse | 2A | Steering Wheel Control Switch Illumination |
| 9 | MDL-FRT Fuse | 30A | Climate Control Seat Module - Front |
| 10 | RUN2 Fuse | 10A | Climate Control Seat Module - Front, Floor Shifter Assembly |
| 11 | MDL-RR Fuse | 20A | Heated Seat Module - Rear |
| 12 | MDL-RPA Fuse | 10A | Front and Rear Object Alarm Module (UFR) Side Object Detection - Left (UFT), Side Object Detection - Right (UFT) |
| 13 | PASSKEY Fuse | 10A | Theft Deterrent Module (TDM), Data Link Connector (DLC), Instrument Panel Cluster (IPC), HVAC Control Module, Clock |
| 14 | UNLOCK/LOCK Fuse | 20A | UNLOCK Relay 62, LOCK Relay 63 |
| 15 | MDL-RTD Fuse | 25A | Electronic Suspension Control Module (F55) |
| 16 | DRL Fuse | 15A | Not Used |
| 17 | SUN ROOF Fuse | 25A | Sunroof Control Module |
| 18 | BCM (DIM) Fuse | 10A | Body Control Module (BCM) |
| 19 | BCM Fuse | 10A | Body Control Module (BCM) |
| 20 | RUN1 Fuse | 7.5A | Heated Steering Wheel Control Module (KA1) |
| 21 | SW-IGN Fuse | 5A | Ignition Switch |
| 22 | DDM Fuse | 15A | Driver Door Module (DDM) |
| 23 | SWS-RR Fuse | 20A | Seat Lumbar Switch - Left Rear, Seat Lumbar Switch - Right Rear, Radio Antenna Module (B9Q) |
| 24 | COMP RELAY Fuse | 10A | LEVEL COMP Relay 53, Automatic Level Control (ALC) Compressor, Automatic Level Control Module, Air Suspension Control Module (ASCM) (F38) |
| 25 | BCM (LTTN) Fuse | 15A | Body Control Module (BCM) |
| 26 | LTR-CIG Fuse | 20A | Cigar Lighter, Auxiliary Power Outlet - Console (AQ9) |
| 27 | NAV Fuse | 10A | Traffic Information Receiver (U3Q/Japan), Video Display (U3Q/Japan) |
| 28 | RAP1 Fuse | 10A | Floor Shifter Assembly (AQ9), Park Switch (AQ9), Traffic Information Receiver (U3Q) |
| 29 | PDM Fuse | 15A | Front Passenger Door Module (FPDM) |
| 30 | SDM Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Passenger Presence System (PPS) Module |
| 31 | APOs Fuse | 20A | Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Left Rear, Auxiliary Power Outlet - Right Rear |
| 32 | BCM (INADV) Fuse | 10A | Body Control Module (BCM) |
| 33 | RAP2 Fuse | 10A | Rear Window Sunshade Module (DE9), Upfitter Provisions (V4U), Inside Rearview Mirror, Outside Moisture Sensor (CE1) |
| 34 | SOL CAN Fuse | 10A | Evaporative Emission (EVAP) Valve Canister Vent Solenoid |
| 35 | BCM (CTSY) Fuse | 10A | Body Control Module (BCM) |
| 36 | BCM (RTTN) Fuse | 15A | Body Control Module (BCM) |
| 37 | TRK REL Fuse | 10A | Rear Compartment Lid Latch |
| 38 | AMP-RDO Fuse | 30A | Amplifier |
| 39 | BCM (CHMSL) Fuse | 10A | Body Control Module (BCM) |
| 40 | BCM Fuse | 10A | Body Control Module (BCM) |
| 41 | STOP LP Fuse | 10A | STOP LP Relay 68 |
| 42 | MDL-ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) |
| 43 | MDLS-BODY Fuse | 10A | Lane Departure Warning Camera (UFL), Garage Door Opener Transmitter, Inside Rearview Mirror (TQ5), Distance Sensing Cruise Control Module (K59), HVAC Control Module - Auxiliary (CJ4), Remote Control Door Lock Receiver (RCDLR) |
| 44 | RADIO Fuse | 15A | Radio, Digital Radio Receiver (U2K) |
| 45 | DR UNLATCH Fuse | 10A | DR UNLATCH Relay 66 |
| 46 | RR DEFOG Fuse | 40A | RR DEFOG Relay 52 |
| 47 | LEVEL COMP Fuse | 40A | LEVEL COMP Relay 53 |
| 48 | MTR Fuse | 40A | Blower Motor Control Module (CJ2) |
| 49 | BLOWER Fuse | 40A | BLOWER Relay 51 (CJ4) |
| 50 | RESISTOR | 121 Ω | Data Link Communication |
| 51 | BLOWER Relay (CJ4) | - | Blower Motor Control Module |
| 52 | RR DEFOG Relay | - | Rear Window Defogger |
| 53 | LEVEL COMP Relay | - | Air Suspension Control Module (ASCM) (F38), Automatic Level Control (ALC) Compressor |
| 54 | RF SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Passenger, Lumbar Adjuster Switch - Passenger |
| 55 | PWR SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Driver, Lumbar Adjuster Switch - Driver, Memory Seat Module (MSM) (A45) |
| 56 | PWR WDO Circuit Breaker | 25A | Window Motor - Driver, Window Motor - Left Rear, Door Park Relay Assembly - Left Middle (V4U), Door Park Relay Assembly - Right Middle (V4U), Window Motor - Right Rear, Window Motor - Front Passenger |
| 57 | PWR T/T Circuit Breaker | 25A | Memory Seat Module (MSM) (A45/N37) |
| 58 | PARK LP-LT Relay | - | PARK LP-LT, PARK LP-RT Fuses |
| 59 | FUEL PUMP Relay | - | Fuel Pump and Sender Assembly |
| 60 | LIC LP Relay (EXP) | - | License Lamps |
| 61 | PARK LP-RT Relay (EXP) | - | PARK LP-RT Fuse |
| 62 | UNLOCK Relay | - | Door Latch Assembly - Left Rear, Door Latch Assembly - Right Rear |
| 63 | LOCK Relay | - | Door Latch Assembly - Left Rear, Door Latch Assembly - Right Rear |
| 64 | RUN Relay | - | RUN1, RUN2, RUN3 Fuses |
| 65 | DRL Relay | - | Not Used |
| 66 | DR UNLATCH Relay (V4U) | - | Door Release Switch - Left Rear (V4U), Door Release Switch - Left Middle (V4U), Door Release Switch - Right Middle (V4U), Door Release Switch - Right Rear (V4U) |
| 67 | TRK REL Relay | - | TRK REL Fuse |
| 68 | STOP LP Relay (EXP) | - | Tail Lamp Assembly - Left, Tail Lamp Assembly - Right |
| 69 | OVERHEAD LP Relay (V4U) | - | Overhead Console Lamp (V4U) |
| 70 | RAP-HC Relay | - | RAP1, RAP2, SUN ROOF Fuses |
