Front Seat Armrest Stowage Compartment Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

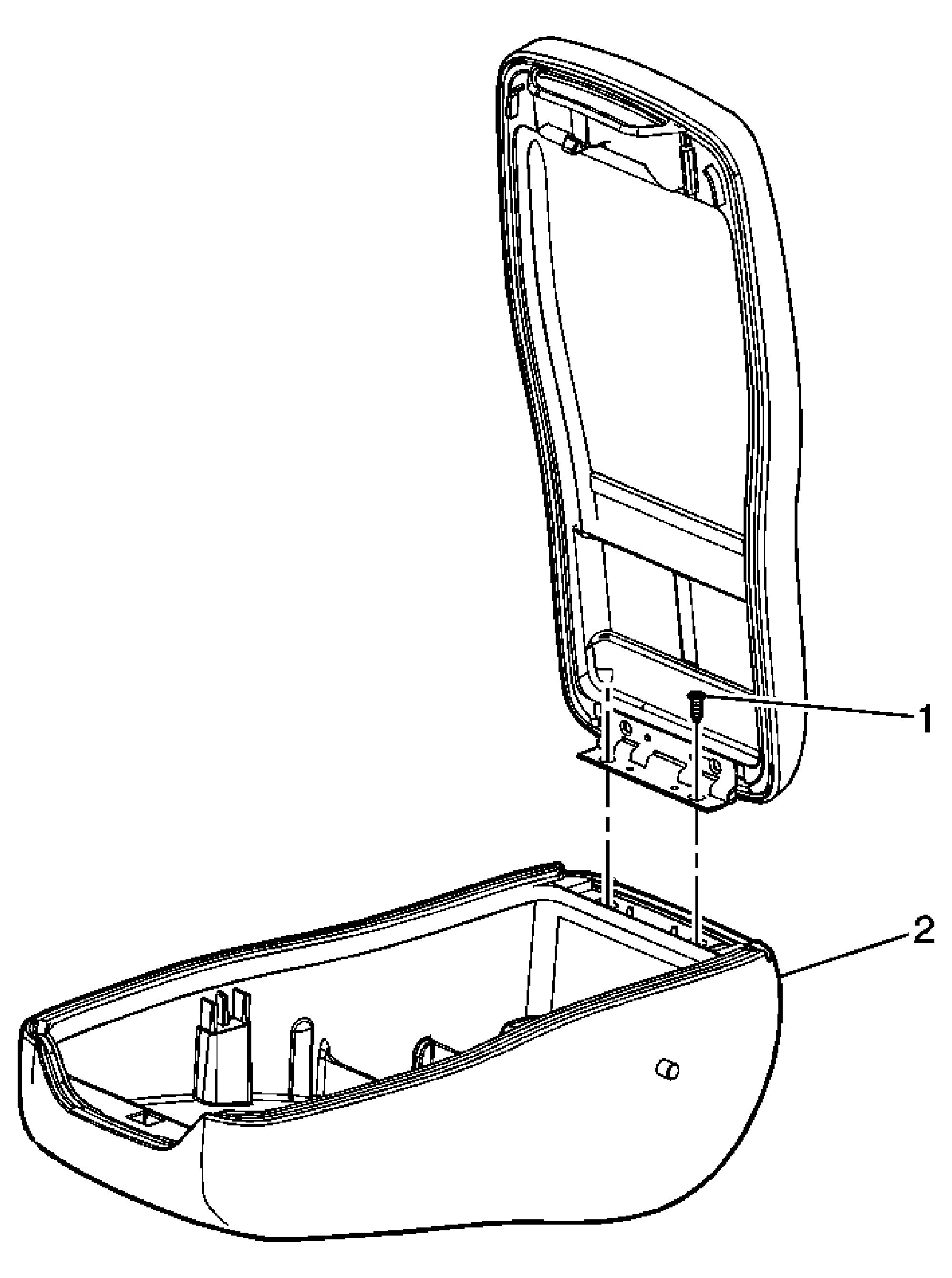

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front seat armrest assembly. Refer to Front Seat Armrest Replacement . |
|
| 1 | Screw, Front Center Seat Armrest Assembly (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Stowage Compartment, Front Center Seat Armrest Assembly |
