Front Seat Armrest Hinge Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

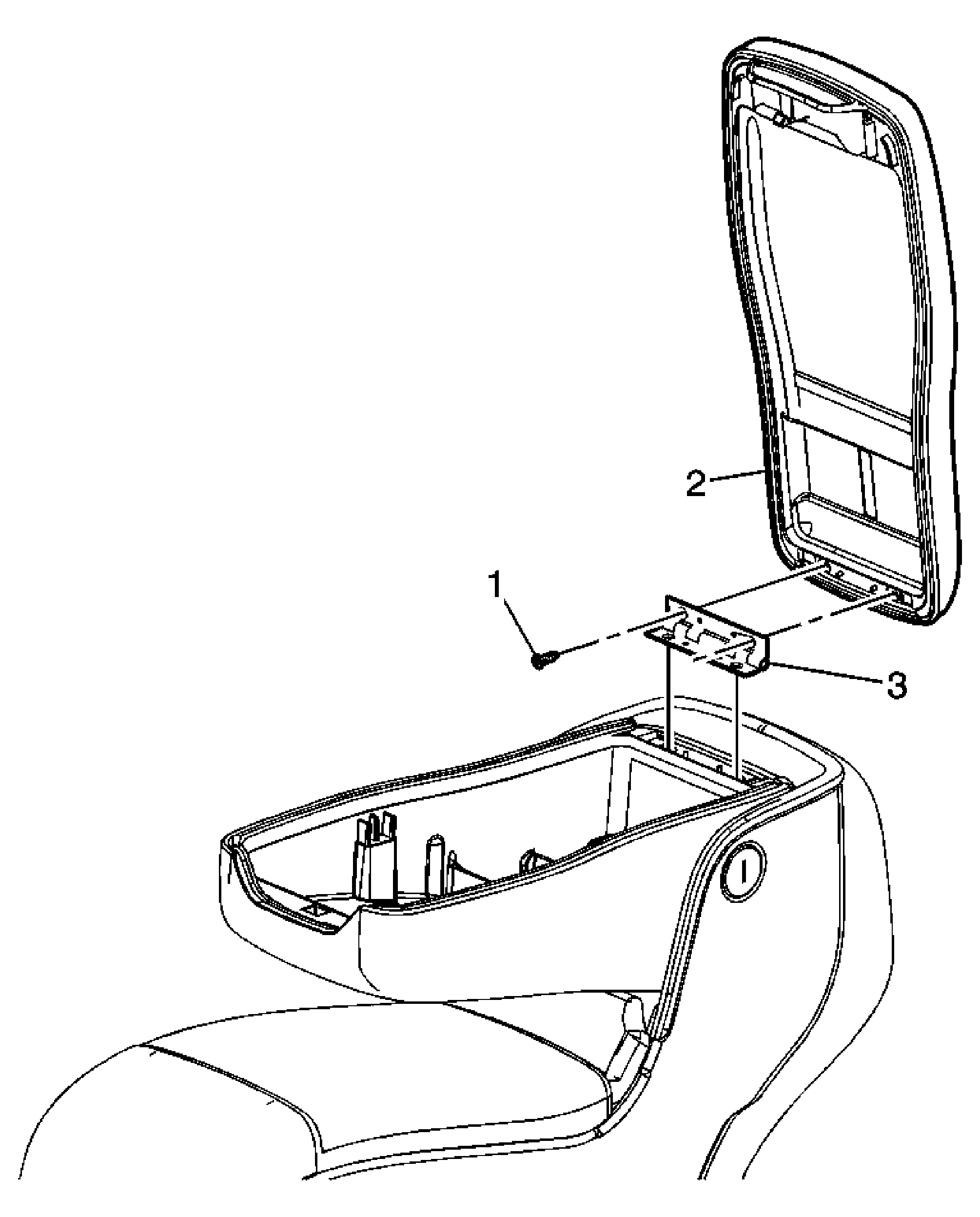

| Callout | Component Name |
|---|---|
| 1 | Screw, Front Center Seat Armrest Assembly (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Lid, Front Center Seat Armrest Assembly |
| 3 | Hinge, Front Center Seat Armrest Assembly Tip: Reposition seats as required. |
