Rear Seat Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

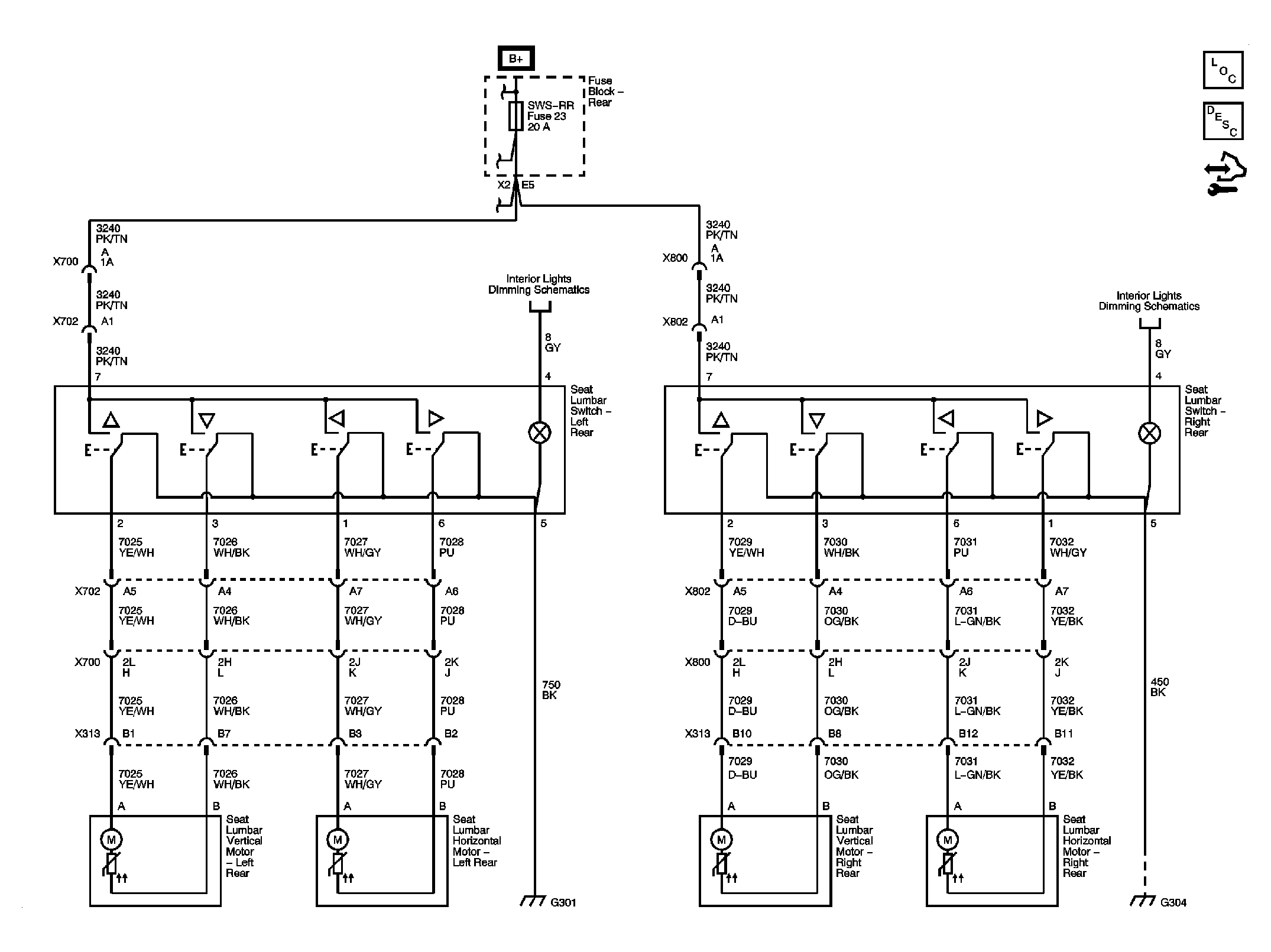

Fig 1: Rear Seat Schematic ARC
GM2082413Courtesy of GENERAL MOTORS CORP.
