Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

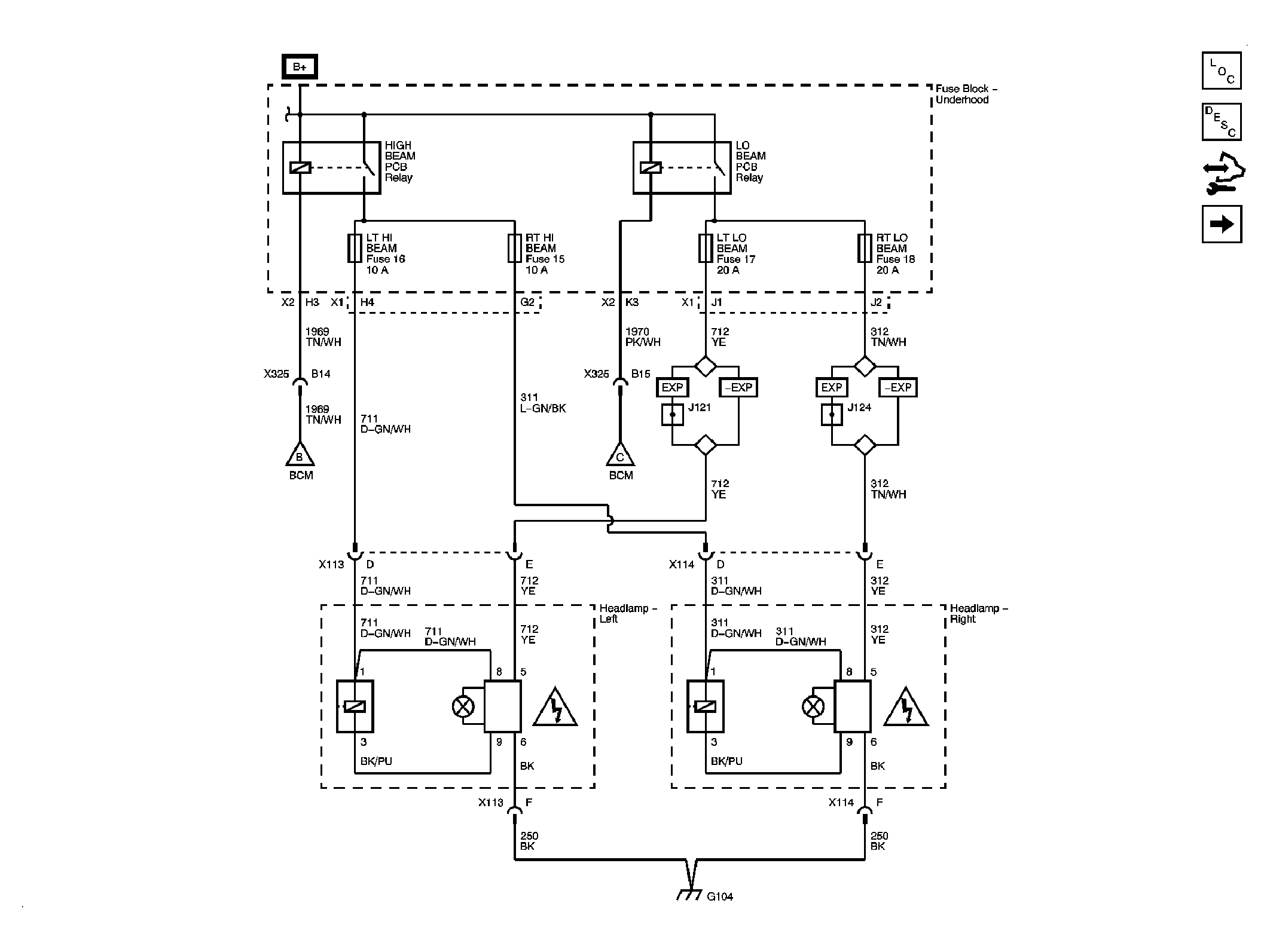

Fig 1: Headlamps
GM2082225Courtesy of GENERAL MOTORS CORP.

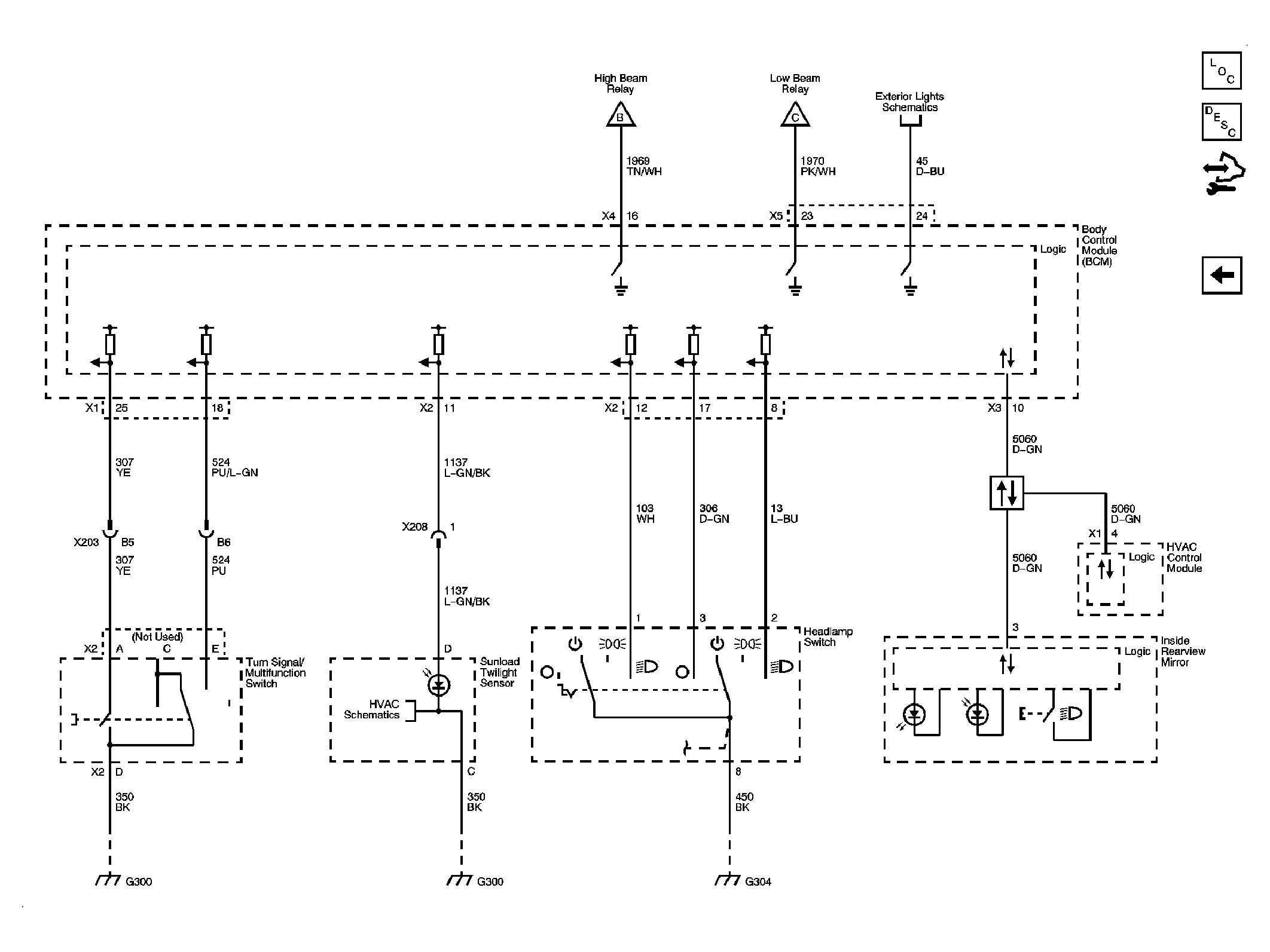

Fig 2: Headlamp Switch
GM2082227Courtesy of GENERAL MOTORS CORP.
