Luminescent Lamp Replacement - Instrument Panel

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

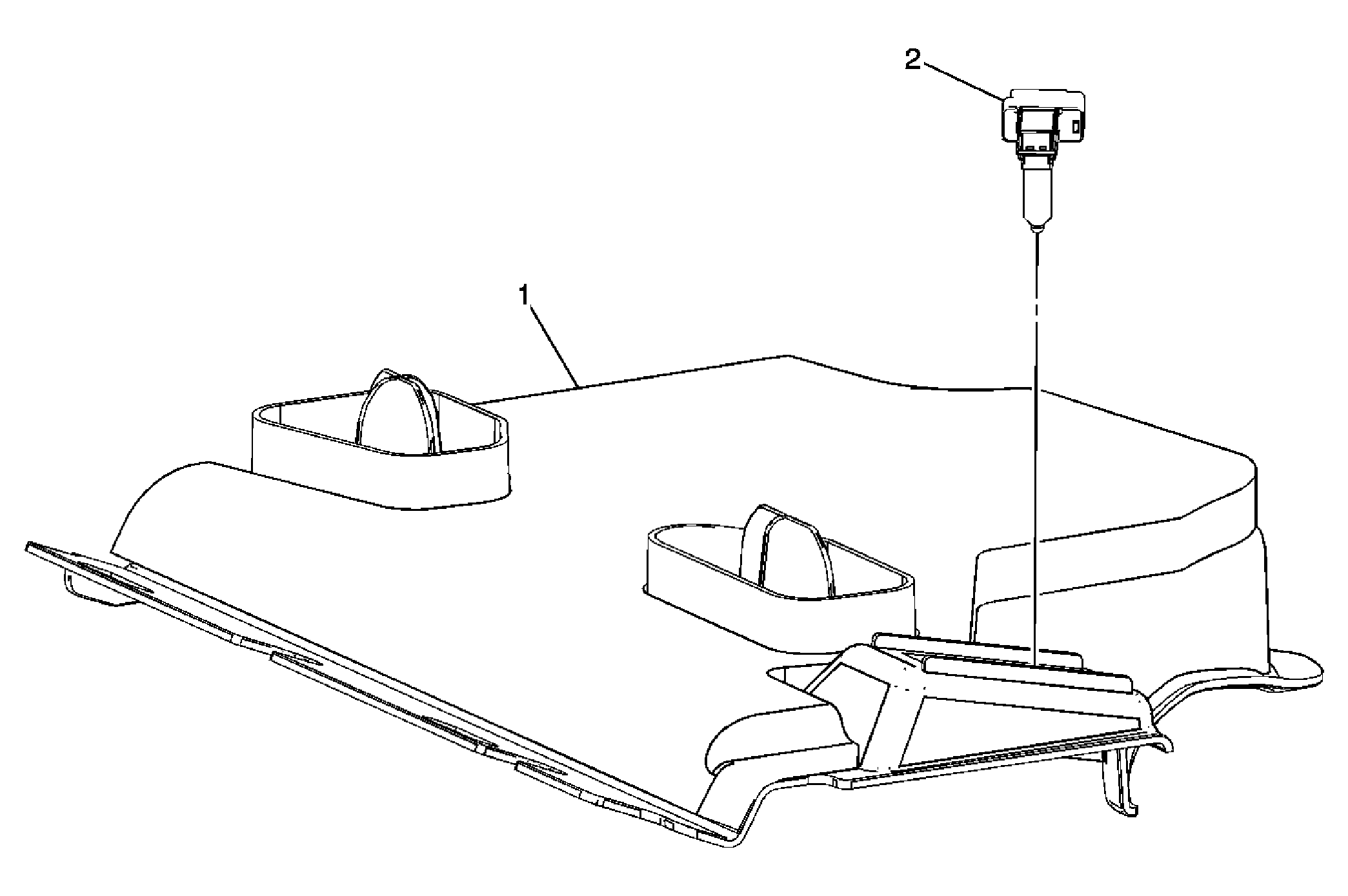

Fig 1: View Of Luminescent Lamp & Instrument Panel
GM1975802Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Insulator Panel Right or Left.
Refer to Instrument Panel Insulator Panel Replacement - Right Side or Instrument Panel Insulator Panel Replacement - Left Side .
2 Luminescent Lamp
Procedure:
Unsnap the lamp from the insulator panel.
