Starting and Charging Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

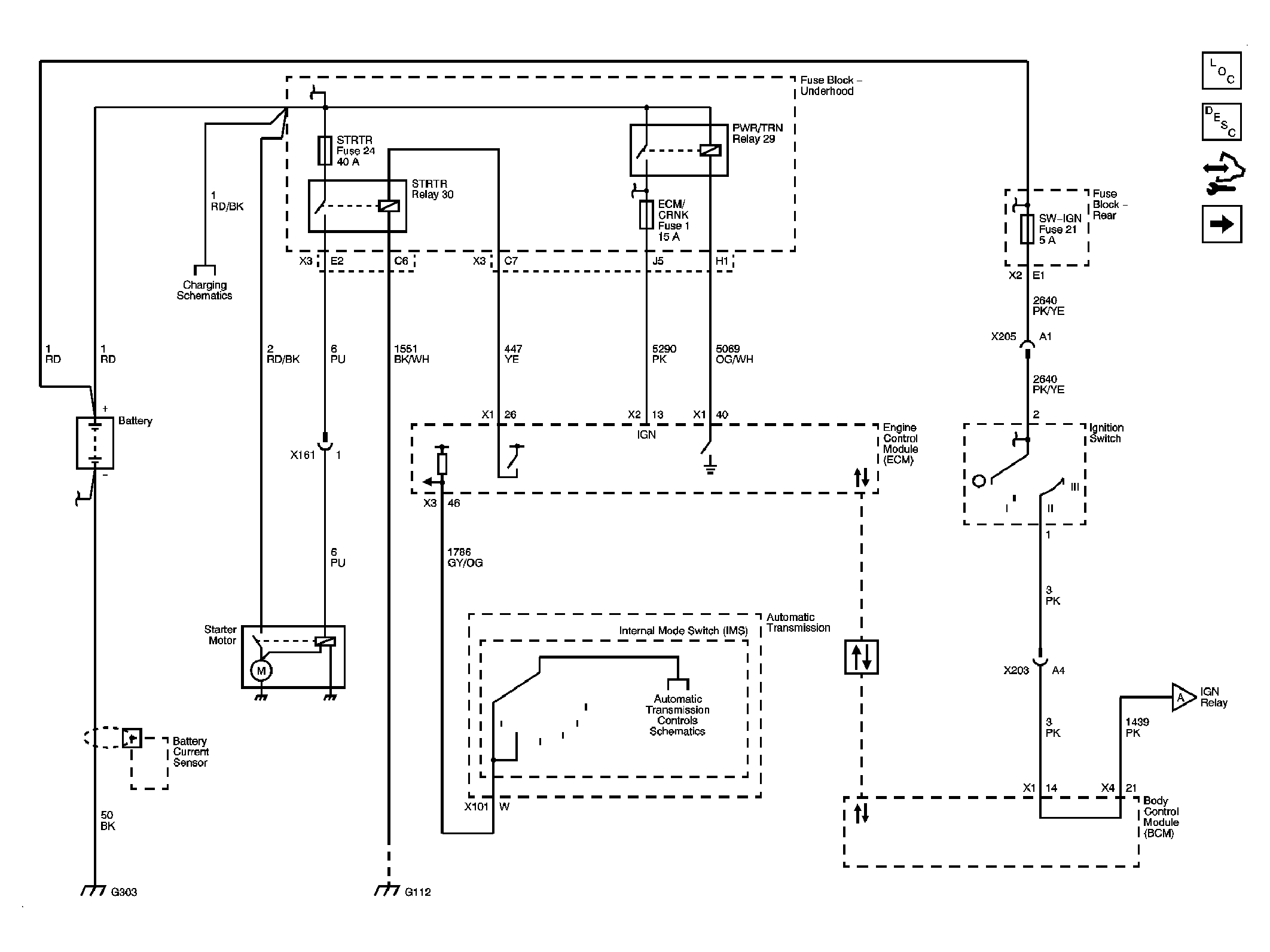

Fig 1: Starting 1 of 2
GM2082341Courtesy of GENERAL MOTORS CORP.
Fig 2: Starting 2 of 2
GM2082342Courtesy of GENERAL MOTORS CORP.
Fig 3: Charging
GM2082343Courtesy of GENERAL MOTORS CORP.
