Battery Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

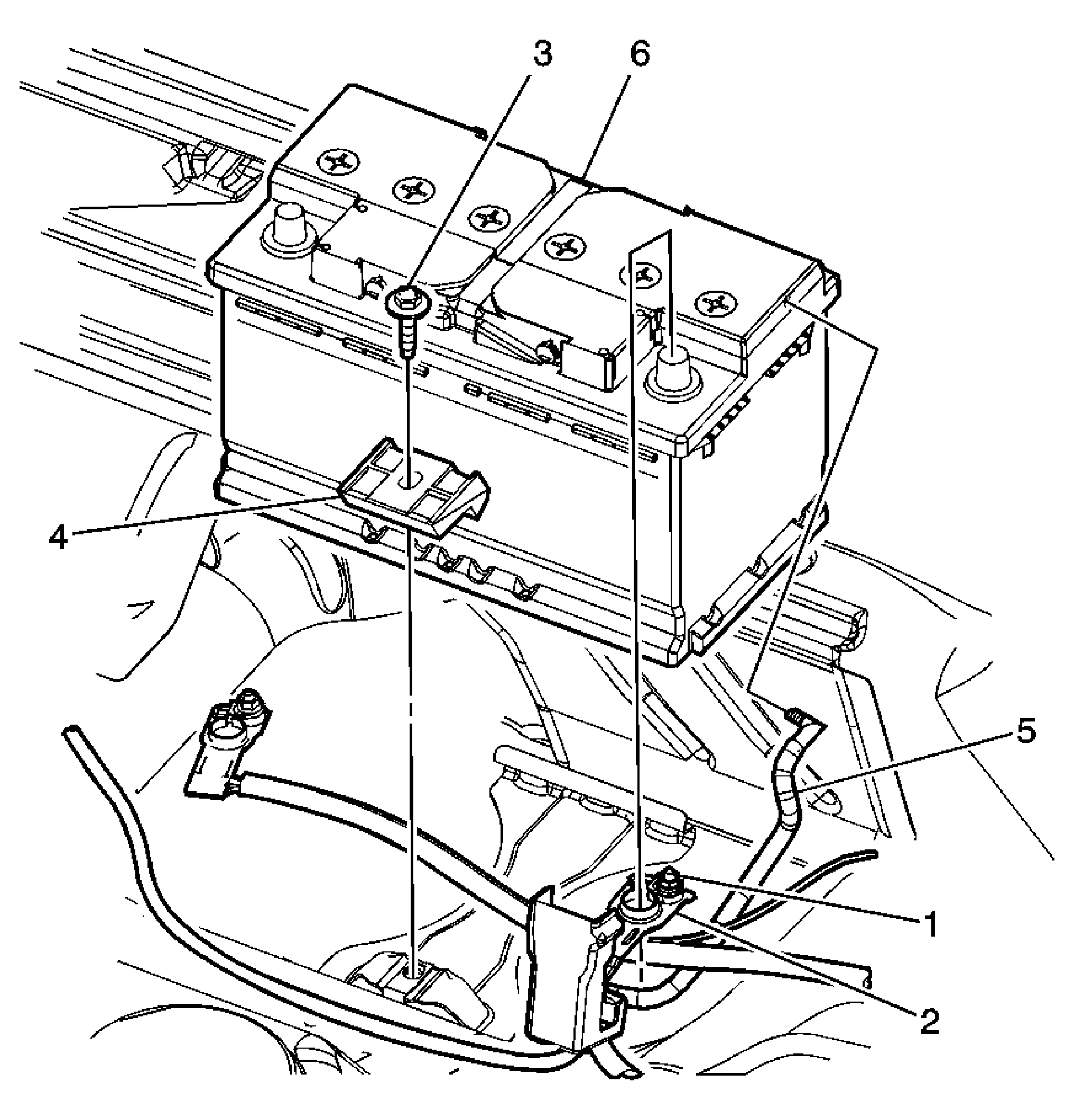

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Battery terminal Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 15 N.m(11 lb ft) |
| 2 | Battery Cable Terminal |
| 3 | Battery Hold Down Retainer Bolt Tighten: 17 N.m(13 lb ft) |
| 4 | Battery Hold Down Retainer |
| 5 | Battery Vent Tube |
| 6 | Battery |
