Battery Negative Cable Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

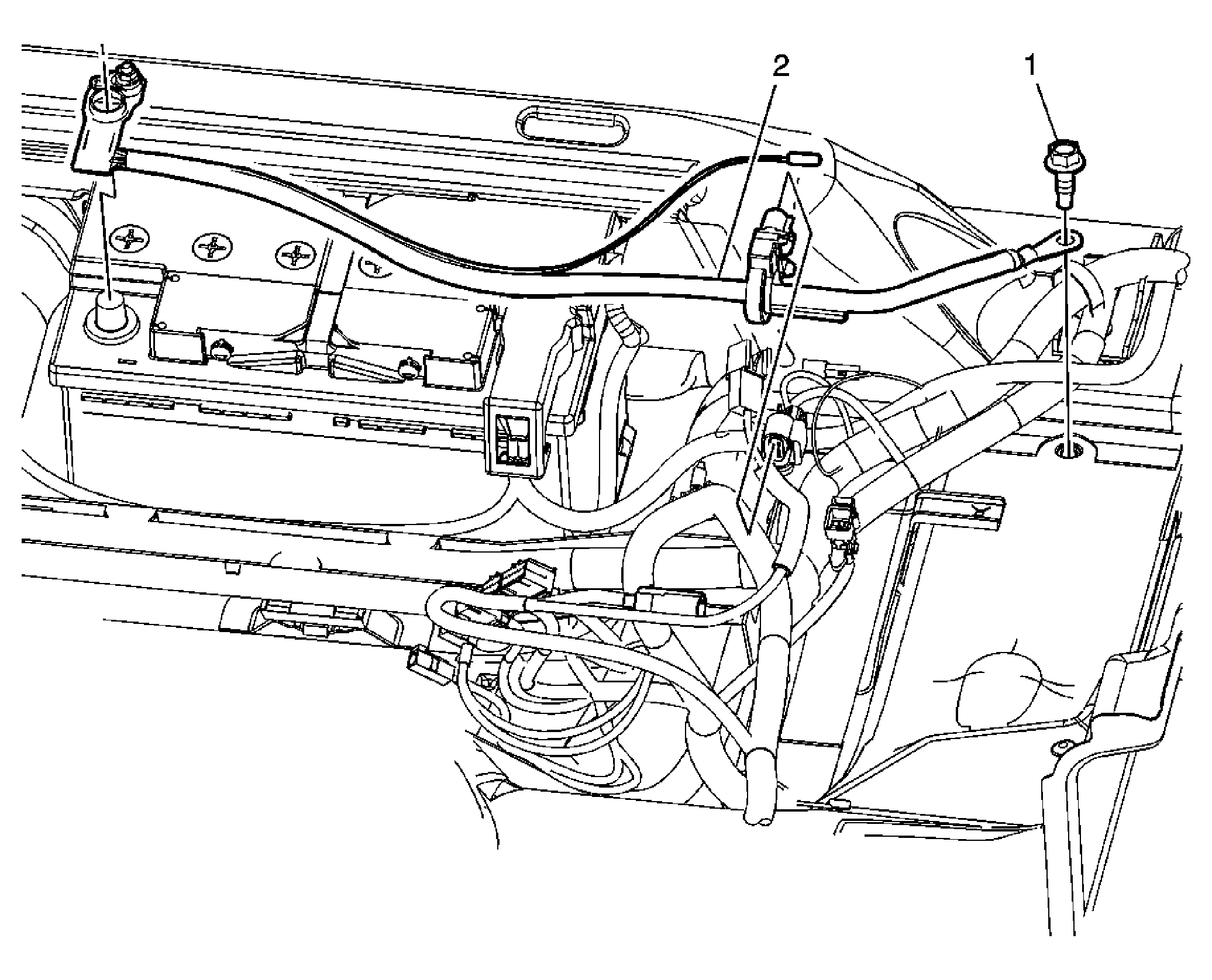

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection |
|
| 1 | Negative Battery Cable Fastener Tighten: 36 N.m (27 lb ft) |
| 2 | Negative Battery Cable Procedure: Disconnect the current sensor harness connector |
