Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

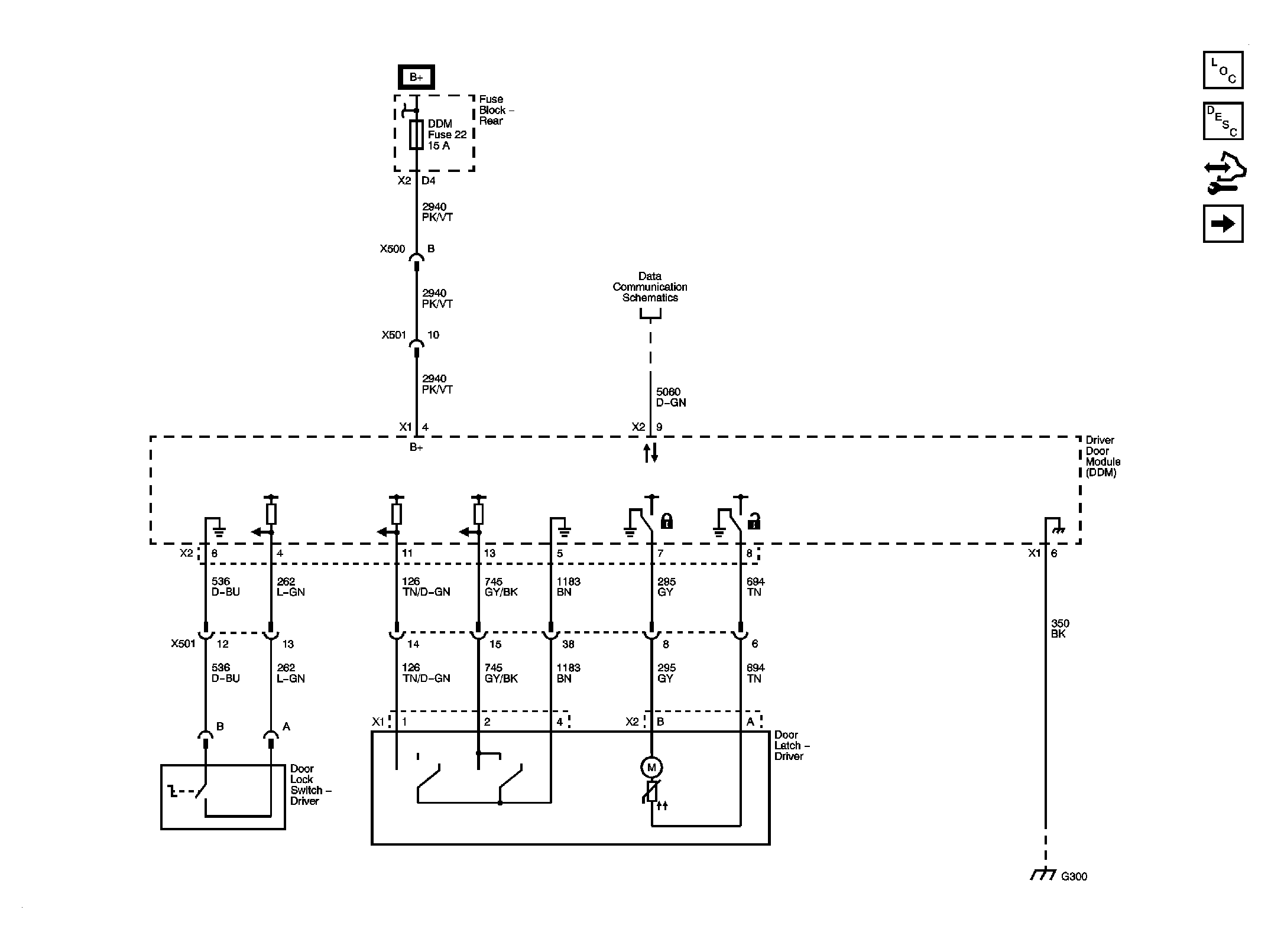

Fig 1: Driver Door Module, Power and Ground

Courtesy of GENERAL MOTORS CORP.

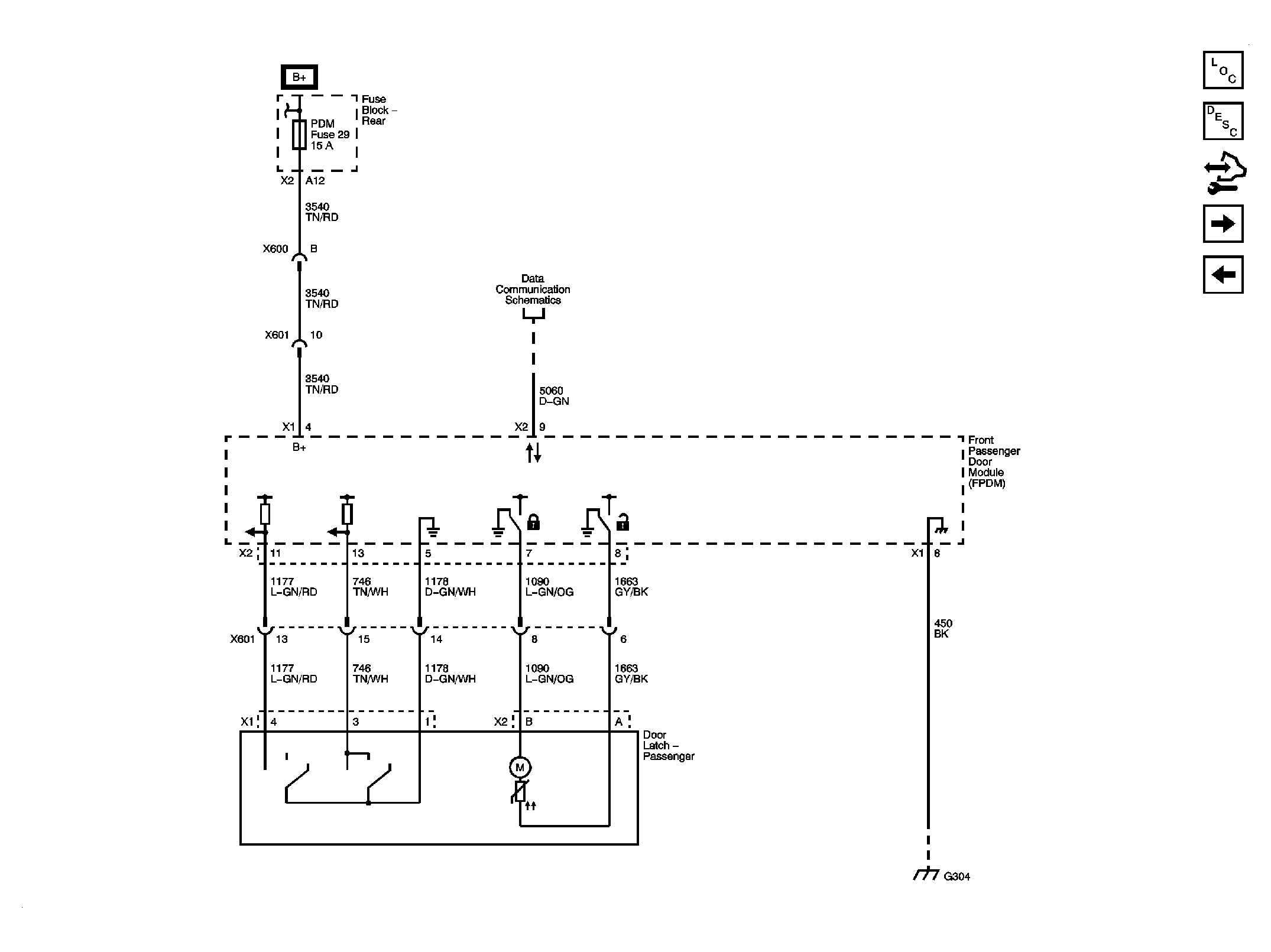

Fig 2: Front Passenger Door Module, Power and Ground

Courtesy of GENERAL MOTORS CORP.

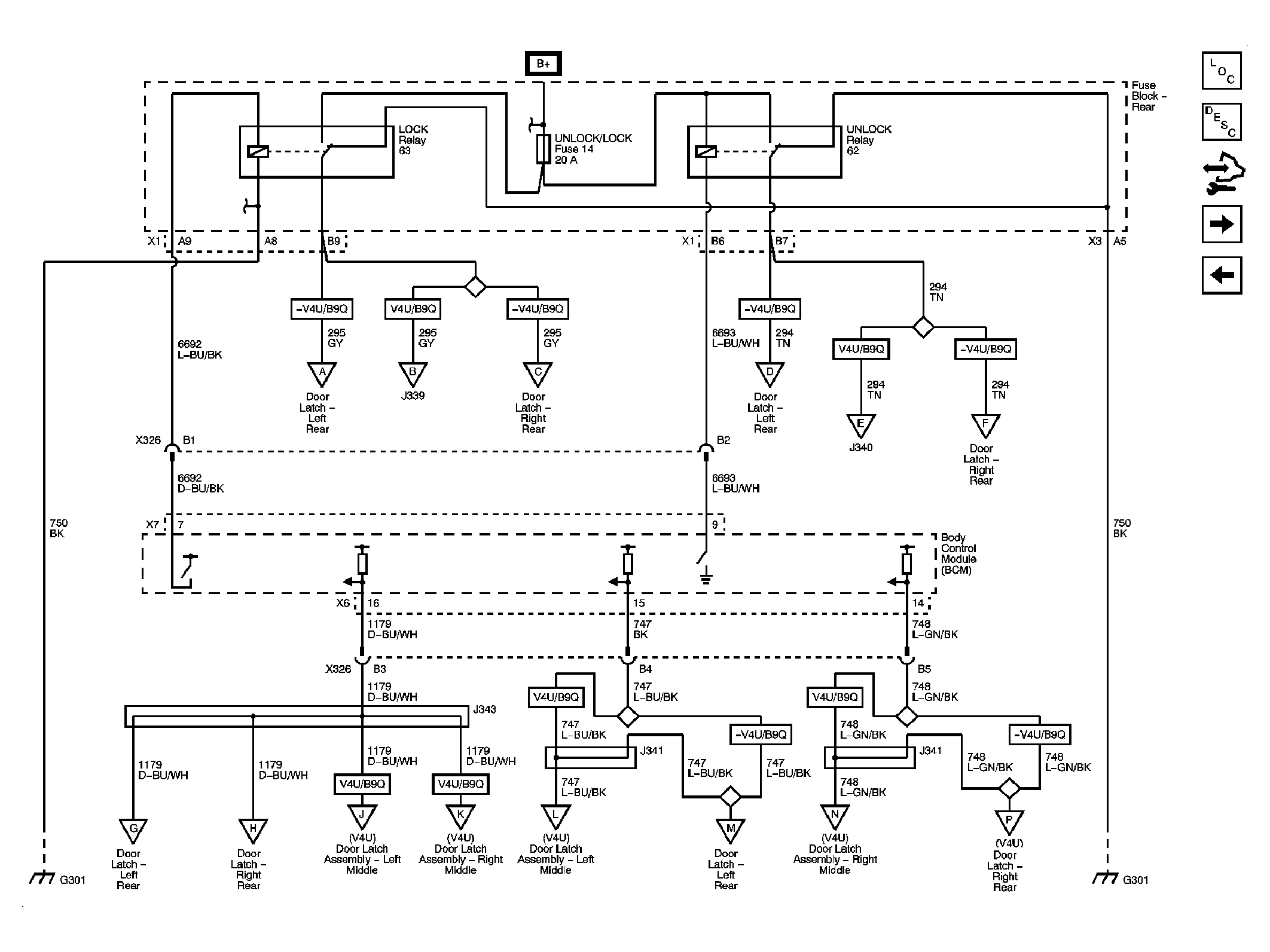

Fig 3: Door Lock, Unlock Relays

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Door Latch Assemblies

Courtesy of GENERAL MOTORS CORP.

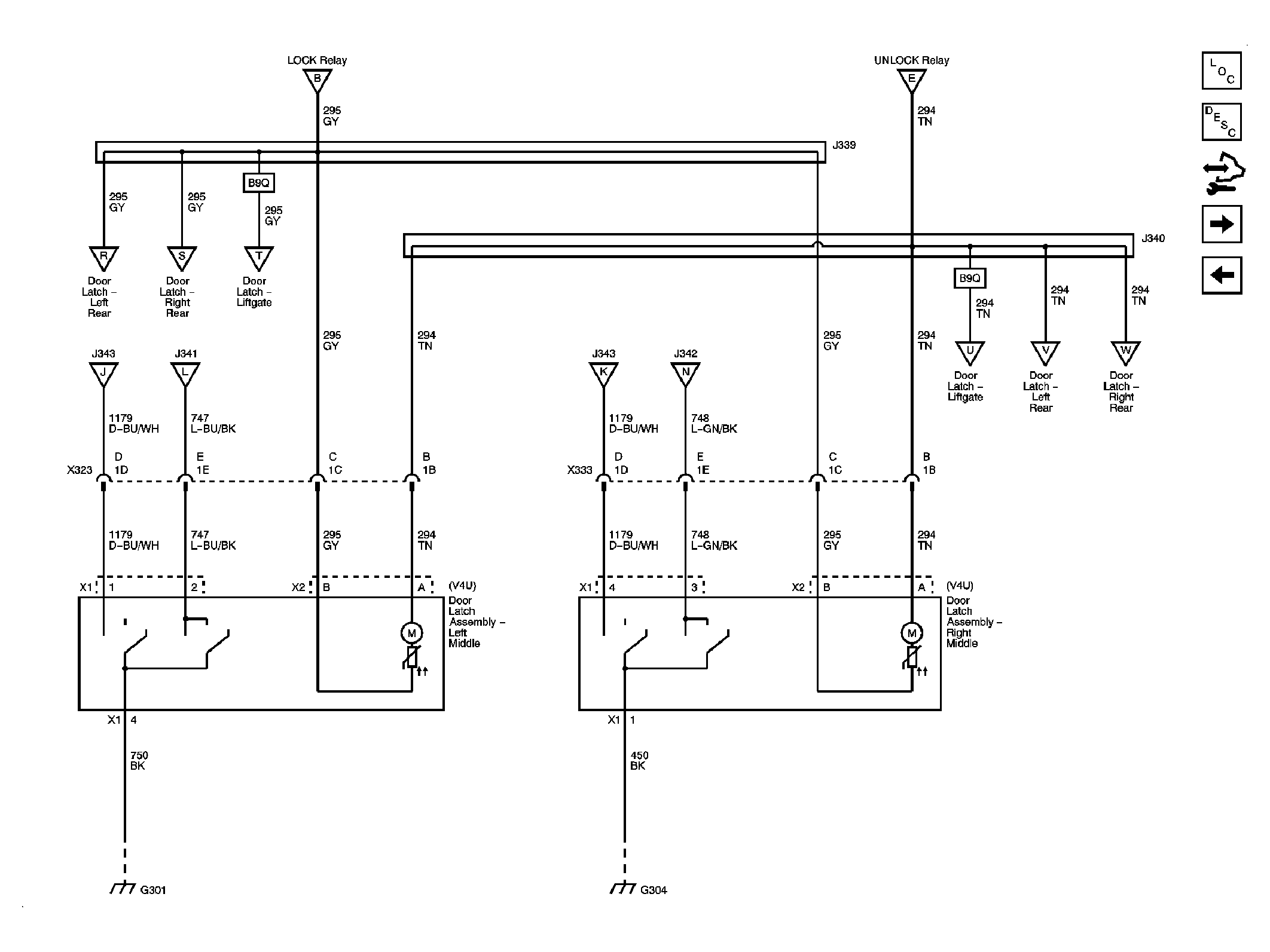

Fig 5: Middle Door Latch Assemblies (V4U)

Courtesy of GENERAL MOTORS CORP.

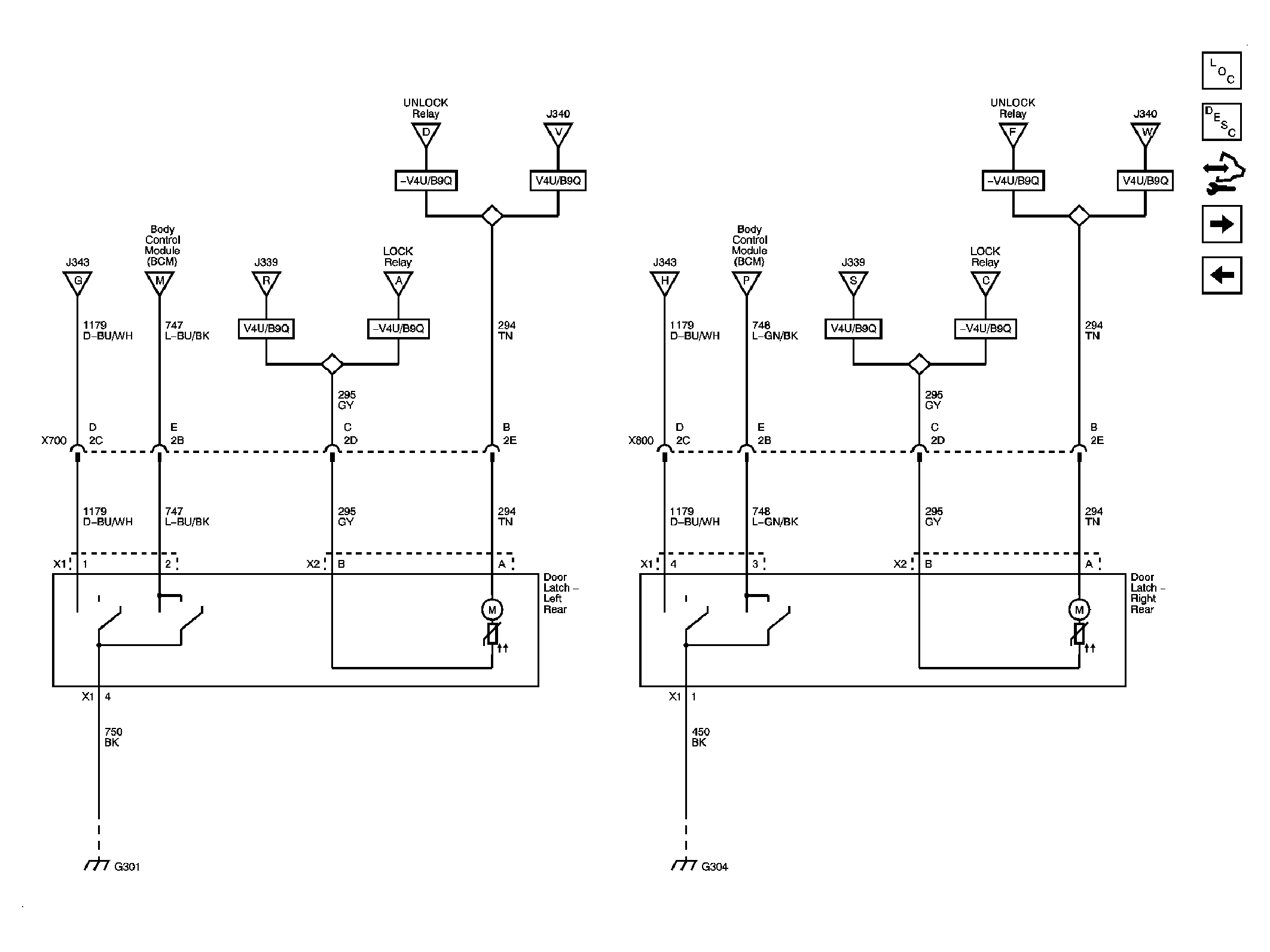

Fig 6: Rear Door Latch Assemblies (B9Q)

Courtesy of GENERAL MOTORS CORP.

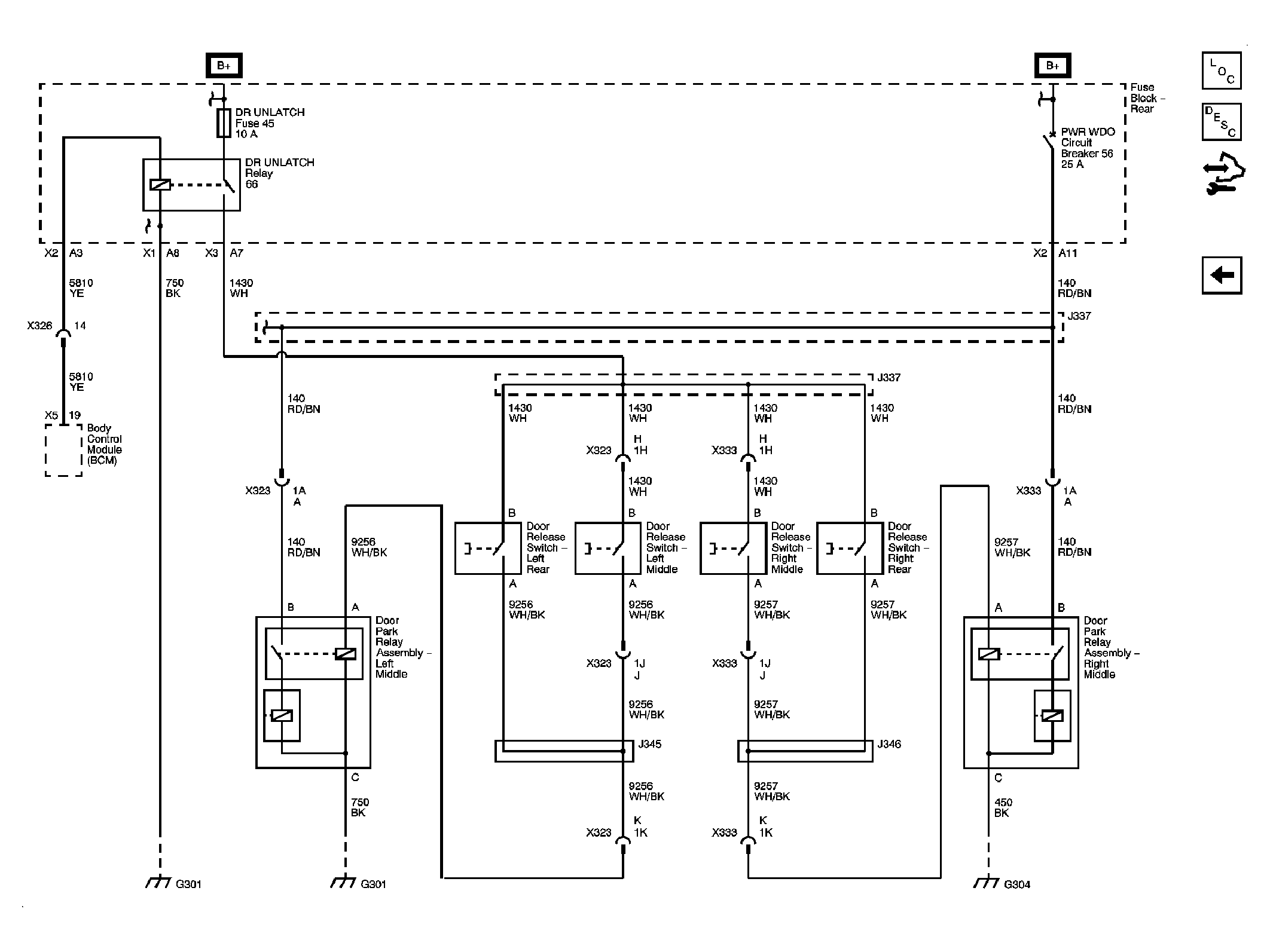

Fig 7: Door Release Switch (V4U)

Courtesy of GENERAL MOTORS CORP.
