X205 Body Harness to the Steering Column Harness

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

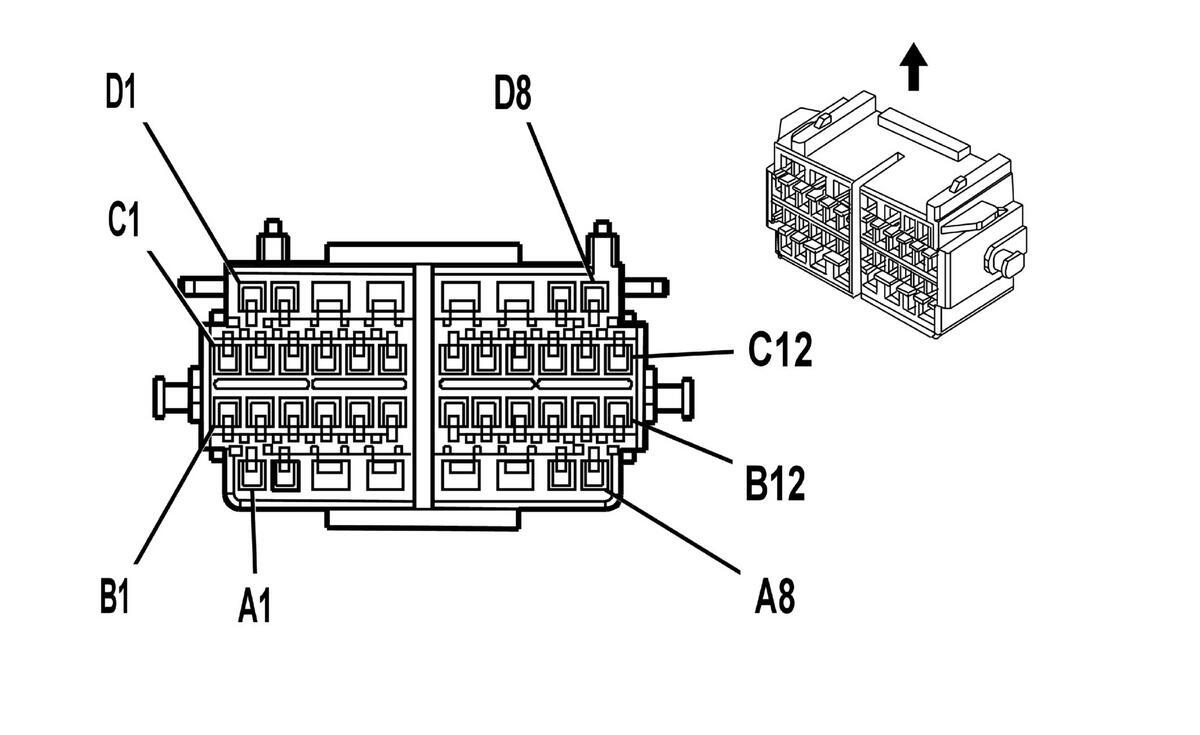

GM1538795
GM851471
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15448130
  • Service Connector: 89046970
  • Description: 40-Way F GT 150 280 Series (L-GY)
 Connector Part Information
  • Harness Type: Steering Column
  • OEM Connector: 15475870
  • Service Connector: 88988616
  • Description: 40-Way M GT 150, 280 Series (L-GY)
Terminal Part Information
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
 Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
X205 Body Harness to the Steering Column Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A1 0.5 PK/YE 2640 Battery Positive Voltage A1 0.5 PK/YE 2640 Battery Positive Voltage
A2 0.35 OG/PK 1840 Battery Positive Voltage A2 0.35 OG/RD 1840 Battery Positive Voltage
A3-A6 - - Not Used A3-A6 - - Not Used
A7 0.35 GY/YE 2096 Steering Column Tilt and Telescope Up Switch Signal (N37) A7 0.35 GY 2096 Steering Column Tilt and Telescope Up Switch Signal (N37)
A8 1 PK/BN 2111 Steering Column Tilt Motor Up Control (N37) A8 1 PK 2111 Steering Column Tilt Motor Up Control (N37)
B1 0.35 YE 2097 Steering Column Tilt and Telescope Down Switch Signal (N37) B1 0.35 YE 2097 Steering Column Tilt and Telescope Down Switch Signal (N37)
B2 0.35 GY/OG 2095 Steering Column Tilt and Telescope Reverse Switch Signal (N37) B2 0.35 OG 2095 Steering Column Tilt and Telescope Reverse Switch Signal (N37)
B3 0.35 GY/PK 2094 Steering Column Tilt and Telescope Forward Switch Signal (N37) B3 0.35 PK 2094 Steering Column Tilt and Telescope Forward Switch Signal (N37)
B4 0.35 OG/WH 2154 Steering Column Tilt Motor Signal (N37) B4 0.35 OG 2154 Steering Column Tilt Motor Signal (N37)
B5 0.35 OG/D-BU 2153 Steering Column Telescope Motor Signal (N37) B5 0.35 OG/BK 2153 Steering Column Telescope Motor Signal (N37)
B6 0.35 GY/BK 1381 LCD Dimming Signal B6 0.35 GY/BK 1381 LCD Dimming Signal
B7 1 TN/D-BU 2110 Steering Column Telescope Motor Rearward (N37) B7 1 TN 2110 Steering Column Telescope Motor Rearward (N37)
B8 1 OG/D-GN 2098 Steering Column Telescope Motor Forward (N37) B8 1 OG 2098 Steering Column Telescope Motor Forward (N37)
B9 1 BN 41 Ignition 3 Voltage (NR7/N57/N30/N50) B9 1 BN 41 Ignition 3 Voltage (NR7/N57/N30/N50)
B10 0.35 GY/BK 5979 Memory Seat Switch High Reference (N37) B10 0.35 GY/BK 5979 Memory Seat Switch High Reference (N37/A45)
B11 1 BK/WH 350 Ground (NR7/N57/N30/N50) B11 1 BK 350 Ground (NR7/N57/N30/N50)
B12 0.35 D-GN 5060 Low Speed GMLAN Serial Data B12 0.35 D-GN 5060 Low Speed GMLAN Serial Data
C1 0.5 BK 350 Ground C1 0.5 BK 350 Ground
C2 0.35 GY 1056 Steering Wheel Position Sensor 5-Volt Reference (JL4) C2 0.35 GY 1056 Steering Wheel Position Sensor 5-Volt Reference (JL4)
C3 1 BN 2112 Steering Column Tilt Motor Down Control (N37) C3 1 BN 2112 Steering Column Tilt Motor Down Control (N37)
C4 0.35 L-GN 1763 Steering Wheel Position Signal A (JL4) C4 0.35 L-GN 1763 Steering Wheel Position Signal A (JL4)
C5 0.35 L-BU 1764 Steering Wheel Position Signal B (JL4) C5 0.35 L-BU 1764 Steering Wheel Position Signal B (JL4)
C6 0.35 OG/BK 556 Steering Wheel Position Sensor Low Reference (JL4) C6 0.35 OG/BK 556 Steering Wheel Position Sensor Low Reference (JL4)
C7 0.35 TN/RD 782 Memory Seat/Mirror Sensor Low Reference (N37) C7 0.35 TN 782 Memory Seat/Mirror Sensor Low Reference (N37)
C8 0.35 GY 788 Memory Mirror Position Sensor 5-Volt Reference (N37/A45) C8 0.35 GY 788 Memory Mirror Position Sensor 5-Volt Reference (N37/A45)
C9-C12 - - Not Used C9-C12 - - Not Used
D1 0.35 PU/WH 5905 Ignition Lock Cylinder Solenoid Control (AQ9) D1 0.35 YE 5905 Ignition Lock Cylinder Solenoid Control (AQ9)
D2-D8 - - Not Used D2-D8 - - Not Used
