Rear Fascia

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Rear Fascia

Component Name Callout
Side Object Detection - Left (UFT) 1
Side Object Detection - Right (UFT) 2

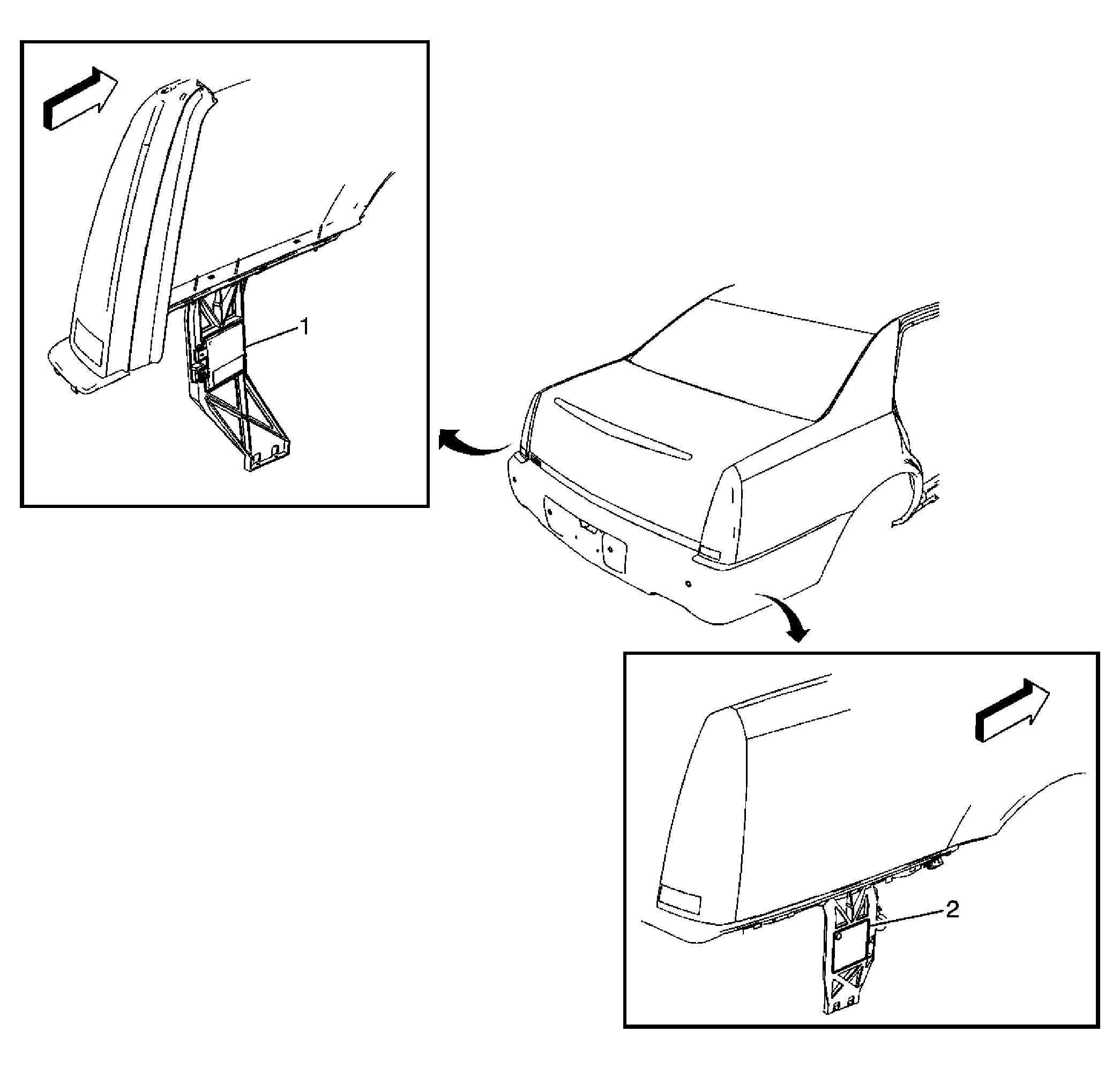

Fig 1: View Of Left & Right Side Object Detection
GM2009441Courtesy of GENERAL MOTORS COMPANY
