Driver Door
WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

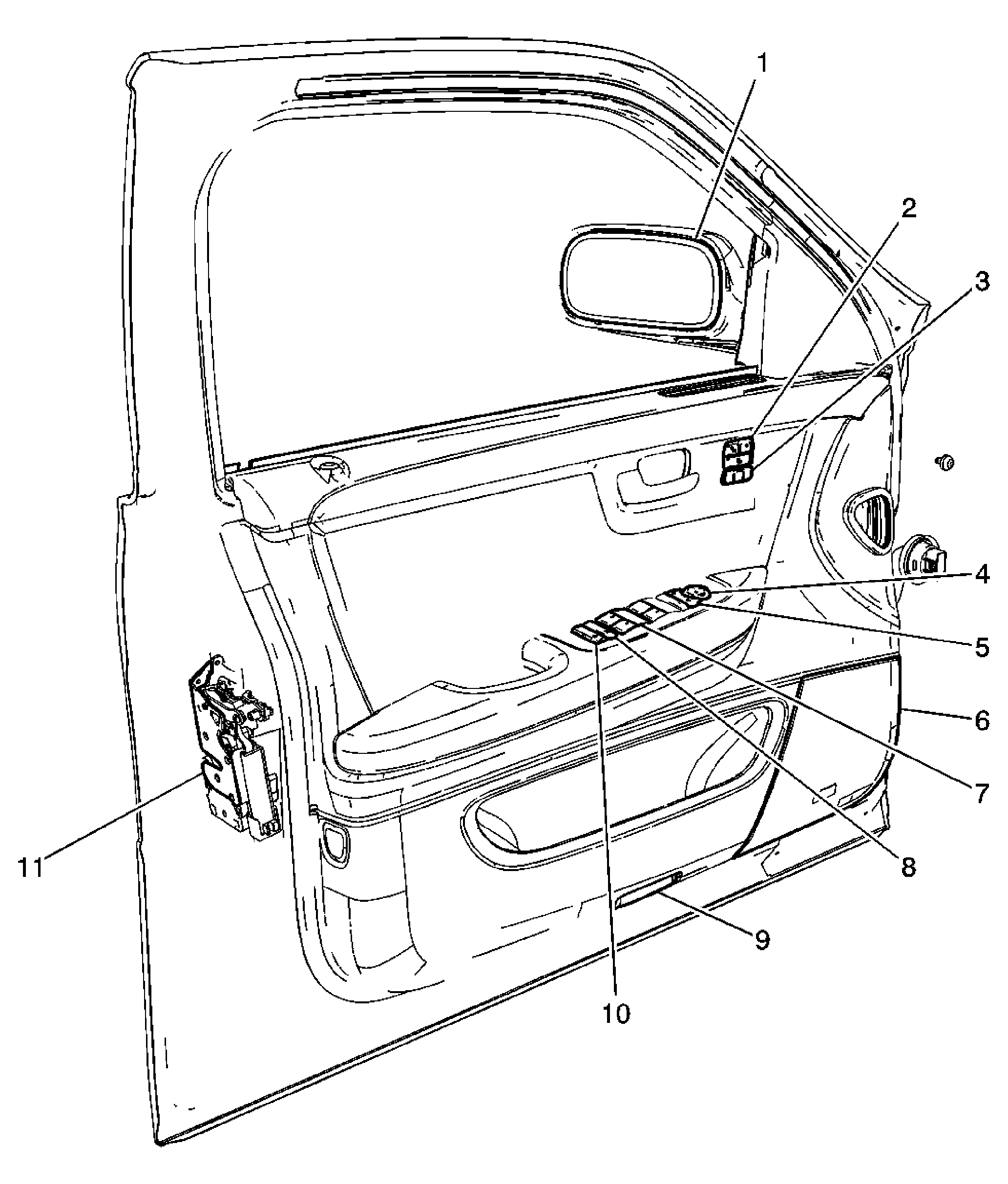

Driver Door
| Component Name | Callout |
|---|---|
| Outside Rearview Mirror - Driver | 1 |
| Heated and Cooled Seat Switch - Driver (KB6) | 2 |
| Memory/Personalization Switch (A45) | 3 |
| Outside Rearview Mirror Switch | 4 |
| Outside Power Folding Mirror Switch (DL3) | 5 |
| Speaker - Left Front Door | 6 |
| Power Window Switches | 7 |
| Window Lock-Out Switch | 8 |
| Courtesy Lamp - Left Front Door | 9 |
| Door Lock-Out Switch | 10 |
| Door Latch Assembly | 11 |
