X505 Outside Rearview Mirror Glass to Outside Rearview Mirror Harness- Driver

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

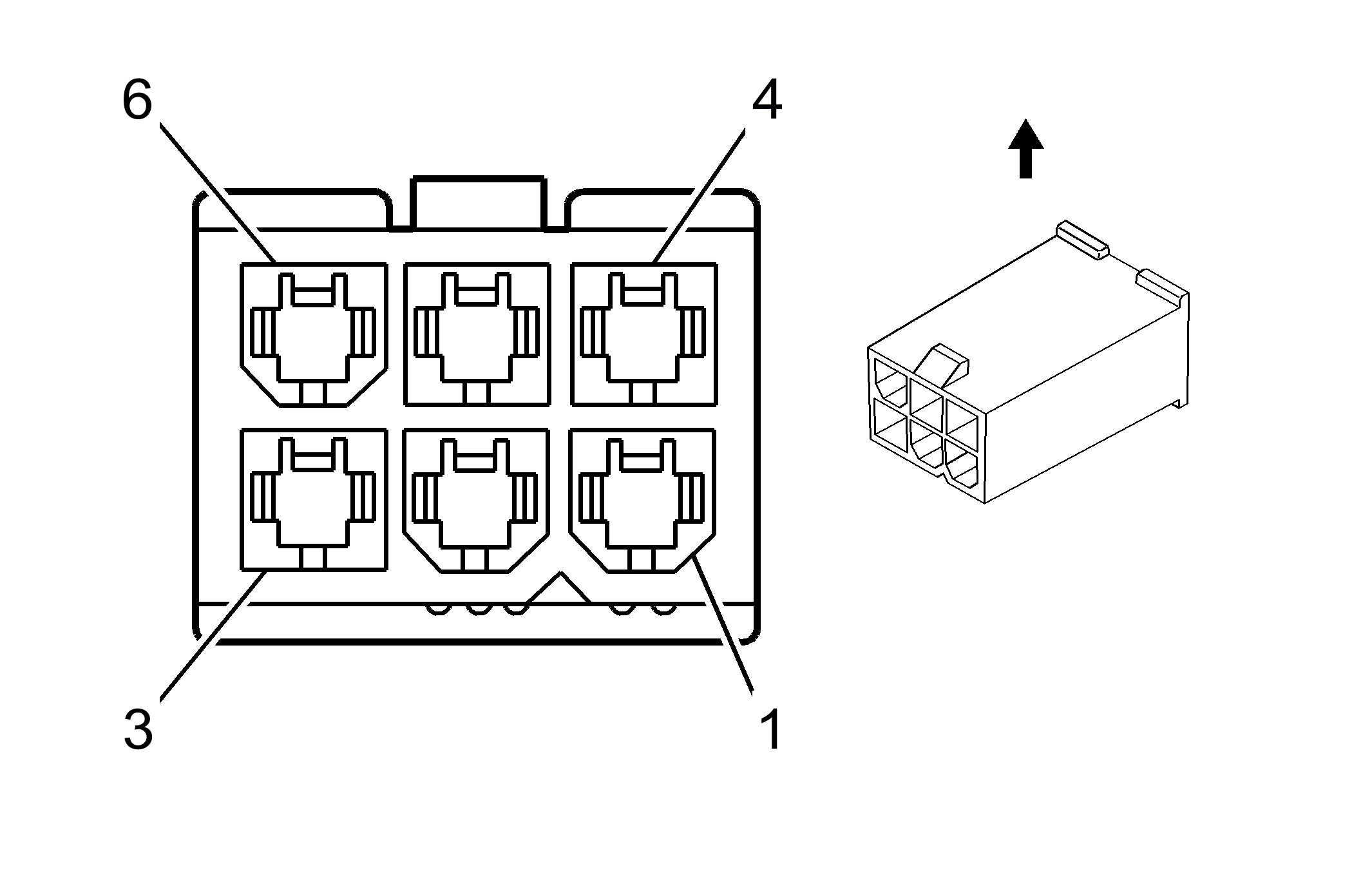

Connector Part Information Harness Type: Outside Rearview Mirror OEM Connector: 39-01-2060 Service Connector: Service by Harness- See Parts Catalog Description: 6-Way F MOLEX (BK)	Connector Part Information Harness Type: Outside Rearview Mirror OEM Connector: 5559-06P Service Connector: Service by Harness- See Part Catalog Description: 6-Way F Mini-Fit Series (BK)
Terminal Part Information Terminal/Tray: Service by Harness- See Parts Catalog Core/Insulation Crimp: Service by Harness- See Parts Catalog Release Tool/Test Probe: Service by Harness- See Parts Catalog	Terminal Part Information Terminal/Tray: Service by Harness- See Parts Catalog Core/Insulation Crimp: Service by Harness- See Parts Catalog Release Tool/Test Probe: Service by Harness- See Parts Catalog

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.35BK	5855	LED Control (UFT)	1	0.35 GY/RD	5855	LED Control (UFT)
2	0.35 GY	5478	Turn Signal Lamp Low Reference	2	0.35 BN/BK	5478	Turn Signal Lamp Low Reference
3	0.35 BK	1691	Automatic Day/Night Mirror Low Reference	3	0.35 PU/BK	1691	Automatic Day/Night Mirror Low Reference
4	0.35 PU	5853	LED Signal (UFT)	4	0.35 L-BU/RD	5853	LED Signal (UFT)
5	0.35 D-BU	1314	Turn Signal Lamp Supply Voltage	5	0.35 GY/BK	1314	Turn Signal Lamp Supply Voltage
6	0.35 BN	1690	Automatic Day/Night Mirror Signal	6	0.35 PU/BK	1690	Automatic Day/Night Mirror Signal
