Under Front Center of Vehicle Components (L37)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Under Front Center of Vehicle Components (L37)

Component Name Callout
Heated Oxygen Sensor (HO2S) 2 1

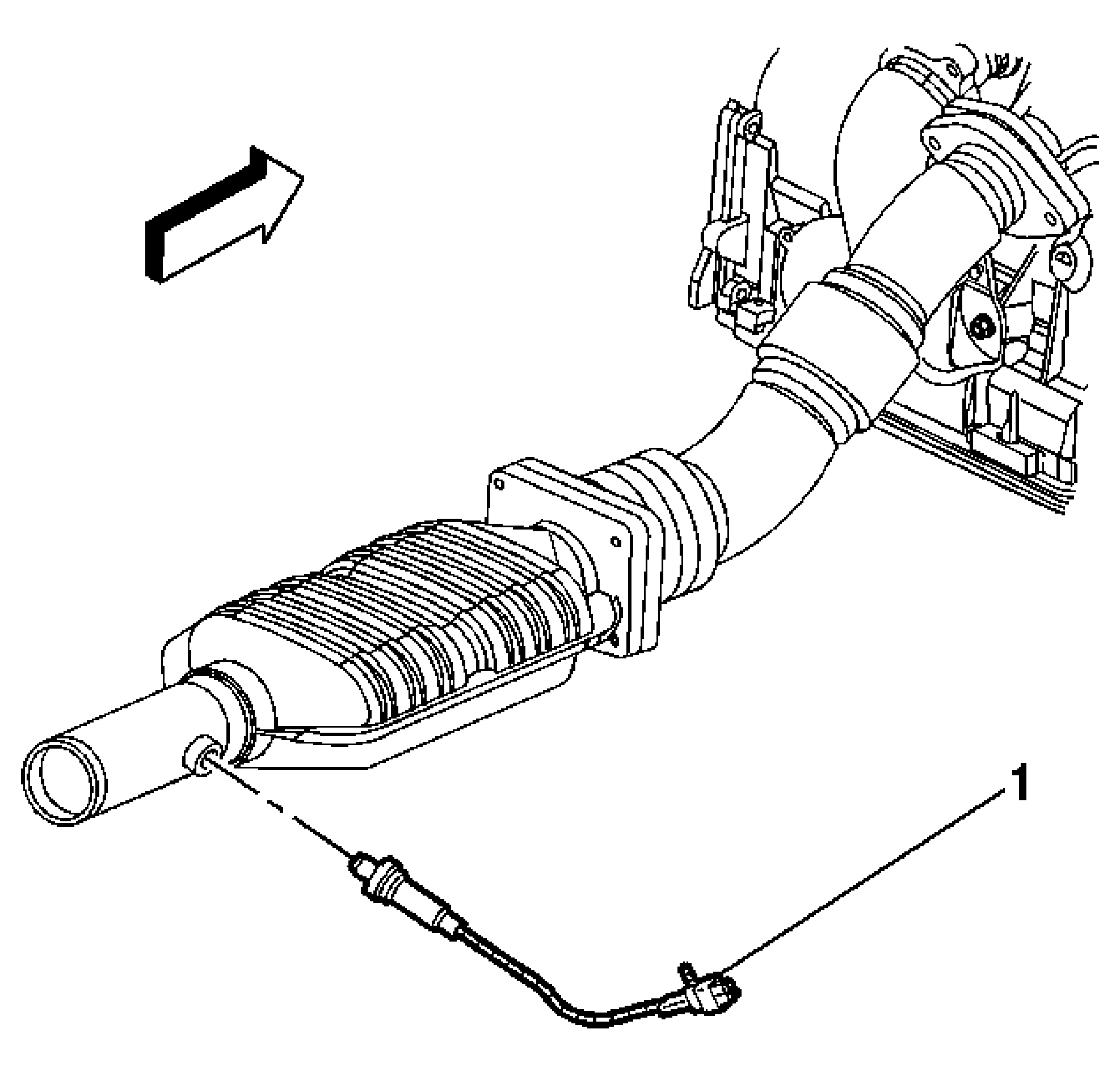

Fig 1: HO2S Sensor 2 (Post HO2)
GM1978244Courtesy of GENERAL MOTORS COMPANY
