Left Side of Engine (LD8/L37)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Left Side of Engine (LD8/L37)

Component Name Callout
Engine- 4.6L 1
A/C Compressor Clutch 2
Generator 3
G110 4

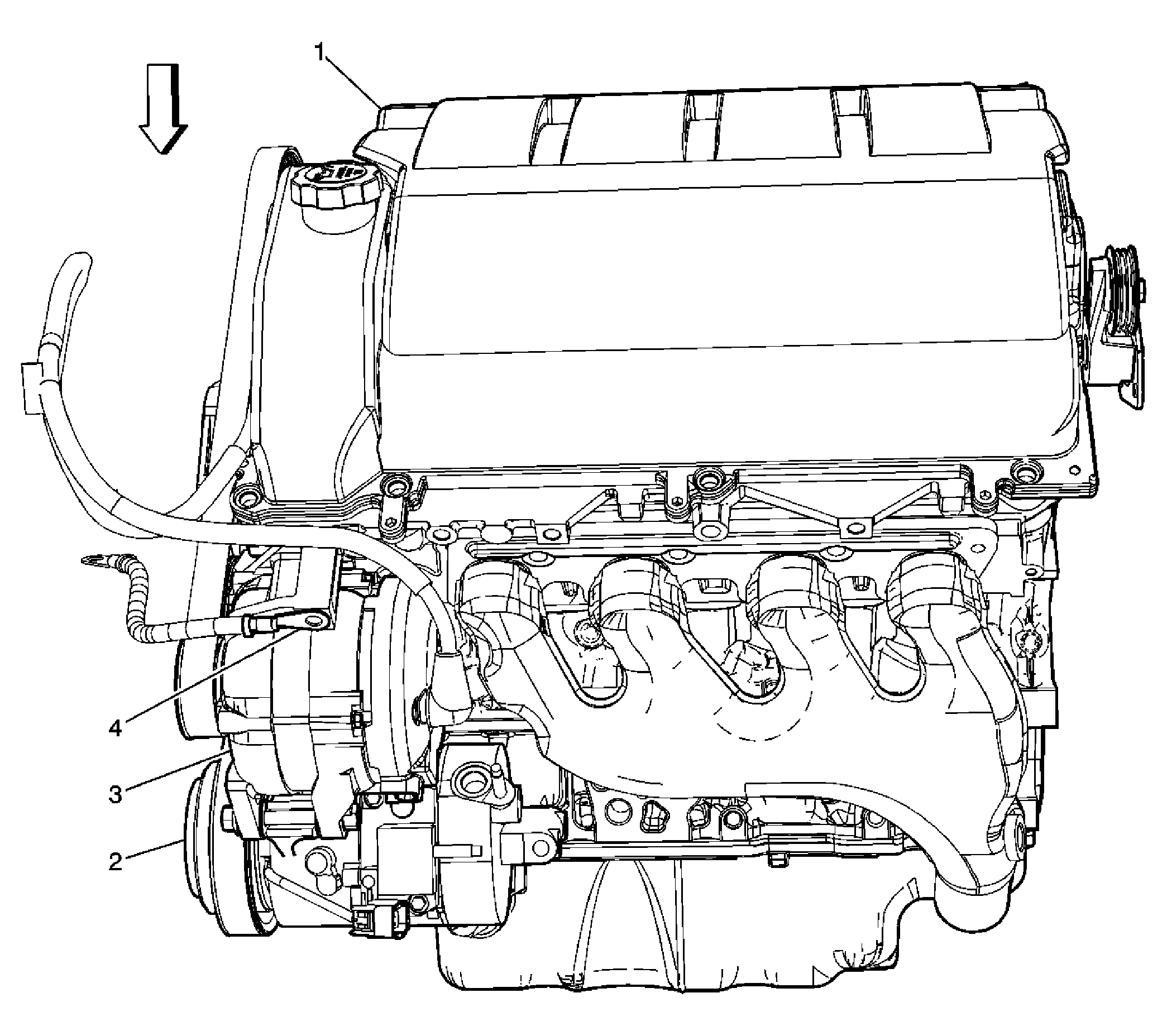

Fig 1: Left Side Of Engine (LD8/L37)
GM1978253Courtesy of GENERAL MOTORS COMPANY
