Section 159 (Power Outlets)
>>
Wiring Schematics
>>
Cigar Lighter/Power Outlet Wiring Schematics
>>
Cigar Lighter/Power Outlet
Cigar Lighter/Power Outlet
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

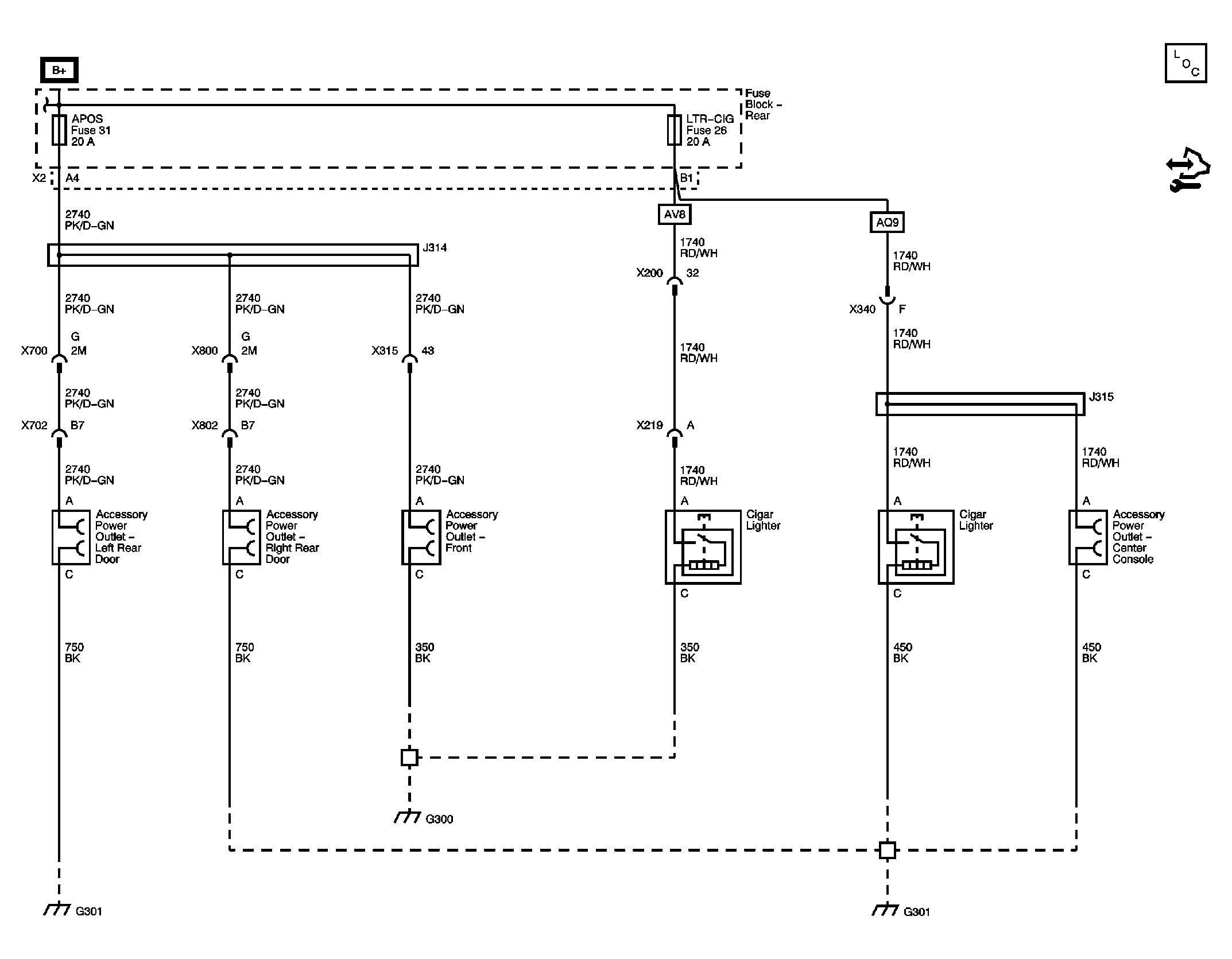

Fig 1: Cigar Lighter/Power Outlet Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
