BCM (LTTN), BCM (RTTN), BCM (CHMSL), BCM (INADV), BCM (DIM), MTR Fuses and PWR WDO Circuit Breaker

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

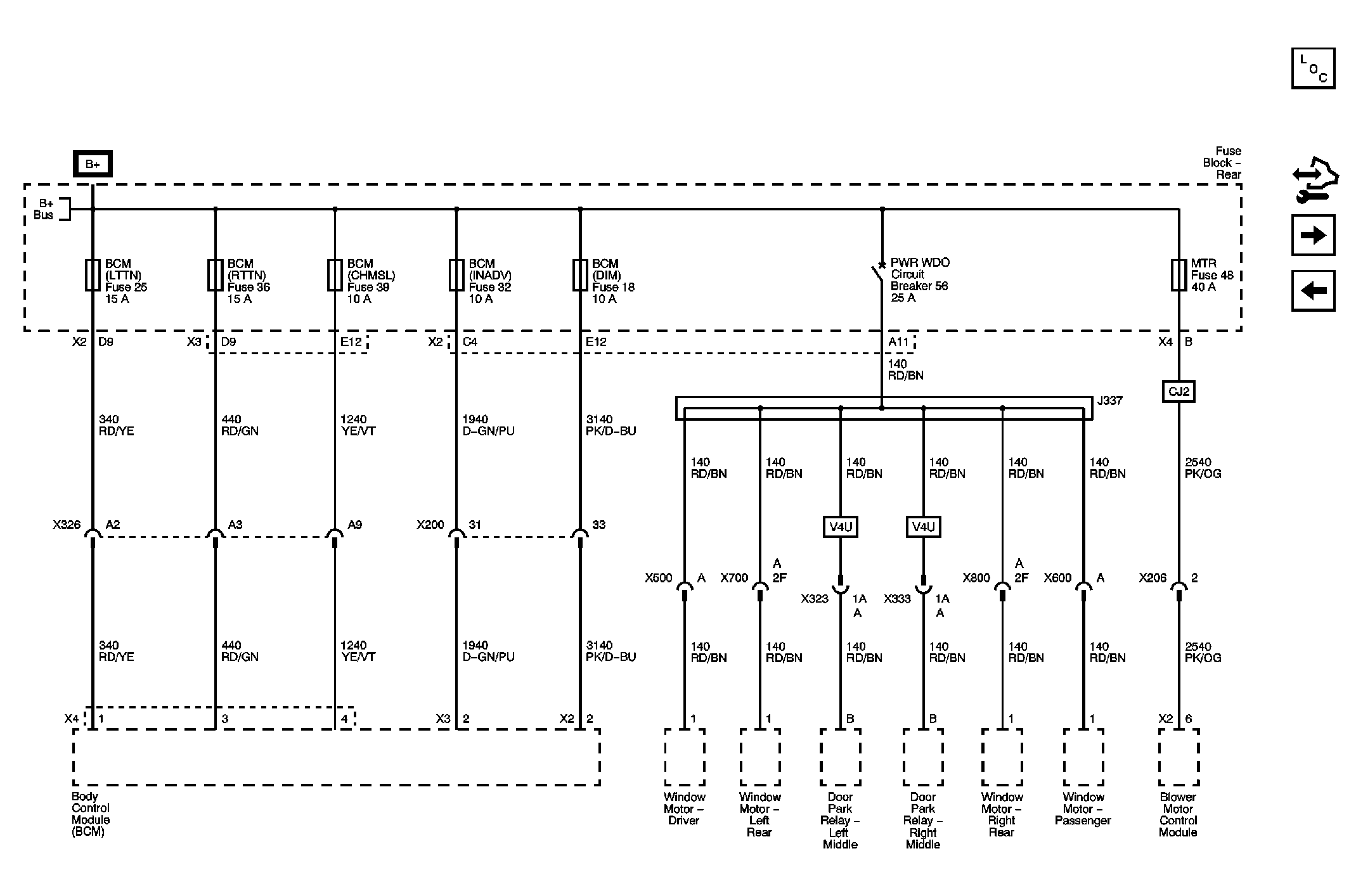

Fig 1: BCM (LTTN), BCM (RTTN), BCM (CHMSL), BCM (INADV), BCM (DIM), MTR Fuses and PWR WDO Circuit Breaker Wiring Schematic
GM2398608Courtesy of GENERAL MOTORS COMPANY
