G101, G110, G111, G114, G115, G302, G303, G306, G307

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

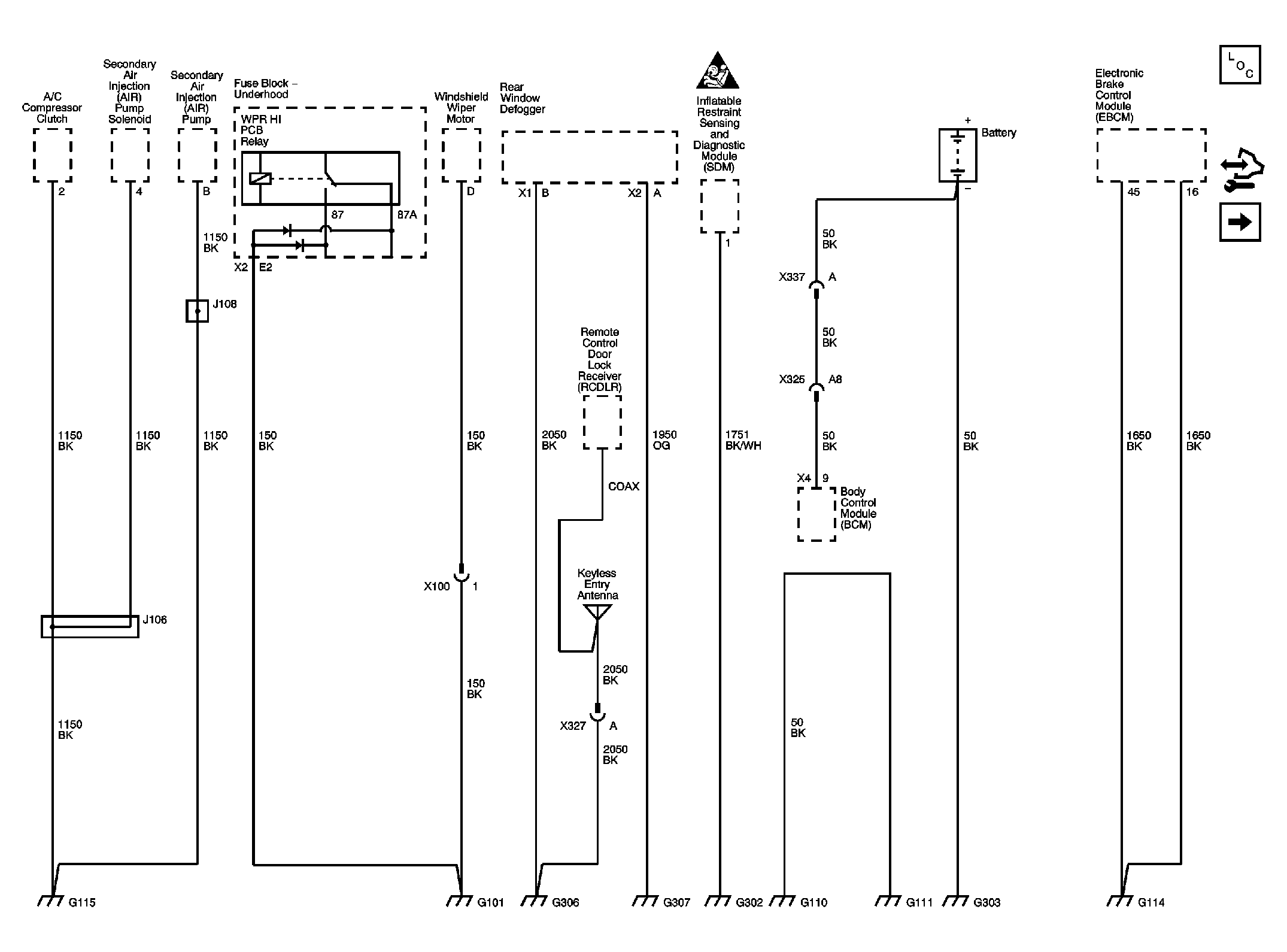

Fig 1: G101, G110, G111, G114, G115, G302, G303, G306, G307 Wiring Schematic
GM2398698Courtesy of GENERAL MOTORS COMPANY
