Fluid Temperature and Speed Sensors, Pressure and Shift Controls

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

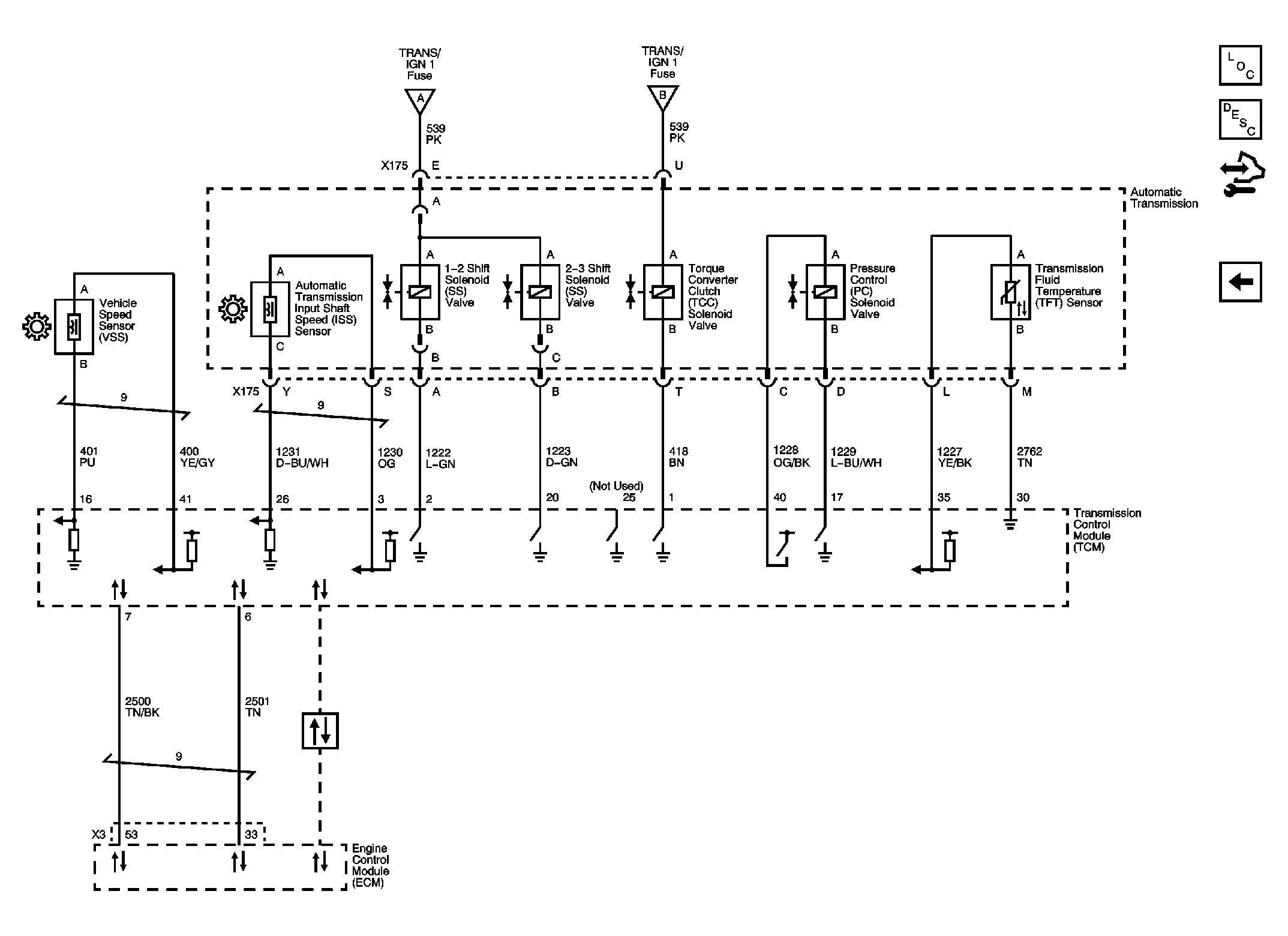

Fig 1: Fluid Temperature & Speed Sensors, Pressure & Shift Controls Wiring Schematic
GM2399148Courtesy of GENERAL MOTORS COMPANY
