Ignition Controls- Ignition Coils 2, 4, 6, and 8

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

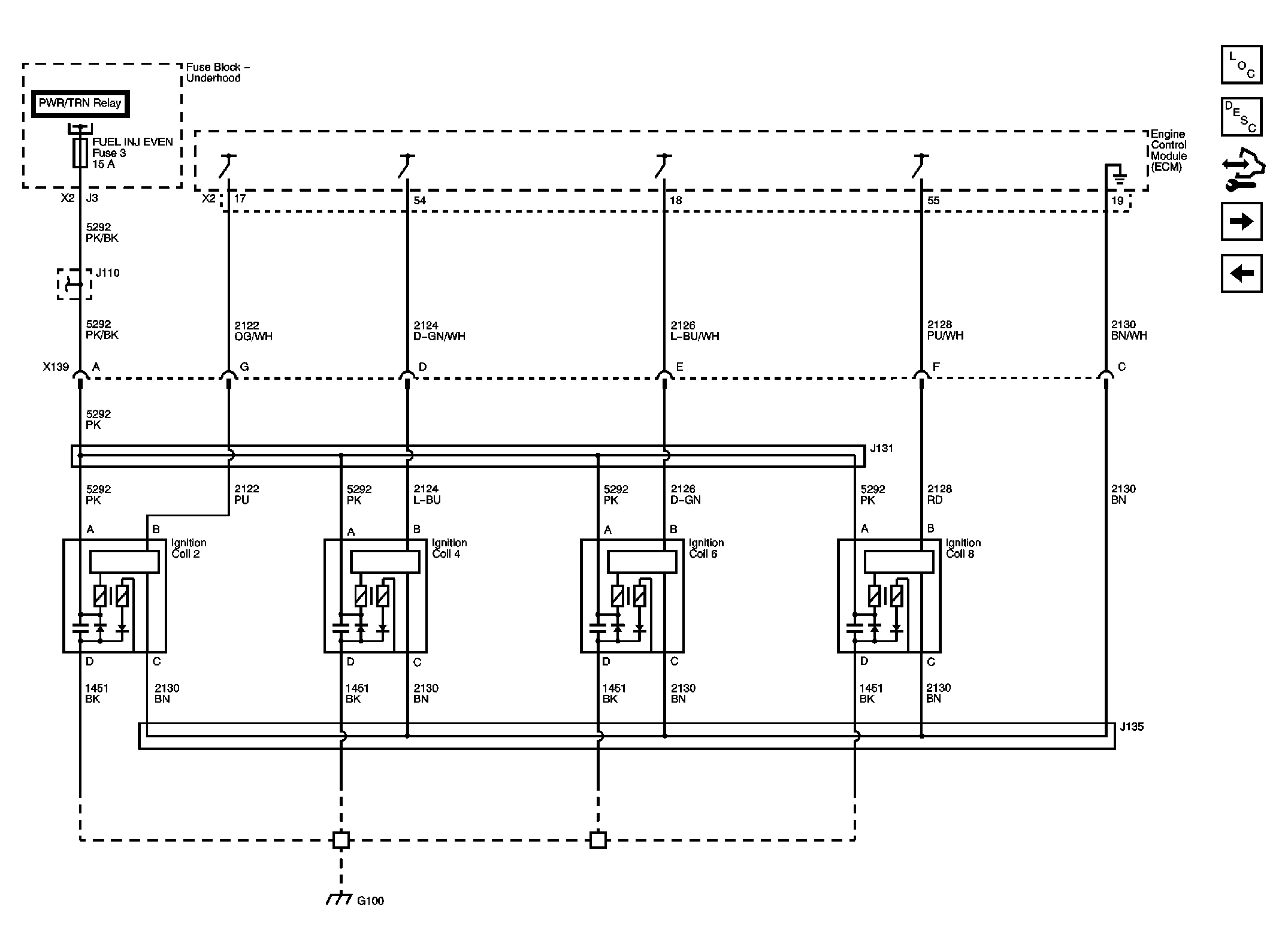

Fig 1: Ignition Controls- Ignition Coils 2, 4, 6, and 8 Wiring Schematic
GM2536602Courtesy of GENERAL MOTORS COMPANY
