5V1, 5V2, and Low Reference Bus

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

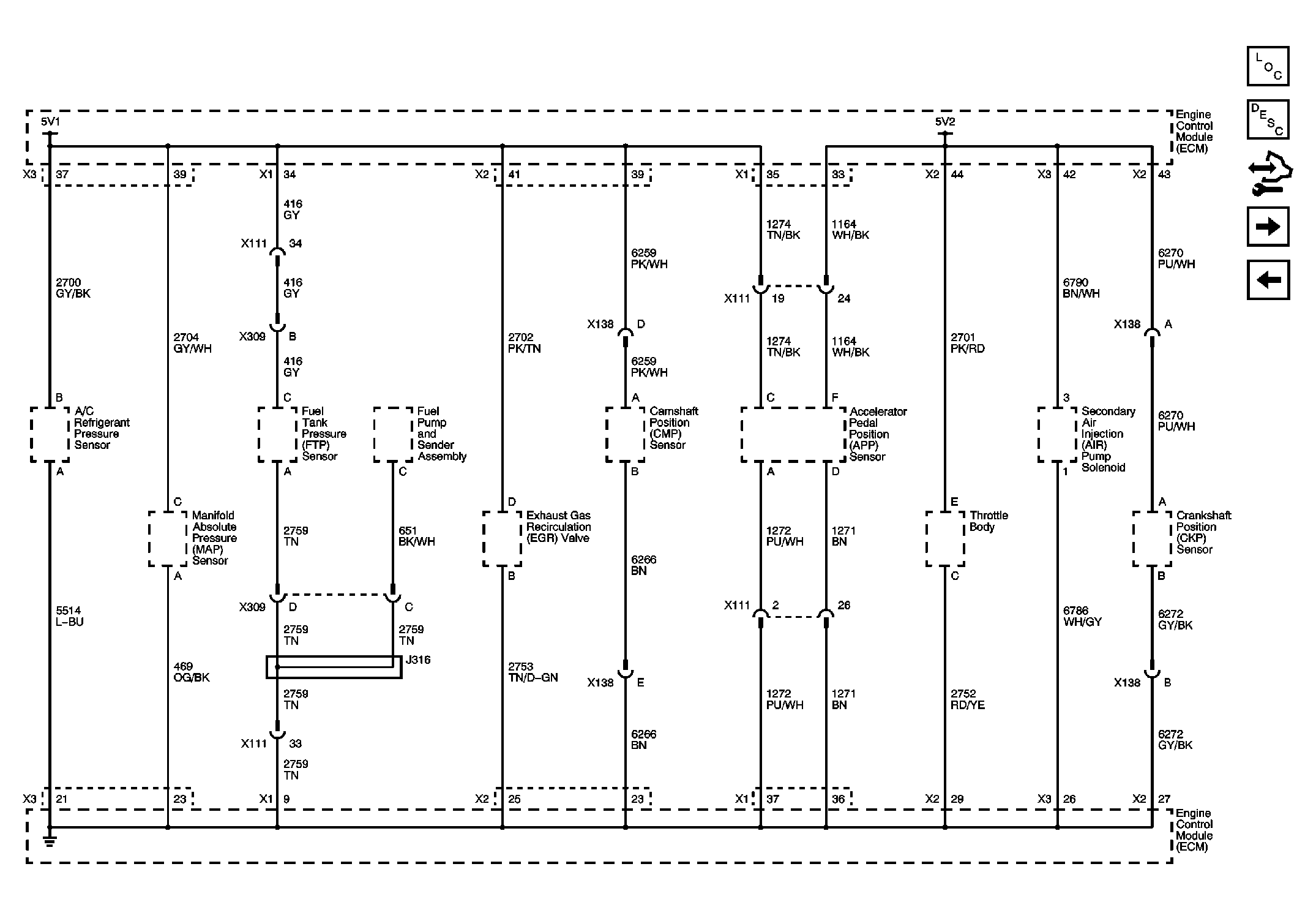

Fig 1: 5V1, 5V2, and Low Reference Bus Wiring Schematic
GM2398450Courtesy of GENERAL MOTORS COMPANY
