Air Suspension Wiring Schematics: F38

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

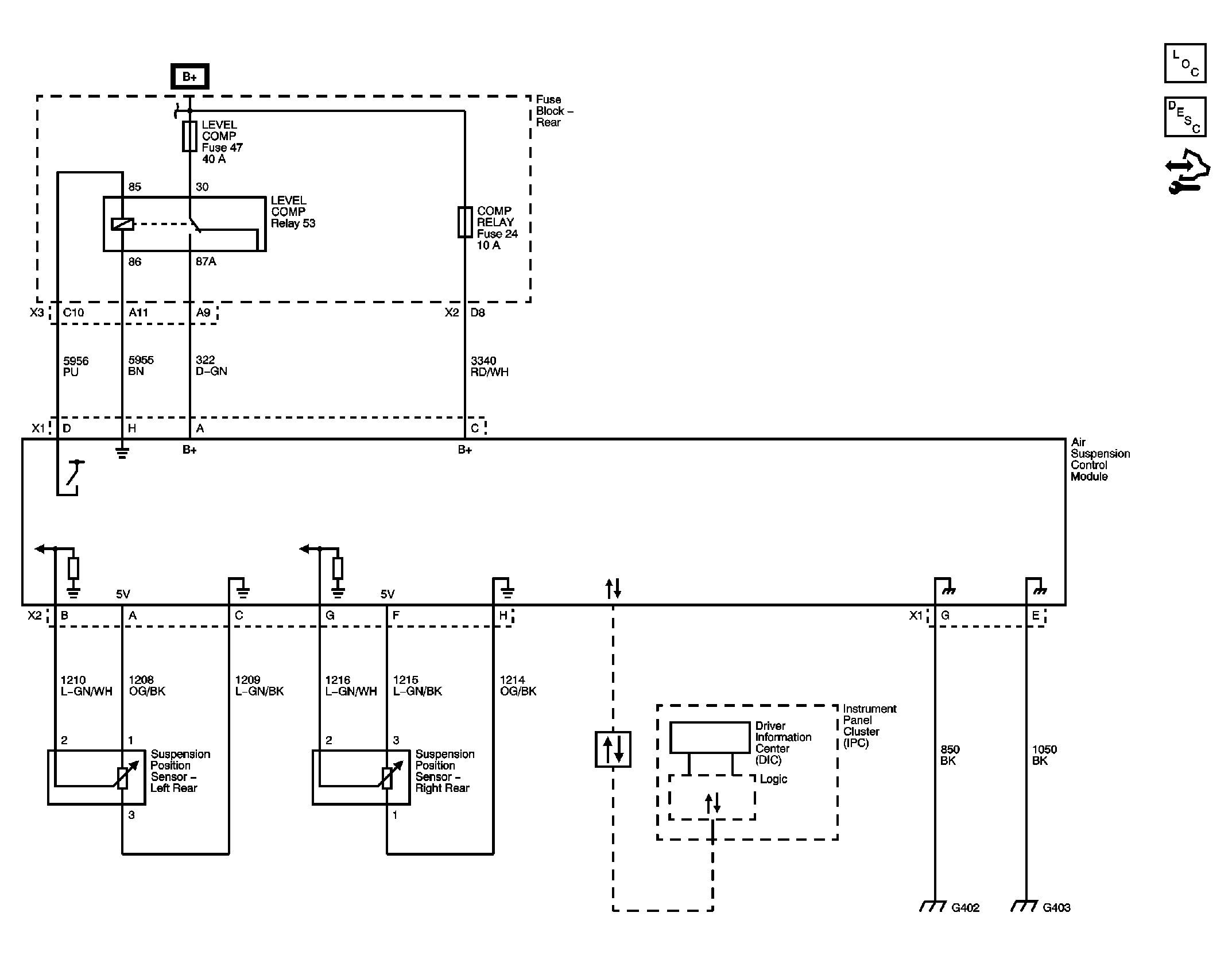

Fig 1: Air Suspension Wiring Schematic (ASCM)
GM2399133Courtesy of GENERAL MOTORS COMPANY
